Запчасти Case IH V-800 (B-23) - FUEL INJECTION PUMP, GOVERNOR ANEROID

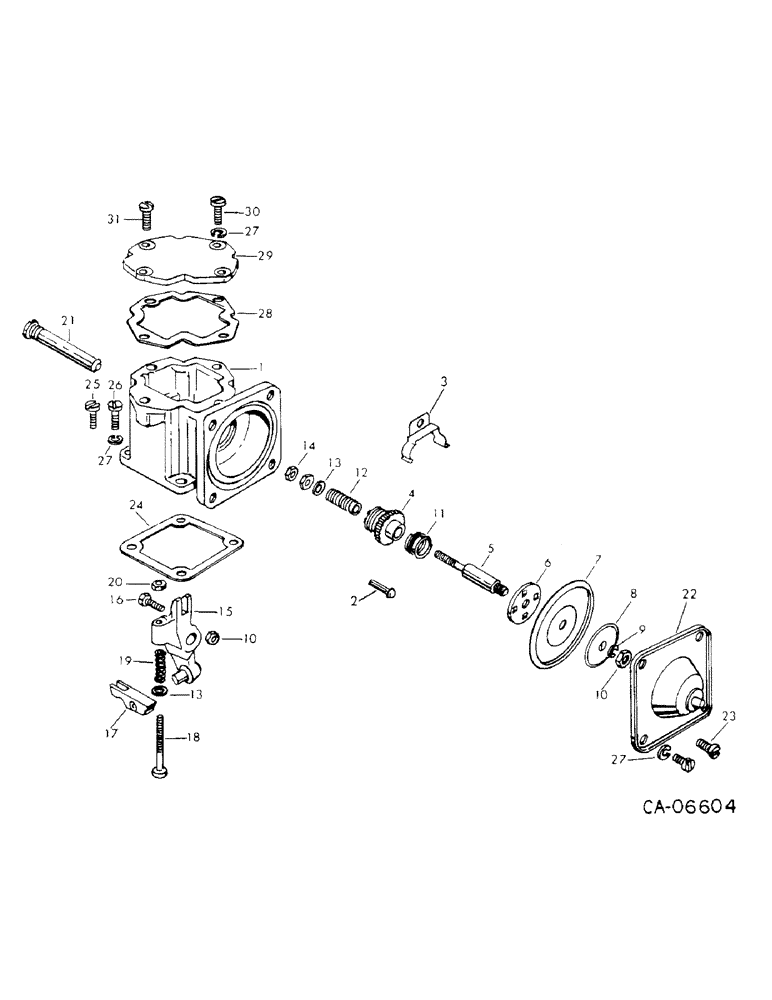

Схема запчастей Case IH V-800 - (B-23) - FUEL INJECTION PUMP, GOVERNOR ANEROID
11
16
13
25
12
27
17
18
20
28
10
4
2
13
31
29
22
21
9
1
24
19
27
14
26
10
8
27
23
6
3
15
30
5
7

Артикул

Название

Примечание

Количество

1

684852C1

HOUSING

aneroid

1шт.

2

684865C1

AXLE PIN

PIN, notched

1шт.

3

684850C1

CLIP

1шт.

4

684818C1

BUSHING

guide

1шт.

5

684837C1

BOLT (SPREADER)

BOLT, diaphragm

1шт.

6

684817C1

SEAT, spring upper

1шт.

7

684819C1

DIAPHRAGM

1шт.

8

684821C1

WASHER

diaphragm

1шт.

9

684864C1

WASHER

bolt lock

1шт.

10

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

diaphragm screw

1шт.

11

684847C1

SPRING, diaphragm return

1шт.

12

684843C1

SPRING, anti-lash

1шт.

13

934055R1

WASHER,M6.4

2шт.

14

933985R1

JAM NUT

lock

2шт.

15

684832C1

LINK, sliding

1шт.

16

684840C1

BOLT (SPREADER),Hex, M5 x 16mm

SCREW

1шт.

17

684835C1

PLATE, stop, For pump assy, 684502C91

1шт.

17

684991C1

PLATE, stop, For pump assy, 684990C92

1шт.

18

684842C1

BOLT (SPREADER)

SCREW, stop plate pivot

1шт.

19

684844C1

VALVE SPRING

SPRING, stop plate position

1шт.

20

625559C1

NUT

round

1шт.

21

684841C1

BOLT (SPREADER)

BOLT, sliding link

1шт.

22

684820C1

COVER ASSY

COVER, diaphragm

1шт.

23

684858C1

SCREW

diaphragm cover

2шт.

23

684839C1

SCREW

diaphragm cover, Drilled head

2шт.

24

684823C1

GASKET

housing

1шт.

25

684800C1

BOLT (SPREADER),Cheese, M5 x 16mm, Cl 5.8

SCREW, aneroid housing

2шт.

406409C1

SPACER, housing screw

2шт.

26

684856C1

BOLT (SPREADER),M5 x 0.8 x 25mm

SCREW, aneroid housing

2шт.

27

103319

LOCK WASHER,1/4"

WASHER, LOCK, , Housing 1/4"

4шт.

28

684824C1

GASKET

top cover

1шт.

29

684826C1

COVER ASSY

COVER, aneroid top

1шт.

30

684800C1

BOLT (SPREADER),Cheese, M5 x 16mm, Cl 5.8

SCREW, cover, Drilled head

1шт.

31

684732C1

SCREW

top cover

2шт.

31

425992C1

SCREW, top cover

1шт.

Выбрано товаров: 35
