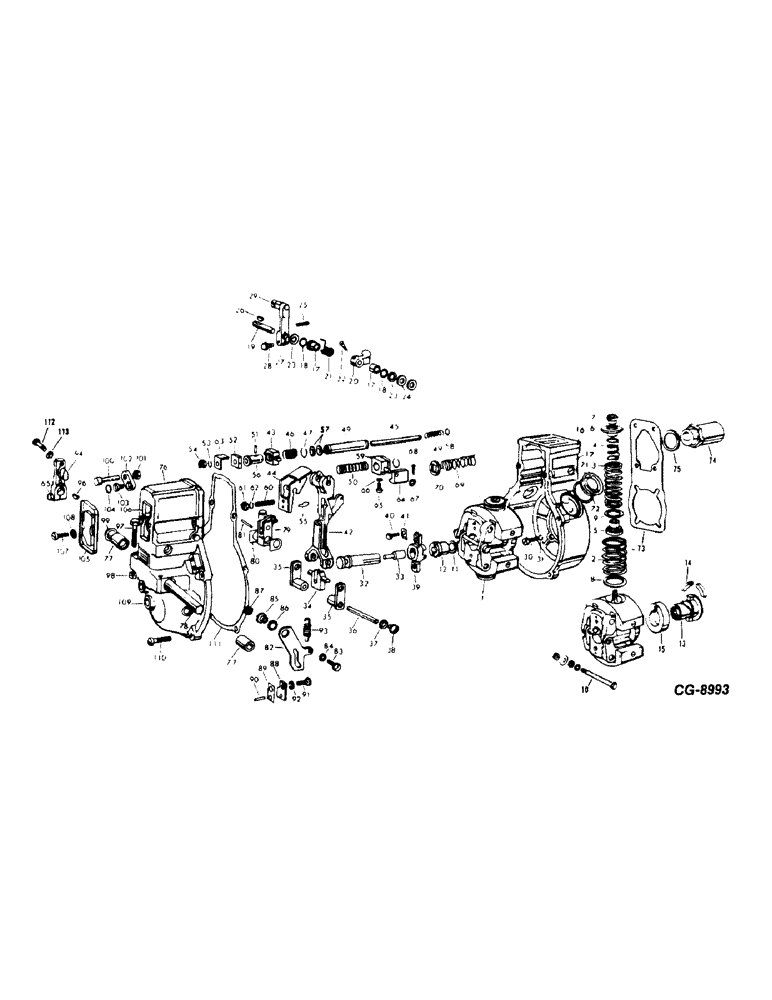

Запчасти Case IH V-800 (B-20) - FUEL INJECTION PUMP, GOVERNOR, MODEL RQV...K

1

1802056C91

FLYWEIGHT ASSY, governor, Replaces 684088C91, Composed of Ref. 1A - 1F (Not Illustrated)

1шт.

1a

397643C1

BOLT

1шт.

1b

397682C1

BUFFER

4шт.

1c

1802061C1

HUB

1шт.

1d

397679C1

NUT

1шт.

1e

684108C1

RETAINER

1шт.

1f

397688C1

SHIM

1шт.

2

684872C1

VALVE SPRING

SPRING, idling outer

2шт.

3

397764C1

SPRING, speed center

2шт.

4

684884C1

VALVE SPRING

SPRING, speed inner

2шт.

5

684092C1

SEAT

inner spring, 3.45 MM, Used w/pump 684505C91, No longer available

1шт.

5

684093C1

SEAT

inner spring, 3.60 MM, Used w/pump 684505C91, No longer available

1шт.

5

684094C1

SEAT

inner spring, 3.75 MM, Used w/pump 684505C91, No longer available

1шт.

5

691084C1

SEAT, inner spring, 2.95 MM, Used w/pump 684502C92

1шт.

5

691085C1

SEAT, inner spring, 3.10 MM, Used w/pump 684502C92

1шт.

5

691086C1

SEAT, inner spring, 3.00 MM, Used w/pump 684502C92

1шт.

5

691087C1

SEAT, inner spring, 3.60 MM, Used w/pump 684502C92

1шт.

6

1802309C1

SEAT, outer spring, Replaces 397641C1 and 1802062C1 by also ordering nut, 1802310C1

1шт.

7

1802310C1

NUT, flyweight shaft, Replaces 397642C1 and 1802063C1 by also ordering seat, 1802309C1

1шт.

8

397769C1

WASHER, center spring, 0.5 MM

6шт.

9

397771C1

SHIM, idling spring

2шт.

10

397643C1

BOLT ASSY, complete weight

1шт.

11

397668C1

SHIM, nut, 1.6 MM

1шт.

11

397669C1

SHIM, nut, 1.65 MM

1шт.

11

397670C1

SHIM, nut, 1.70 MM

1шт.

11

397671C1

SHIM, nut, 1.75 MM

1шт.

11

397672C1

SHIM, nut, 1.80 MM

1шт.

11

397673C1

SHIM, nut, 1.85 MM

1шт.

11

397674C1

SHIM, nut, 1.90 MM

1шт.

11

397675C1

SHIM, nut, 1.95 MM

1шт.

11

397676C1

SHIM, nut, 2.00 MM

1шт.

11

397677C1

SHIM, nut, 2.05 MM

1шт.

11

397678C1

SHIM, nut, 2.10 MM

1шт.

12

397679C1

NUT, drive shaft

1шт.

13

1802061C1

HUB, drive, Replaces 397680C1

1шт.

14

397682C1

BUFFER, drive coupling

4шт.

15

684108C1

RETAINER

buffer

1шт.

16

691079C91

HOUSING ASSY, governor weight, Replaces 684851C91, Consists of Ref. 16A - 16L (Not Illustrated)

1шт.

16a

691080C91

HOUSING

1шт.

16b

691081C1

BUSHING

2шт.

16c

397695C1

KEY NG

2шт.

16d

684909C91

LEVER

1шт.

16e

684831C1

LEVER

1шт.

16f

397694C1

PIN

2шт.

16g

397691C1

SEAL ASSY.

SEAL

2шт.

16h

397689C1

SCREW

1шт.

16i

691082C1

SHAFT

1шт.

16j

397693C1

SHIM

1шт.

16k

684849C1

VALVE SPRING

SPRING

1шт.

16l

691083C1

WASHER

2шт.

16

691080C91

HOUSING, w/two bushing 691081C1

1шт.

17

684109C1

BUSHING

Used w/housing assy, 684851C91

1шт.

17

691081C1

BUSHING, Used w/housing assy, 691079C91 or 691080C91

1шт.

18

1802048C1

SEAL

shaft, Replaces 397691C1

1шт.

19

397687C1

SHAFT, shut-off lever, Used w/housing assy 684851C91

1шт.

19

691082C1

SHAFT, shut-off lever, Used w/housing assy 691079C91

1шт.

20

684831C1

LEVER, shut-off shaft

1шт.

21

684849C1

VALVE SPRING

SPRING, shaft return

1шт.

22

397689C1

SCREW, lever set

1шт.

23

684863C1

WASHER, Used w/housing assy 684851C91

1шт.

23

691083C1

WASHER, Used w/housing assy 691079C91

1шт.

24

397693C1

SHIM

1шт.

25

1802049C1

PIN

cotter, Replaces 397694C1

2шт.

26

397695C1

KEY, Woodruff

1шт.

27

684909C91

LEVER ASSY, shut-off, Replaces 684120C91

1шт.

28

684121C1

BOLT, hex-hd

1шт.

29

397697C1

BOLT

shut-off lever

1шт.

30

3079353R1

SCREW

governor weight, Replaces 684100C1

8шт.

31

103319

LOCK WASHER,1/4"

WASHER, LOCK, , Housing 1/4"

8шт.

32

684796C1

AXLE PIN

PIN, adjusting

1шт.

33

684802C1

AXLE PIN

PIN, threaded

1шт.

34

684790C1

SLIPPER

BLOCK, sliding

1шт.

35

684788C1

LEVER, pivot

2шт.

36

684794C1

SHAFT

pivot lever

1шт.

37

3053133R1

SEALING RING,M8 x 11.5 x 1

GASKET, shaft plug

2шт.

38

684801C1

PLUG

pivot lever shaft

2шт.

39

397703C1

BUSHING, slider guide

1шт.

40

1802055C1

BOLT,Hex, M6 x 15mm, Gr 8.8

SCREW, guide bushing, Replaces 930045R1

2шт.

41

397705C1

DISC

PLATE, bolt lock

2шт.

42

691088C92

LEVER ASSY, floating, Replaces 684830C91, Consists of Ref. 42A - 42T (Not Illustrated)

1шт.

42a

691089C1

LEVER

1шт.

42b

691090C1

LINK

1шт.

42c

397713C1

NUT

1шт.

42d

625559C1

NUT

1шт.

42e

684797C1

NUT

1шт.

42f

1802031C1

PIN

1шт.

42g

684828C1

LOCK ASSY

PLATE

1шт.

42h

898776H1

RING, snap

1шт.

42i

684776C1

RING

snap

3шт.

42j

684866C1

ROLL

PIN

1шт.

42k

684827C1

SLIDER

1шт.

42l

684803C1

VALVE SPRING

SPRING

1шт.

42m

684804C1

VALVE SPRING

SPRING

1шт.

42n

684806C1

SPRING

1шт.

42o

684845C1

VALVE SPRING

SPRING

1шт.

42p

684798C1

STUD

1шт.

42q

684789C1

SWIVEL

1шт.

42r

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

42s

106498

LOCK WASHER,#12

Washer, Lock, #12

1шт.

42t

1802047C1

WASHER

2шт.

42

691089C1

LEVER

1шт.

43

691090C1

LINK, sliding, Replaces 684791C1

1шт.

44

684789C1

SWIVEL

1шт.

45

1802031C1

PIN, thread, Replaces 684795C1

1шт.

46

684804C1

VALVE SPRING

SPRING

1шт.

47

684776C1

RING

snap

3шт.

48

684822C1

GUIDE

CAPSULE, spring

1шт.

49

684803C1

VALVE SPRING

SPRING

1шт.

50

684845C1

VALVE SPRING

SPRING

1шт.

51

684866C1

ROLL

PIN, roll

1шт.

52

684797C1

NUT, square type

1шт.

53

106498

LOCK WASHER,#12

Washer, Lock, #12

1шт.

54

397713C1

NUT, hex, Replaces 397813C1

1шт.

55

684806C1

SPRING

1шт.

56

NO LONGER REQUIRED

1шт.

57

684775C1

SHIM

Used w/684795C1 only

1шт.

57

1802047C1

WASHER, Used w/pin, 1802031C1

2шт.

58

898776H1

RING, snap, Used w/684795C1 only

1шт.

59

684827C1

SLIDER

Replaces 691091C1

1шт.

60

684798C1

STUD

1шт.

61

625559C1

NUT

round, Replaces 684860C1

1шт.

62

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

63

684828C1

LOCK ASSY

PLATE, lock

1шт.

64

684836C1

BRACKET

1шт.

65

684857C1

SCREW

fillister head

2шт.

66

106498

LOCK WASHER,#12

Washer, Lock, #12

2шт.

67

684862C1

WASHER

slider shaft

1шт.

68

397709C1

PIN

link and shackle cotter, Used w/lever assy 684830C91

1шт.

68

691092C1

CLIP, rack link pin, Used w/lever assy 691088C92

1шт.

69

684885C1

VALVE SPRING

SPRING, rack control

1шт.

70

684105C1

SEAT

spring rack

1шт.

71

397720C1

PLUG, housing

2шт.

72

397721C1

GASKET

housing plug

2шт.

73

625534C1

GASKET

weight housing to pump housing

1шт.

74

670890C1

PLUG, housing

1шт.

75

670891C1

GASKET

housing plug

1шт.

76

691093C91

CASE

HOUSING ASSY, governor cover, Replaces 684853C91, Consists of Ref. 76A - 76X (Not Illustrated)

1шт.

76a

684817C1

BOLT

2шт.

76b

1802042C1

BUSHING

2шт.

76c

684778C1

BUSHING

1шт.

76d

933697R1

SEALING RING,M10 x 13.5 x 1

GASKET

1шт.

76e

932618R1

WOODRUFF KEY,3mm x 5mm x 12.65mm

KEY

2шт.

76f

691096C91

LEVER

ASM

2шт.

76g

691094C91

LEVER

1шт.

76h

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

76i

933985R1

JAM NUT

1шт.

76j

684861C1

NUT

1шт.

76k

397777C1

PIN

2шт.

76l

397731C1

PIN

2шт.

76m

397730C1

PLATE

1шт.

76n

684787C1

STOP

PLATE

1шт.

76o

625565C1

PLUG

1шт.

76p

397751C1

SCREW

1шт.

76q

684115C1

BOLT (SPREADER),M5 x 0.8 x 14mm

SCREW

1шт.

76r

3079353R1

SCREW

1шт.

76s

691097C91

SEAL

2шт.

76t

691095C1

AXLE PIN

SHAFT

1шт.

76u

684807C1

VALVE SPRING

SPRING

1шт.

76v

684825C1

LEVER

TEMPLATE

1шт.

76w

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

76x

933696C1

WASHER

1шт.

77

1802042C1

BUSHING

control shaft

2шт.

78

691095C1

AXLE PIN

SHAFT, control lever, Replaces 684793C1

1шт.

79

691094C91

LEVER

guide, Replaces 684792C1

1шт.

80

397730C1

PLATE, thrust

1шт.

80

684782C1

PLATE ASSY.

PLATE, thrust

1шт.

81

397731C1

PIN, guide lever

2шт.

82

684825C1

LEVER

TEMPLATE, curve

1шт.

83

3079353R1

SCREW

fillister head

1шт.

84

933696C1

WASHER

1шт.

85

684778C1

BUSHING

1шт.

86

3054873R1

SHIM

0.2 MM

1шт.

86

3055894R1

SHIM

0.3 MM

1шт.

87

684861C1

NUT

stop

1шт.

88

684787C1

STOP

PLATE, stop

1шт.

89

684783C1

SHIM

template, 0.2 MM

1шт.

89

684784C1

SHIM

template, 0.3 MM

1шт.

89

684786C1

SHIM, template, 0.5 MM

1шт.

89

684785C1

SHIM, template, 0.8 MM

1шт.

90

397777C1

PIN, curve template

2шт.

91

1802054C1

SCREW,Hex, M6 x 22mm, Gr 8.8

curve template, Replaces 397778C1

1шт.

92

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

93

684807C1

VALVE SPRING

SPRING

1шт.

94

691096C91

LEVER

ASSY, control, Replaces 684829C91

2шт.

95

684871C1

BOLT (SPREADER),Hex, M6 x 20mm

SCREW, hex-hd

2шт.

96

932618R1

WOODRUFF KEY,3mm x 5mm x 12.65mm

KEY, lever Woodruff

2шт.

97

684115C1

BOLT (SPREADER),M5 x 0.8 x 14mm

SCREW, lever stop

1шт.

98

933985R1

JAM NUT

hex

1шт.

99

691300C91

SEAL, shaft, Replaces 397737C91 and 691097C91

2шт.

100

397751C1

SCREW

stop

1шт.

101

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

lever stop screw

1шт.

102

1802064C1

CAP, seal, Replaces 397753C1

1шт.

103

684858C1

SCREW

link

1шт.

104

397755C1

PLUG, sealing

1шт.

105

684780C1

COVER ASSY

COVER, governor rear

1шт.

106

684777C1

GASKET

rear cover

1шт.

107

684838C1

SCREW

rear cover

2шт.

108

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109

685855C1

BUSHING, rear

1шт.

110

931113C1

SCREW, fillister head, Replaces 691301C1

5шт.

110

684799C1

SCREW

fillister head w/hole

1шт.

111

684781C1

GASKET

weight housing to governor housing

1шт.

112

625544C1

SCREW

hex

2шт.

113

680201C1

WASHER

lock

2шт.
