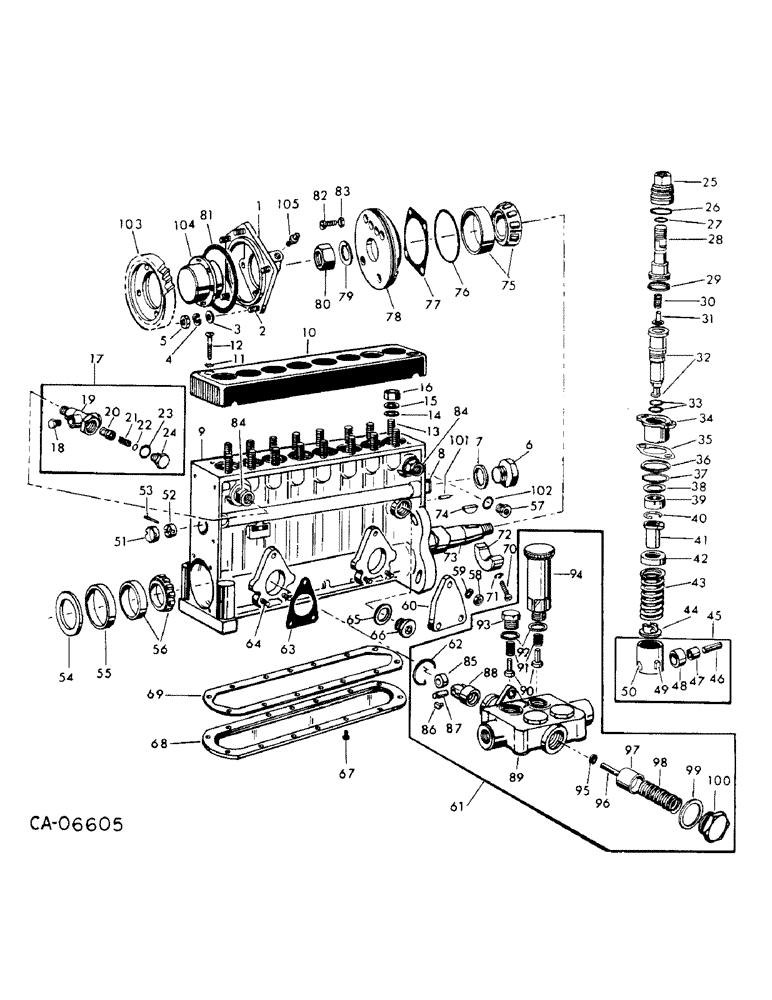

Запчасти Case IH V-800 (B-17) - FUEL INJECTION PUMP, PUMP HOUSING AND RELATED PARTS

684502C91

PUMP ASSY, fuel injection, 4568 and 4586 tractors, Order renewed pump, 749015C91

1шт.

749015C91

PUMP

ASSY, fuel injection, Renewed

1шт.

684990C92

PUMP ASSY, fuel injection, 4786 tractors, Order renewed pump, 749118C91

1шт.

749118C91

REMAN-INJECTION PUMP

PUMP ASSY, fuel injection, Renewed

1шт.

1

684508C91

ADAPTER W/PLUG, 24717R1 and four studs, 67722831, pump

1шт.

24717R1

PLUG,Cup, 1 7/16"

1-7/16 cup

1шт.

687080C1

WASHER

adapter bolt

6шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

6шт.

2

677228C1

STUD

mounting

4шт.

3

95-11041

WASHER,3/8"

.406 x .812 x .051 stud

4шт.

4

115093

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

25523R1

NUT,3/8"-24, G8

3/8-24 phc hex. stud

4шт.

6

670890C1

PLUG, rack adjustment

1шт.

7

670891C1

GASKET

adjustment plug

1шт.

8

687021C1

SHAFT

RACK, plunger control

1шт.

9

691426C91

HOUSING W/POINTER, 684881C1, pump body, w/6.7 MM plunger spacer recess, Together w/eight spacer 691430C1 will work for housing 684873C91 w/5.0 MM plunger

1шт.

10

684809C1

COVER ASSY

COVER, housing top

1шт.

11

138606

WASHER

1/4 phc csk ext, tooth lock, Top cover screw

2шт.

12

625503C1

SCREW

top cover

2шт.

13

687458C1

STUD, mounting, Replaces 625505C1

16шт.

14

680131C1

WASHER

stud

16шт.

15

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

16

625507C1

JAM NUT

stud

16шт.

17

670889C91

TEE

VALVE ASSY, check

1шт.

18

625601C1

PLUG

check valve

1шт.

19

NSS

NOT SOLD SEPARAT

BODY, valve, Not serviced separately, Order valve assy, 670889C91

1шт.

20

NSS

NOT SOLD SEPARAT

PISTON, valve, Not serviced separately, Order valve assy, 670889C91

1шт.

21

625598C1

VALVE SPRING

SPRING, piston

1шт.

22

625600C1

WASHER

0.3 MM thick

1шт.

23

933610R1

SEALING RING,M14 x 18 x 1.8

Piston plug M14 x 18 x 1.8

1шт.

24

625599C1

PLUG

piston

1шт.

25

625499C1

CAP, delivery valve holder

8шт.

26

625497C1

O-RING,22mm ID x 2mm Width

O-RING, 55/64 x 1-1/64 x 5/64

8шт.

27

625495C1

RING

O-RING, 25/64 x 35/64 x 5/64, Delivery valve holder

8шт.

28

625500C1

NOZZLE HOLDER

HOLDER, delivery valve

8шт.

29

625498C1

O-RING

GASKET, delivery valve holder

8шт.

30

627162C1

VALVE SPRING

SPRING, delivery valve

8шт.

31

625494C1

LOCK VALVE

VALVE, delivery

8шт.

32

684815C1

PLUNGER

AND BARREL ASSY

8шт.

33

625492C1

RING

O-RING, plunger and barrel

16шт.

34

625490C2

SLEEVE, plunger mounting

8шт.

34

691427C1

SLEEVE, plunger mounting, Used w/split shims w/housing 691426C91

8шт.

35

625484C1

SHIM

0.15 MM, As required, No longer available

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

625485C1

SHIM

0.40 MM, As required, No longer available

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

625486C1

SHIM

0.50 MM, As required, No longer available

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

625487C1

SHIM

0.60 MM, As required, No longer available

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

625488C1

SHIM, 0.70 MM, As required, No longer available

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

625489C1

SHIM

0.80 MM, As required, No longer available

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

687338C1

SHIM

0.40 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691433C1

SHIM, 0.45 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

687339C1

SHIM

0.50 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691434C1

SHIM, 0.55 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

687340C1

SHIM, 0.60 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691435C1

SHIM, 0.65 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

687341C1

SHIM

0.70 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691436C1

SHIM, 0.75 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

687342C1

SHIM

0.80 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691437C1

SHIM, 0.85 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691438C1

SHIM, 0.90 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691439C1

SHIM, 0.95 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691440C1

SHIM, 1.00 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691441C1

SHIM, 1.05 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691442C1

SHIM, 1.10 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691443C1

SHIM, 1.15 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691444C1

SHIM, 1.20 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691445C1

SHIM, 1.25 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691446C1

SHIM, 1.30 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691447C1

SHIM, 1.35 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691448C1

SHIM, 1.40 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691449C1

SHIM, 1.45 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691450C1

SHIM, 1.50 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691451C1

SHIM, 1.55 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691452C1

SHIM, 1.60 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691453C1

SHIM, 1.65 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691454C1

SHIM, 1.70 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691455C1

SHIM, 1.75 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691456C1

SHIM, 1.80 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691457C1

SHIM, 1.85 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691458C1

SHIM, 1.90 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691459C1

SHIM, 1.95 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691460C1

SHIM, 2.00 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691461C1

SHIM, 2.05 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691462C1

SHIM, 2.10 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691463C1

SHIM, 2.15 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691464C1

SHIM, 2.20 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691465C1

SHIM, 2.25 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691466C1

O-RING

SHIM, 2.30 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691467C1

SHIM, 2.35 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691468C1

SHIM, 2.40 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691469C1

SHIM, 2.45 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

35

691470C1

SHIM, 2.50 MM, As required

1шт.

# Used w/sleeve 625490C2 + Used w/sleeve 691427C1

1шт.

36

691429C1

SPACER, plunger mounting sleeve, 2.5 MM, Replaces 625482C1 when used w/housing, 684873C1 and sleeve, 625490C2 and single piece shims

1шт.

36

691430C1

SPACER, plunger mounting sleeve, 4.2 MM, Replaces 625482C1 when used w/housing 691426C91 and sleeve 625490C2 and single piece shims

1шт.

36

691428C1

SPACER

plunger mounting sleeve, 4.7 MM, Used w/housing 691426C1 and 691427C1 and split shims

1шт.

37

625483C1

OIL SEAL

O-RING, 1-1/16 x 1-1/4 x 5/64, Plunger mounting sleeve

8шт.

38

625491C1

WASHER, impact cap

8шт.

39

625480C1

CYLINDER END CAP

CAP, impact

8шт.

40

625481C1

RING

snap

8шт.

41

625479C1

SLEEVE CYLINDER

SLEEVE, control

8шт.

42

625478C1

SEAT

upper spring

8шт.

43

680129C1

VALVE SPRING

SPRING, tappet roller

8шт.

44

684589C2

SEAT

lower spring, Replaces 625476C1

8шт.

45

684816C91

TAPPET

ASSY

8шт.

46

NSS

NOT SOLD SEPARAT

PIN, roller, Not serviced separately, Order tappet assy, 684816C91

1шт.

47

NSS

NOT SOLD SEPARAT

BUSHING, Not serviced separately, Order tappet assy, 684816C91

1шт.

48

NSS

NOT SOLD SEPARAT

ROLLER, Not serviced separately, Order tappet assy, 684816C91

1шт.

49

NSS

NOT SOLD SEPARAT

BLOCK, Not serviced separately, Order tappet assy, 684816C91

1шт.

50

NSS

NOT SOLD SEPARAT

TAPPET, Not serviced separately, Order tappet assy, 684816C91

1шт.

51

625514C1

HITCH PIN

RETAINER, rack guide

1шт.

52

625513C1

GUIDE

rack

2шт.

53

625512C1

AXLE PIN

PIN, rack stop

1шт.

54

625528C1

SHIM

rear bearing, 1.2 MM

1шт.

54

625529C1

SHIM

rear bearing, 1.5 MM

1шт.

54

625530C1

SHIM, rear bearing, 1.8 MM

1шт.

54

625531C1

SHIM

rear bearing, 2.0 MM

1шт.

55

625532C2

SPACER

rear bearing

1шт.

56

625527C91

BEARING

ASSY, camshaft rear

1шт.

57

933689R1

PLUG,Hex Soc, M10 x 1

tappet, camshaft removal

8шт.

58

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

mounting stud

6шт.

59

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

60

684969C1

COVER ASSY

COVER, housing side

1шт.

61

684490C91

PUMP

ASSY, fuel supply

1шт.

62

684725C1

RING

snap

1шт.

63

678004C1

GASKET

cover and supply pump

2шт.

64

397624C1

STUD

cover mounting

6шт.

65

670891C1

GASKET

plug

1шт.

66

678005C1

PLUG, inspection, No. 1 tappet

1шт.

67

931117R1

SCREW, bottom cover

14шт.

68

684813C1

COVER ASSY

COVER, bottom

1шт.

69

684810C1

GASKET

bottom cover

1шт.

70

625517C1

SCREW, camshaft center support

2шт.

71

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

72

625516C1

SUPPORT ASSY.

SUPPORT, camshaft center

1шт.

73

684814C1

CAMSHAFT

1шт.

74

3056409R1

KEY

camshaft

1шт.

75

625527C91

BEARING

ASSY, camshaft front

1шт.

76

625519C1

O-RING

O-RING, front bearing housing, small

1шт.

77

625520C1

SHIM

front bearing housing, 0.1 MM

1шт.

77

625521C1

SHIM, front bearing housing, 0.12 MM

1шт.

77

625522C1

SHIM

front bearing housing, 0.14 MM

1шт.

77

625523C1

SHIM

front bearing housing, 0.16 MM

1шт.

77

625524C1

SHIM

front bearing housing, 0.18 MM

1шт.

77

625525C1

SHIM

front bearing housing, 0.3 MM

1шт.

77

625526C1

SHIM

front bearing housing, 0.5 MM

1шт.

78

684812C1

HOUSING, front bearing

1шт.

79

670658C1

WASHER

pump drive gear lock

1шт.

80

670657C1

NUT

pump drive gear

1шт.

81

670875C1

O-RING,88mm ID x 3mm Width

front bearing housing, large

1шт.

82

687296C1

SCREW, front bearing housing

4шт.

83

687297C1

SPACER, front bearing housing screw

4шт.

84

1806379C1

FITTING

housing, Replaces 625924C1

2шт.

397630C1

PACKING RING

GASKET, housing fitting

2шт.

85

NSS

NOT SOLD SEPARAT

ROLLER, Not serviced separately, Order tappet assy, 684724C91

1шт.

86

NSS

NOT SOLD SEPARAT

PIN, roller, Not serviced separately, Order tappet assy, 684724C91

1шт.

87

NSS

NOT SOLD SEPARAT

LOCK, pin, Not serviced separately, Order tappet assy, 684724C91

1шт.

88

684724C91

TAPPET

ASSY, roller

1шт.

89

NSS

NOT SOLD SEPARAT

HOUSING, pump, Not serviced separately, Order pump assy

1шт.

90

684726C1

LOCK VALVE

VALVE

4шт.

91

760583C1

SPRING, valve

4шт.

92

625550C1

WASHER

GASKET, top plug

4шт.

93

680488C1

PLUG

screw

3шт.

94

684492C93

PUMP

W/GASKET, 687162C1, hand priming

1шт.

687162C1

GASKET

hand priming pump

1шт.

95

691272C1

GASKET

O-RING, spindle, Replaces 684723C1

1шт.

96

NSS

NOT SOLD SEPARAT

SPINDLE, pressure, Not serviced separately, Order pump assy

1шт.

97

NSS

NOT SOLD SEPARAT

PLUNGER, pump, Not serviced separately, Order pump assy

1шт.

98

680489C1

VALVE SPRING

SPRING, plunger return

1шт.

99

670882C1

GASKET

side plug

1шт.

100

670881C1

AXLE PIN

PLUG, screw

1шт.

101

684881C1

INDICATOR

POINTER, timing

1шт.

102

933697R1

SEALING RING,M10 x 13.5 x 1

GASKET, plug

8шт.

103

671012C1

GEAR, injection pump drive, 62 teeth

1шт.

104

676691C92

ADJUSTER

ASSY, timing

1шт.

615492C1

SEAL, timing pin, Replaces 352219R1

1шт.

680261C1

PLUG

timing unit, Included in adjuster 676691C92

1шт.

670888C1

GASKET

timing unit plug, Included in adjuster 676691C92

1шт.

105

217-470

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG, 3/4-14 znp auto. sq-soc pipe

1шт.
