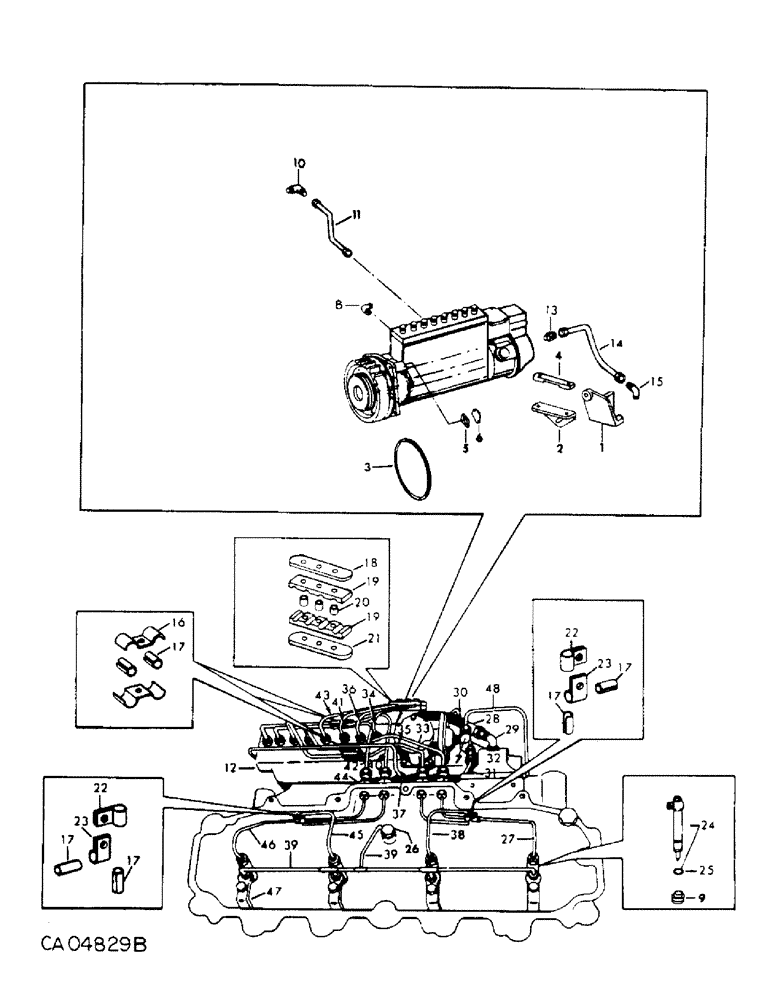

Запчасти Case IH V-800 (B-14) - FUEL INJECTION PUMP AND CONNECTIONS

1

682194C1

BRACKET, fixed rear support

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

2шт.

115093

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

682214C1

BRACKET, adjustable rear support

1шт.

25501R1

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 8

3/8 x 3-3/4 phc type 8

2шт.

Q1597

WASHER

.406 x .734 x .056 pln

2шт.

115093

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

22421R1

O-RING,0.139" Thk x 8.484" ID, -268, Cl 5, 75 Duro

8-1/2 x 8-3/4 x 1/8

1шт.

4

682215C1

PLATE, nut

1шт.

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

116121

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

16038R1

WASHER

.531 x 1.000 x .105 pln

1шт.

5

682111C1

GASKET

injection pump adapter cover plate

1шт.

6

682110C1

PLATE, injection pump adapter cover

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW, 3/8-16 x 3/4 phc hex-hd cap

2шт.

25543R1

WASHER,.344" x 11/16" x .098", HDN

11/32 x 11/16 x .098 phc hardened

2шт.

7

685983C1

ELBOW, 45 deg 1/4 OD flex

1шт.

8

672674C1

TEE, lube oil, Serial Range: supply-pump

1шт.

672750C1

PLUG, lube oil fitting

1шт.

9

682810C1

RING

GROMMET, injector dust seal

8шт.

10

606296C1

90 ELBOW

1/4 x 1/4 x 90 male, In lube filter mounting base

1шт.

11

684039C91

TUBE ASSY, lube oil supply to injection pump

1шт.

915499R1

TUBE NUT

NUT, 1/4 OD tube

2шт.

685158C1

SLEEVE

tube

2шт.

12

NLS

NO LONGER SERVICED

PUMP ASSY, fuel injection, 684502C91, 4568 and 4586 tractors, Order renewed pump, 749015C91, For components see list of parts under details of fuel injection pump

1шт.

12

749015C91

PUMP

ASSY, fuel injection, Renewed, 4568 and 4586 tractors

1шт.

12

NLS

NO LONGER SERVICED

PUMP ASSY, fuel injection, 684990C91, 4786 tractors, Order renewed pump, 749118C91, For components see list of parts under details of fuel injection pump

1шт.

12

749118C91

REMAN-INJECTION PUMP

PUMP ASSY, fuel injection, Renewed, 4786 tractors

1шт.

678026C1

ELECTRICAL WIRE

WIRE, injection pump lock

2шт.

687459C1

ELECTRICAL WIRE

LOCK, injection pump wire seal

2шт.

674339C1

STRIPPER PACKAGE

CAPSULE, torque

1шт.

26312R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 phc p/t type 8

3шт.

673607C1

SCREW

BOLT, 3/8-16 x 1-12 point head

2шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 phc hdn

5шт.

13

606819C1

CONNECTOR, ELEC

CONNECTOR, oil drain tube

1шт.

14

684041C91

TUBE,0.375" OD, 10" Length

ASSY, injection pump lube oil drain

1шт.

265204R1

SLEEVE

NUT

2шт.

265205R1

TUBE NUT,0.531" Length

SLEEVE

2шт.

15

606845C1

ELBOW

oil drain tube, In tappet access cover

1шт.

16

673527C1

CLAMP

ASSY, injection pipe

4шт.

25222R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

SCREW, 1/4-20 x 3/4 phc hex-hd cap

2шт.

684548C1

NUT

1/4-20 Tinnerman J

2шт.

17

671114C1

SLEEVE

injection pipe clip

12шт.

18

264143R1

PLATE ASSY.

CLAMP, injection line

1шт.

26258R1

BOLT,Hex, 1/4" - 28 x 1 1/4", Gr 8

SCREW, 1/4-28 x 1-1/4 phc hex-hd cap

3шт.

25532R1

WASHER

9/32 x 5/8 x .065 phc hardened

3шт.

19

670106C1

PAD

injection line clamp

2шт.

20

670107C1

SPACER, injection line clamp

3шт.

21

264712R1

PLATE ASSY.

BRACKET, injection line

1шт.

22

66360D

CLIP, injection pipe

4шт.

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

25534R1

WASHER

13/32 x 13/16 x .065 phc hardened

4шт.

23

66360D

CLIP, injection pipe

4шт.

24

NOZZLE AND HOLDER ASSY, injection, For components see list of parts under details of injection nozzle

8шт.

25

675477C1

GASKET

injection nozzle

8шт.

26

671128C1

VALVE

ASSY, check, Engine serial no. 4201 and below

2шт.

26

606885C1

CONNECTOR, ELEC

BODY, 1/4 flex tube, Engine serial no. 4202 and above

2шт.

27

684680C1

PIPE

nos 2 and 7 injection, Nozzle end

2шт.

28

684425C1

HOSE

ASSY, fuel return, 3/8 ID x 10-1/2 in. long

1шт.

29

682805C1

ELBOW W/ORIFICE, 90 deg

1шт.

30

610713C1

TEE

fuel return

1шт.

31

684044C91

PIPE ASSY, leaf-off, LH to leak-off manifold, Engines w/serial number 4201 and below

1шт.

31

687328C91

PIPE ASSY, leak-off, LH to leak-off manifold, Engines w/serial number 4202 and above

1шт.

32

684043C92

PIPE

ASSY, leak-off, RH to leak-off manifold

1шт.

33

671101C1

PIPE

No. 7 injection

1шт.

34

671102C1

PIPE

No. 8 injection

1шт.

35

671099C1

PIPE CLAMP

PIPE, No. 5 injection

1шт.

36

671100C1

PIPE CLAMP

PIPE, No. 6 injection

1шт.

37

687300C1

TEE, fuel return check valve, Replaces 610713C91 by also ordering connector, 606885C1 pipe, 687328C91 and pipe, 684043C92

1шт.

38

684682C1

PIPE

nos 4 and 5 injection, Nozzle end

2шт.

39

685304C1

MANIFOLD

ASSY, leak-off

2шт.

685158C1

SLEEVE

tube

11шт.

319615C1

ELBOW, fuel leak-off, In head

2шт.

336980R1

NUT

SLEEVE, hex-hd

8шт.

915499R1

TUBE NUT

NUT, 1/4 OD tube

10шт.

40

671097C1

PIPE CLAMP

PIPE, No. 3 injection

1шт.

41

671098C1

PIPE

No. 4 injection

1шт.

42

671095C1

PIPE

No. 1 injection

1шт.

43

671096C1

PIPE

No. 2 injection

1шт.

44

675884C1

UNION

bulkhead swaged

8шт.

338840R1

GASKET

WASHER, union

8шт.

45

684681C1

PIPE, nos 3 and 6 injection, nozzle end

2шт.

46

684679C1

PIPE CLAMP

PIPE, nos 1 and 8 injection, nozzle end

2шт.

47

682288C1

CRAB, injector

8шт.

21318R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

SCREW, 3/8-16 x 2-1/2 phc hex-hd cap

8шт.

671113C1

WASHER, injector crab

8шт.

48

685985C91

TUBE ASSY, aneroid

1шт.

915499R1

TUBE NUT

NUT, 1/4 OD tube

1шт.

685158C1

SLEEVE

tube

1шт.
