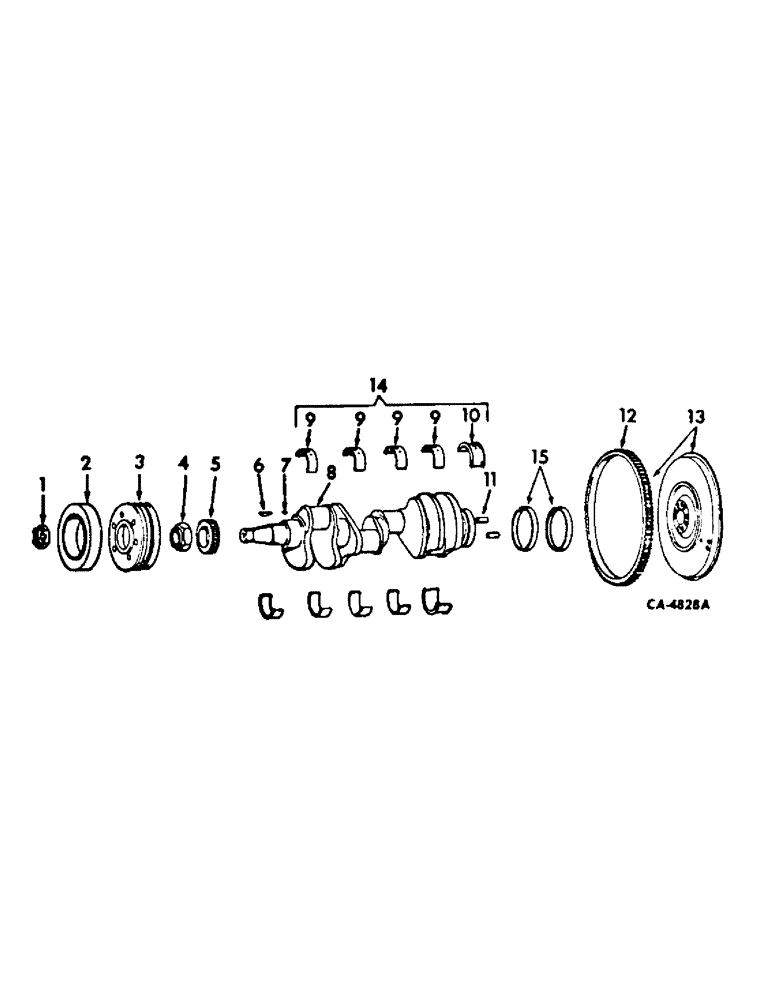

Запчасти Case IH V-800 (B-11) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

612039C2

NUT

1-3/4-16 hex. nylon insert, crankshaft

1шт.

2

683727C3

DAMPER

vibration

1шт.

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

6шт.

682308C1

WASHER, 17/32 x 7/8 x 1/8 hardened

6шт.

3

682095C92

PULLEY

AND HUB ASSY, vibration damper, Includes wear sleeve, 619775C1 and drive screw, 173639

1шт.

4

625359C1

NUT

2-1/2-16 hex, nylon insert, crankshaft gear

1шт.

5

343176R1

GEAR WHEEL

GEAR, crankshaft

1шт.

6

126-148

WOODRUFF KEY,#29, 3/8" x 2 1/8", HT

KEY, 3/8 x 2-1/8 Woodruff no. 29 aly-stl, Used w/crankshaft 684026C92

1шт.

6

670781C1

KEY

Woodruff, .375 x 1.380, Used w/crankshaft 684026C93

1шт.

7

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff B aly-stl, Used w/crankshaft 684026C92

1шт.

7

688751C1

KEY

Woodruff .3125 x .745, Used w/crankshaft 684026C93

1шт.

8

684390C93

CRANKSHAFT

ASSY, Replaces 684390C92, Composed of Ref. 8A - 8I (Not Illustrated)

1шт.

8a

674343C1

BEARING SET

4шт.

8b

674344C2

BEARING SET

1шт.

8c

674365C1

BEARING SET

8шт.

8d

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

8e

19875R1

DOWEL,5/8" x 1 1/2"

PIN

2шт.

8f

50410DA

PLUG

4шт.

8g

688751C1

KEY

1шт.

8h

670781C1

KEY

1шт.

8i

50410DA

PLUG

1/8 pipe

4шт.

9

674343C1

BEARING SET

main, std, 2 halves

4шт.

9

674345C1

BEARING SET

main, .010 U/S, 2 halves

4шт.

9

674349C1

BEARING SET

main, .030 U/S, 2 halves

4шт.

10

674344C2

BEARING SET

rear main thrust, Standard, 2 halves

1шт.

10

674346C1

BEARING SET

BEARING, rear main thrust, .010 U/S, 2 halves

1шт.

10

674350C1

BEARING SET

rear main thrust, .030 U/S, 2 halves

1шт.

11

19875R1

DOWEL,5/8" x 1 1/2"

PIN, 5/8 x 1-1/2 hardened dowel

2шт.

12

278896R1

GEAR WHEEL

GEAR, flywheel ring, 104 teeth

1шт.

REF#12 SHOULD HAVE 118 TEETH 8/19/96

1шт.

13

677638C92

FLYWHEEL ASSY, w/ring gear, 4568 tractors only

1шт.

25852R1

BOLT,5/8" x 1 5/8", Gr 8

SCREW, 5/8-18 x 1-5/8 phc hex-hd cap

6шт.

685904C1

WASHER

21/32 x 1-1/16 x .092 phc hardened

6шт.

13

689106C91

FLYWHEEL

ASSY, w/ring gear, 4586 tractors only

1шт.

13

689254C91

FLYWHEEL

ASSY, w/ring gear, 4786 tractors only

1шт.

688161C2

PLATE

hardened

1шт.

ref# 13a if dlr is looking for a 12 point flange type 5/8-18 X 1-5/8" is p/n 688154c1 cwh 10/1/98

1шт.

688154C1

BOLT,Short Head, 5/8" - 18 x 1 5/8", Type 8

SCREW, 5/8-18 x 1-5/8 phc 12 point flange type 8

10шт.

14

674353C91

BEARING

SET, crankshaft main bearing, Standard

1шт.

14

674355C91

BEARING LINER

SET, crankshaft main bearing, .010 U/S

1шт.

14

674357C91

JOURNAL

SET, crankshaft main bearing, .030 U/S

1шт.

15

691631C91

KIT

PACKAGE, rear oil seal and wear sleeve, Replaces 678529C91 and 678554C91

1шт.
