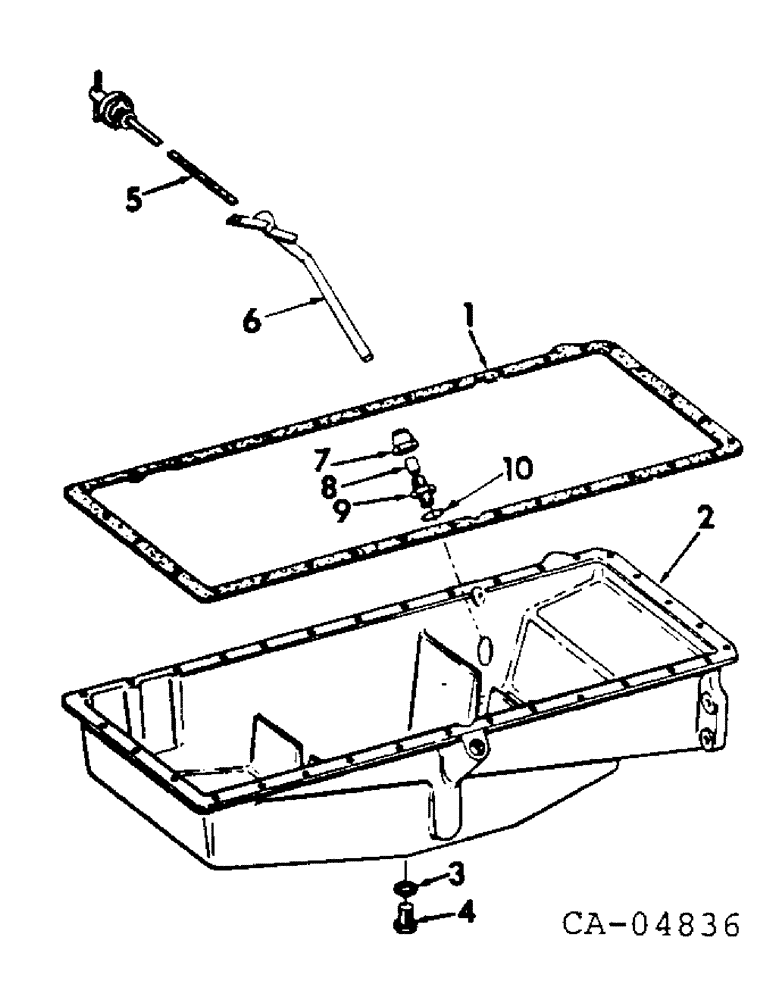

Запчасти Case IH V-800 (B-09) - CRANKCASE OIL PAN

1

337204R3

OIL PAN GASKET SET

crankcase oil pan

1шт.

2

686788C91

PAN ASSY, crankcase oil, Includes ref nos 3 and 4

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

32шт.

25506R1

SCREW

1/2-13 x 1-5/8 phc hex-hd cap

8шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

13/32 x 13/16 x .089 phc hardened

32шт.

25546R1

WASHER,17/32" x 1 1/16" x .188", HDN

17/32 x 1-1/6 x .188 phc hardened

8шт.

3

59658D

WASHER,22.62mm ID x 32.54mm OD x 1.72mm Thk

GASKET, oil pan drain plug

1шт.

4

688067C1

PLUG

oil pan drain

1шт.

5

686977C1

GAUGE

oil level, 4568 tractors only

1шт.

5

689321C1

GAUGE

oil level, 4586 and 4786 tractors

1шт.

6

686971C1

SLEEVE

oil level gauge

1шт.

331194R1

BUSHING, sleeve spacing

1шт.

24870R1

BOLT,Hex, 1/2" - 13 x 5", Gr 8

SCREW, 1/2-13 x 5 phc hex-hd cap

1шт.

677779C1

WASHER

1/2 hardened

1шт.

7

265067R1

NUT

sleeve

1шт.

8

265066R1

O-RING

SLEEVE, sealing

1шт.

9

683531C1

CONNECTOR, ELEC

CONNECTOR

1шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.
