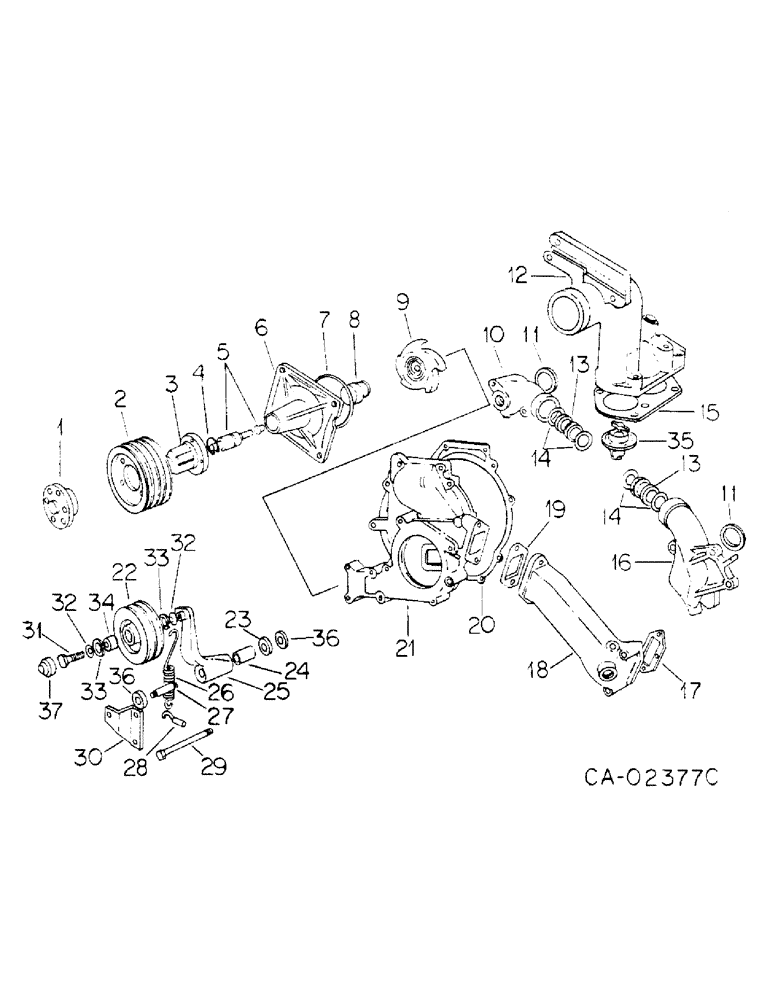

Запчасти Case IH DV-550 (A-05) - THERMOSTAT AND WATER PUMP
№
Артикул
Название
Примечание
Количество
297359C93
PUMP
ASSY, water, Composed of: Parts Listed Below
1шт.
354670C91
BEARING
1шт.
NSS
NOT SOLD SEPARAT
HOUSING
1шт.
283579C1
HUB
(NSS)
1шт.
292511C12
IMPELLER
1шт.
239621R1
RING, SNAP,1.50", Int, #150
1шт.
73296R93
SEAL
1шт.
1
426290C1
HUB, pulley
1шт.
REF 1 426290C1 PER NOTES IN HARD COPY, THIS PART IS "NLF". THE HUB 283579C1 (NSS) IS LISTED AS NO LONGER PART OF KIT. CNS/CAM 2/13/98
1шт.
2
426291C1
PULLEY
water pump
1шт.
179820
BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5
4шт.
3
283579C1
HUB
pulley
1шт.
4
239621R1
RING, SNAP,1.50", Int, #150
1шт.
5
354670C91
BEARING ASSY, complete
1шт.
REF 5 354670C91 PER NOTE IN HARD COPY, NSS, ORDER PUMP. CNS/CAM 2/13/98
1шт.
6
NSS
NOT SOLD SEPARAT
HOUSING, bearing, Not serviced separately, Order pump assy
1шт.
391991C1
SCREW,Skt Rec, Flat Hd, 5/16" - 18 x 3/4"
5/16-18 x 3/4 soc-rec-flat head mach
3шт.
391992C1
SCREW,Skt Rec, Flat Hd, 5/16" - 18 x 1 7/8"
5/16-18 x 1-7/8 soc-rec-flat head mach
1шт.
7
1701264C1
GASKET
pump body, Replaces 258169C1
1шт.
8
73296R93
SEAL
ASSY, water pump
1шт.
9
292511C12
IMPELLER W/BUSHING AND SEAT ASSY
1шт.
10
258151C11
OUTLET
right bank water
1шт.
20972R1
DRAIN PLUG,Sq Hd, 3/8"-18 NPTF
PLUG, 3/8-18 C-Z auto, sq-hd pipe
1шт.
438159
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG, 1/2-14 auto, sq-hd pipe
1шт.
179841
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8-16 x 1-1/4 hex-hd cap
1шт.
179849
BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
11
1701207C1
GASKET
water outlet, Replaces 258168C1
2шт.
12
427016C1
OUTLET, water
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
179845
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5
SCREW, 3/8-16 x 1-3/4 hex-hd cap
4шт.
13
277106C1
PIPE
water outlet to front cover
2шт.
14
293739R1
O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro
1-3/8 x 1-5/8 x 1/8, Replaces 164513R1
4шт.
15
263327C2
GASKET
water outlet
1шт.
16
328272C2
OUTLET
left bank water, Replaces 259080C4
1шт.
NLS
NO LONGER SERVICED
2шт.
179848
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
17
258173C1
GASKET
cross over, Serial Range: pipe-crankcase
1шт.
18
263326C2
MANIFOLD, water, Serial Range: pump-crankcase
1шт.
20972R1
DRAIN PLUG,Sq Hd, 3/8"-18 NPTF
PLUG, 3/8-18 C-Z auto. sq-hd pipe
1шт.
179818
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
179850
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
SCREW, 3/8-16 x 2-3/4 hex-hd cap
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
19
258174C1
GASKET
body, Serial Range: outlet-manifold
1шт.
20
298629C1
GASKET
water pump body to front cover
1шт.
21
281765C3
BODY, water pump
1шт.
391990C1
SCREW, 3/8-16 x 2-1/4 soc-rec-flat head mach
1шт.
179841
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8-16 x 1-1/2 hex-hd cap
2шт.
179843
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
2шт.
179845
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5
SCREW, 3/8-16 x 1-3/4 hex-hd cap
2шт.
179847
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
280161
BOLT,Hex, 3/8" - 16 x 3", Gr 5
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
10шт.
22
281786C21
PULLEY
ASSY, idler, Furnish pulley, 485603C91 and dirt cap, 603012R1
1шт.
23
258104C1
WASHER
idler arm thrust spacer
1шт.
24
361877C1
BUSHING
idler arm
1шт.
25
361879C11
ARM
ASSY, idler pulley, Includes ref nos 23, 24, 26 & 36
1шт.
26
361878C1
SPACER
idler arm
1шт.
27
280319C1
SPRING
idler arm
1шт.
28
272693C1
BOLT
eye idler arm spring
1шт.
NLS
NO LONGER SERVICED
NUT, 7/16-14 hex.
1шт.
29
189304
BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5
SCREW, 3/8-16 x 3-1/4 hex-hd cap
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
30
258105C2
BRACKET
idler arm
1шт.
31
281784C1
SHAFT
idler bearing
1шт.
120238
JAM NUT,Jam, 1/2"-13, G5
1/2-13 hex. jam
1шт.
32
282364C1
SHIELD
bearing
2шт.
33
273026R1
SNAP RING,1.375", Int, #137
Ring, Snap, , idler pulley 1.375", Int, #137
2шт.
34
365480C91
BEARING
idler pulley
1шт.
35
319340C91
THERMOSTAT
170 deg
2шт.
36
367808R91
OIL SEAL
OIL SEAL, idler arm
2шт.
37
603012R1
DUST CAP
CAP, dirt
1шт.
Выбрано товаров: 75
