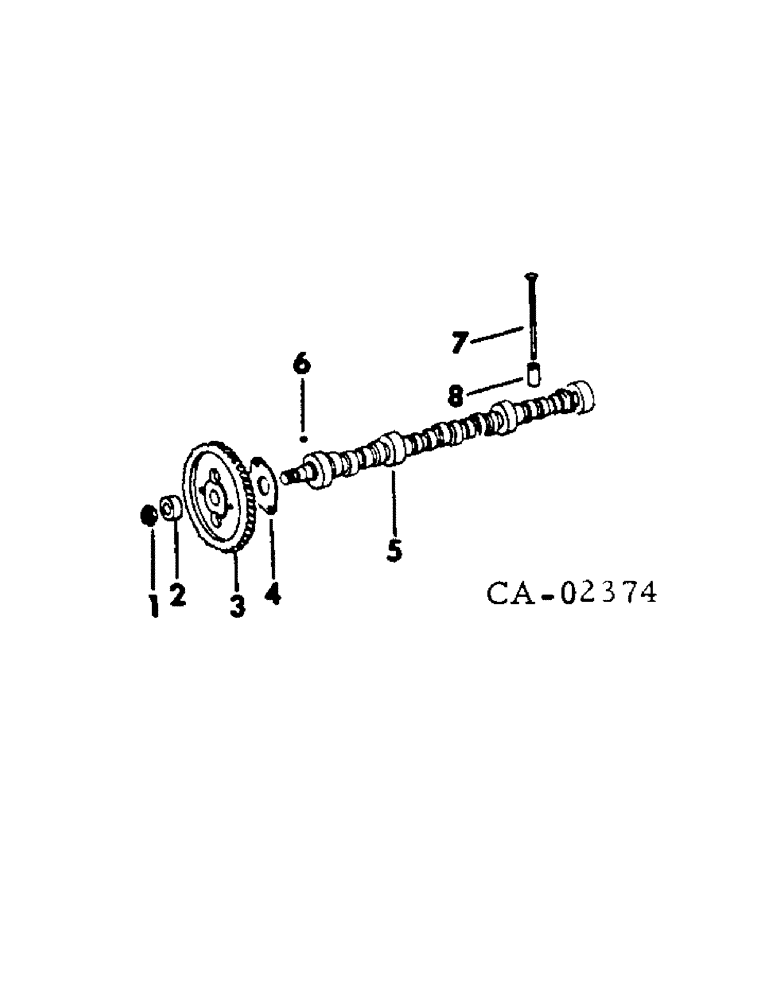

Запчасти Case IH DV-550 (A-04) - CAMSHAFT GEAR AND RELATED PARTS

1

215617R1

LOCK NUT

special camshaft

1шт.

2

448482C1

SPACER, camshaft, Replaces 364339C2

1шт.

3

396310C92

GEAR SET, camshaft, crankshaft and injection pump drive

1шт.

4

133564R1

FLANGE, camshaft

1шт.

70425R1

CAPSCREW,Hex, 3/8"- 16 x 3/4"

BOLT, 3/8-16 x 1/2 hex-hd lock

2шт.

5

315884C93

CAMSHAFT

ASSY

1шт.

6

431787

WOODRUFF KEY,#61, 3/16" x 5/8", HT

KEY, 3/16 x 5/8 Woodruff no. 61 aly-stl

1шт.

7

280623C91

ROD

valve lifter

16шт.

8

259070C92

TAPPET

ASSY, valve

16шт.
