Запчасти Case IH DV-550 (A-04[A]) - CONNECTING RODS AND PISTONS

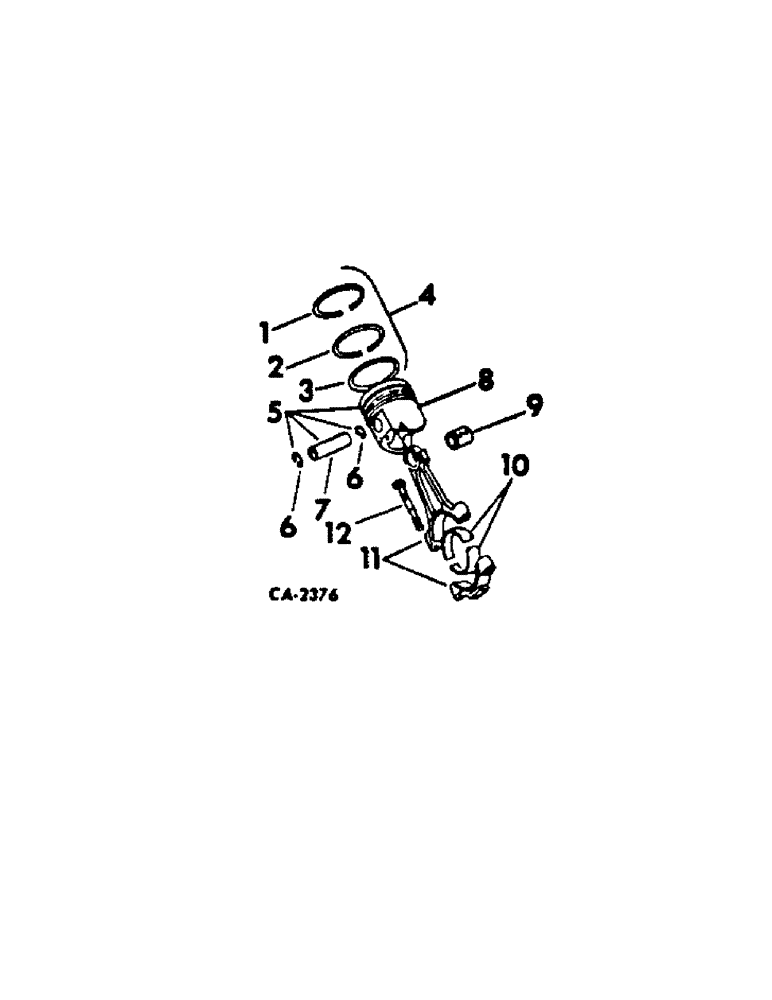

Схема запчастей Case IH DV-550 - (A-04[A]) - CONNECTING RODS AND PISTONS
2
8
9
6
12
6
11
7
4
10
5
1
3

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

RING, compression piston - top or first groove, Not serviced separately, Order piston ring set

8шт.

2

NSS

NOT SOLD SEPARAT

RING, compression piston, second groove, Not serviced separately, Order piston ring set

8шт.

3

NSS

NOT SOLD SEPARAT

RING, oil piston, third or bottom groove, Not serviced separately, Order piston ring set

8шт.

4

434465C93

PISTON RING SET

RING SET, piston, standard, Consists of two compression rings and one oil regulating ring

8шт.

4

434467C93

RING

SET, piston, .020 O/S, Consists of two compressions rings and one oil regulating ring

8шт.

4

434468C93

RING

SET, piston, .030 O/S, Consists of two compression rings and one oil regulating ring

8шт.

4

434469C93

RING

SET, piston, .040 O/S, Consists of two compression rings and one oil regulating ring

8шт.

5

434391C91

PISTON

ASSY, standard, Serial no. 41136 and below

8шт.

5

465590C91

PISTON

ASSY, standard, Serial no. 41137 and above

8шт.

5

434438C91

PISTON

ASSY, .020 O/S, Serial no. 41136 and below

8шт.

5

465592C91

PISTON

ASSY, .020 O/S, Serial no. 41137 and above

8шт.

5

434439C91

PISTON

ASSY, .030 O/S, Serial no. 41136 and below

8шт.

5

465593C91

PISTON

ASSY, .030 O/S, Serial no. 41137 and above

8шт.

5

434440C91

PISTON ASSY, .040 O/S, Serial no. 41136 and below

8шт.

5

465594C91

PISTON

ASSY, .040 O/S, Serial no. 41137 and above

8шт.

6

160094R1

SNAP RING,1.50", Int, #150

RING, SNAP, 1.50", Int, #150

16шт.

7

427231C1

PIN

piston

8шт.

8

NSS

NOT SOLD SEPARAT

PISTON, Not serviced separately, Order piston assy

1шт.

9

427218C1

BUSHING,37.68mm ID x 41.29mm OD x 29.92mm L

piston pin

8шт.

10

417575C1

BEARING

ASSY, connecting rod, 2 halves, std

8шт.

11

427217C91

ROD

W/BUSHING 427218C1, two bolt, nut and washer

8шт.

12

351008C2

BOLT

connecting rod

16шт.

259056C1

NUT

connecting rod bolt

16шт.

281878C1

WASHER

connecting rod bolt

16шт.

Выбрано товаров: 24
