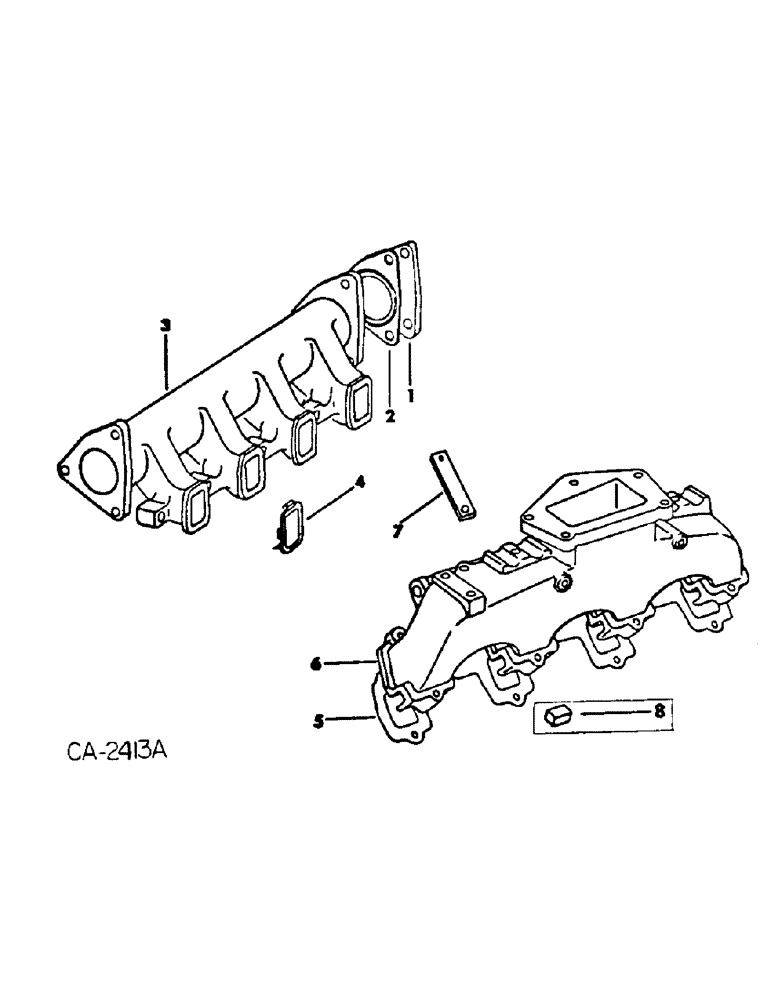

Запчасти Case IH DV-550 (A-23) - INTAKE AND EXHAUST MANIFOLDS

1

426288C1

COVER, exhaust manifold

2шт.

179858

SUPPORT

SCREW, 7/16-14 x 1 hex-hd cap

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

2

428099C1

MANIFOLD GASKET

exhaust manifold cover, Replaces 426289C1

2шт.

3

427017C2

MANIFOLD

ASSY, exhaust

2шт.

151364R1

SCREW,Hex, 3/8" - 16 x 2"

BOLT, 3/8-16 x 2 hex-hd

4шт.

353937C1

BOLT

SCREW, 3/8-16 x 3 hex-hd cap

6шт.

159689R1

WASHER

WASHER, tab lock

4шт.

353938C1

WASHER

tab lock

6шт.

4

259117C3

MANIFOLD GASKET

exhaust manifold

8шт.

5

259105C1

GASKET

intake manifold

2шт.

6

351157C12

MANIFOLD W/PLUGS, intake, w/swirl destroyer

2шт.

6

476103C91

MANIFOLD W/PLUGS, intake, w/o swirl destroyer

2шт.

444612

PLUG

1/8-27 auto. hex-hd pipe

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 auto. sq-hd pipe

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

8шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

6шт.

Q1597

WASHER

3/8 plain

12шт.

7

324001C1

CLIP, extension

2шт.

8

346250C1

PLUG

intake manifold, rubber, Used only w/manifold 351157C12

12шт.
