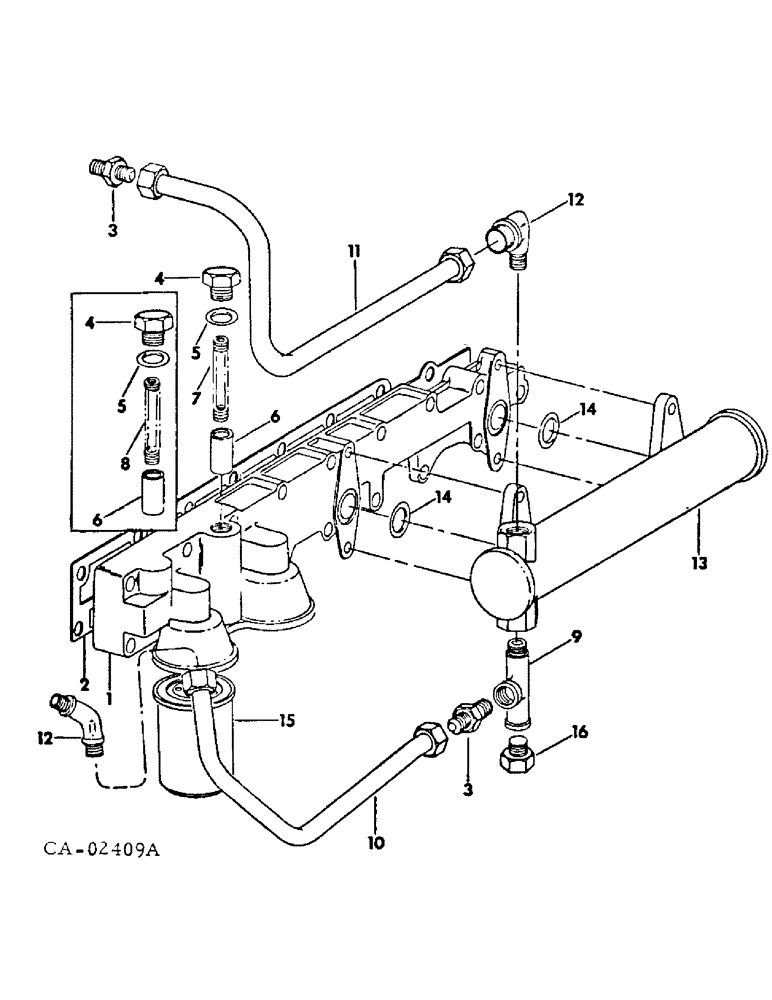

Запчасти Case IH DV-550 (A-21) - OIL FILTER AND COOLER

1

396147C92

BASE

ASSY, oil filter and cooler, Composed of: Ref. 1A - 1H

1шт.

1a

388640C2

BASE (NSS)

1шт.

Not Illustrated

1шт.

1b

105456

GASKET,Copper, 7/8" x 1 1/8"

2шт.

Not Illustrated

1шт.

1c

133735R1

VALVE

PISTON

1шт.

Not Illustrated

1шт.

1d

61263VA

PLUG

1шт.

Not Illustrated

1шт.

1e

444612

PLUG

4шт.

Not Illustrated

1шт.

1f

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

Not Illustrated

1шт.

1g

428044C1

SPRING

1шт.

Not Illustrated

1шт.

1h

390221C1

SPRING

1шт.

Not Illustrated

1шт.

FOR444613

PLUG

1/8-27 auto. hex-hd pipe

4шт.

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1/4-28 auto. hex-hd pipe

1шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

9шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

11шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

2

448427C1

GASKET

base assy, Replaces 417853C1

1шт.

3

873443R1

CONNECTOR, flex fitting 5/8 tube x 1/2 pipe thread

2шт.

4

61263VA

PLUG

7/8-18 hex-hd, 2 used w/base, 388640C1

1шт.

5

105456

GASKET,Copper, 7/8" x 1 1/8"

annular 7/8, 2 used w/base, 388640C1

1шт.

6

133735R1

VALVE

PISTON, relief valve, 2 used w/base, 388640C1

1шт.

7

428044C1

SPRING, piston cooling valve

1шт.

8

390221C1

SPRING, filter by-pass

1шт.

9

444260

TEE, 1/2-14 auto, pipe 1/2"-14 Fem x Male Run x Fem Br

1шт.

10

432018C91

TUBE W/TWO NUT AND SLEEVES, oil cooler water outlet

1шт.

11

427209C91

TUBE W/TWO NUT AND SLEEVES, oil cooler water inlet

1шт.

12

872442R1

ELBOW

flex fitting 90 deg 5/8 tube x 1/2 pipe thread

2шт.

13

417858C92

COOLER

ASSY, oil

1шт.

444654

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 auto. sq-soc pipe

1шт.

14

427884C1

RING

seal

2шт.

15

427207C2

FILTER, ENGINE OIL

FILTER ASSY

2шт.

16

444631

PLUG

1/2-14 auto, hex-hd pipe

1шт.
