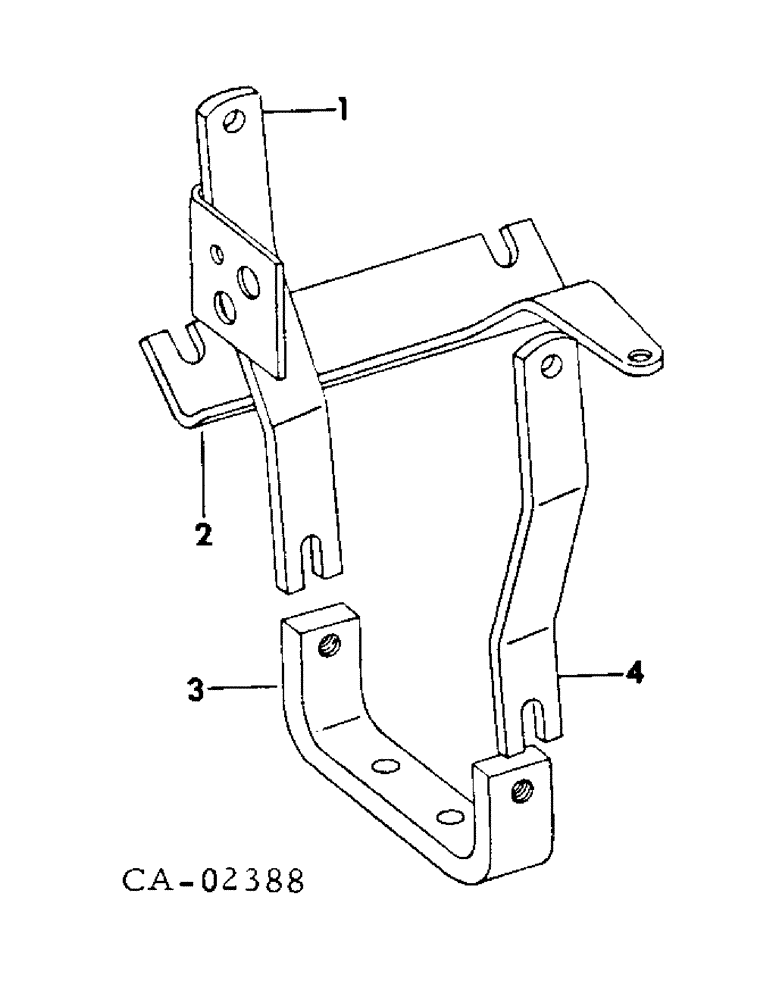

Запчасти Case IH DV-550 (A-19) - FUEL INJECTION PUMP MOUNTING

1

400698C2

BRACKET

injection pump

1шт.

25496R1

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

SCREW, 3/8-16 x 7/8 phc hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

25709R1

WASHER

13/32 x 13/16 x 3/32 znd hardened

1шт.

2

400802C1

BRACE, pump mounting

1шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

24842R1

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

25709R1

WASHER

3/32 x 13/16 x 3/32 znd hardened

2шт.

3

392108C2

BRACKET, pump mounting

1шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

392107C1

STRAP, pump support

1шт.

25496R1

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

SCREW, 3/8-16 x 7/8 phc hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

25709R1

WASHER

13/32 x 13/16 x 3/32 znd hardened

1шт.
