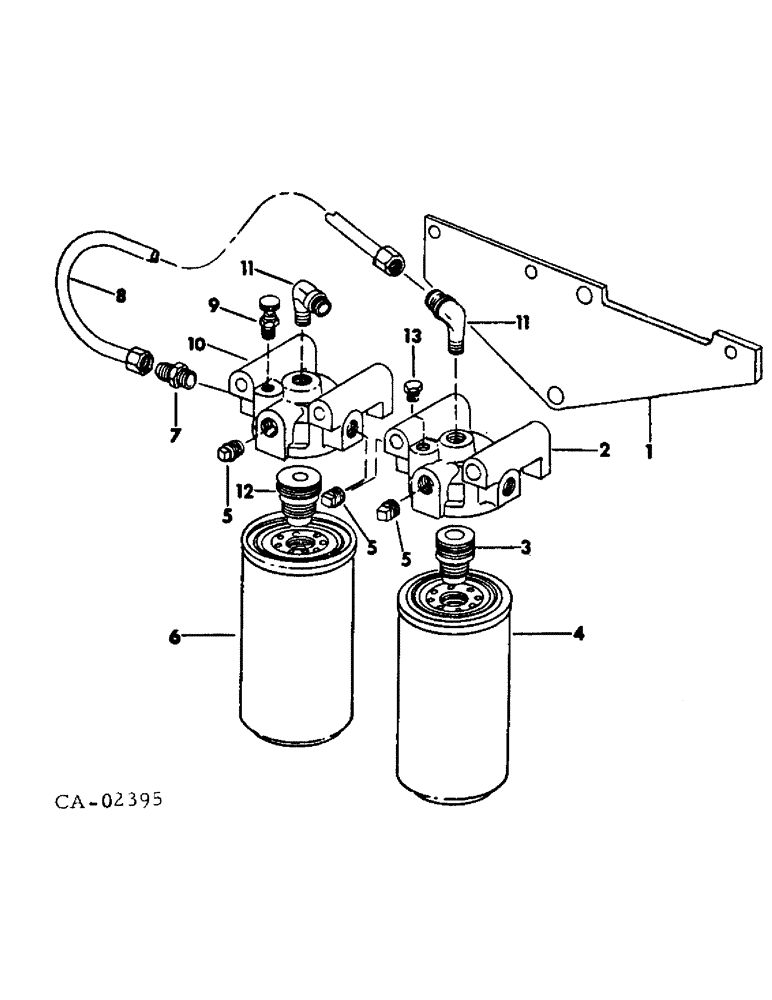

Запчасти Case IH DV-550 (A-18) - FUEL FILTERS

1

NLS

NO LONGER SERVICED

BRACKET, fuel filter, Discontinued for service

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

SCREW, 3/8-16 x 4-1/2 hex-hd cap

1шт.

614452R1

WASHER

13/32 x 1-1/4 x .120

2шт.

2

612277C2

FILTER HEAD

HEADER W/RETAINER 612275C1, filter

1шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, 3/8-16 x 3-3/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x .051

2шт.

3

612275C1

RETAINER

1шт.

4

625627C1

FILTER

primary fuel

1шт.

5

444654

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 auto. sq-soc pipe

4шт.

6

674293C1

FILTER CARTRIDGE

FILTER, final fuel, Replaces 672603C1

1шт.

7

606819C1

CONNECTOR, ELEC

CONNECTOR, Serial Range: pipe-filter

1шт.

8

427089C91

PIPE ASSY, fuel filter

1шт.

9

39677DA

VALVE

VALVE, bleed

1шт.

10

612276C2

HEAD

ER W/RETAINER 612274C1, filter

1шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, 3/8-16 x 3-3/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x .051

2шт.

11

606845C1

ELBOW

90 deg

2шт.

12

612274C1

RETAINER

1шт.

13

444612

PLUG

1/8-27 auto. hex-hd pipe

1шт.
