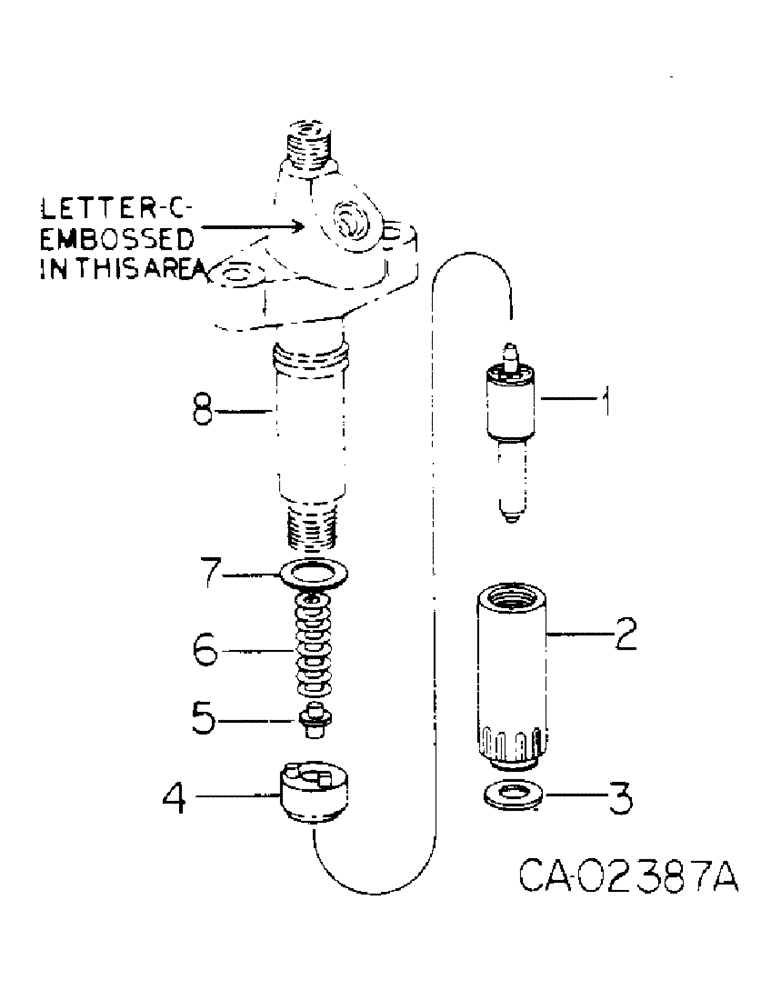

Запчасти Case IH DV-550 (A-14) - FUEL INJECTION NOZZLE

393905C91

NOZZLE ASSY, fuel injection, Order nozzle assy, 465495C91

1шт.

465495C91

HOLDER

NOZZLE ASSY, fuel injection, Replaces 393905C91, Letter, C, Embossed on body

1шт.

1

393904C1

NOZZLE INJECTION

NOZZLE, injector, Bosch DLL 25S-444, For use with 393905C91

1шт.

1

466437C1

NOZZLE INJECTION

NOZZLE, injector, Bosch DLL 25S-680, For use with 465495C91

1шт.

2

383320C1

NUT, injector holder cap

1шт.

3

383317C1

GASKET

injector holder cap

1шт.

4

383321C1

PLATE, fuel injector

1шт.

5

383319C1

SPRING

SEAT, nozzle spring

1шт.

6

383318C1

SPRING

injector nozzle, For use with 393905C91

1шт.

6

466438C1

SPRING

injector nozzle, For use with 465495C91

1шт.

615116C1

SHIM

spring, For use w/spring 466438C1

1шт.

7

408044C1

O-RING

fuel injector

1шт.

8

NSS

NOT SOLD SEPARAT

BODY, holder, Not serviced separately, Order nozzle assy

1шт.
