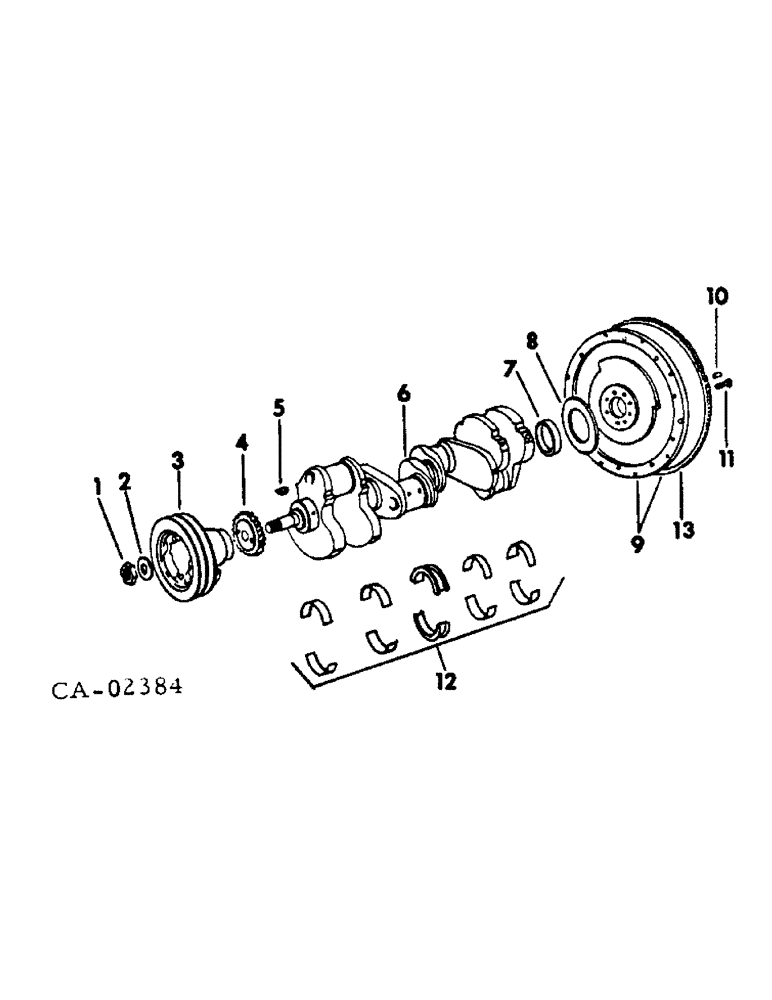

Запчасти Case IH DV-550 (A-10) - CRANKSHAFT AND RELATED PARTS

1

104007R1

NUT

crankshaft

1шт.

2

116451H

WASHER

crankshaft

1шт.

3

427215C91

PULLEY

ASSY, crankshaft

1шт.

4

396310C92

GEAR SET, camshaft, crankshaft and injection pump drive

1шт.

5

218211

DRIVING SPROCKET

1/4 x 3/4 SAE 91 Woodruff

1шт.

6

427229C93

CRANKSHAFT

ASSY, standard

1шт.

7

339965C1

RING

SLEEVE, crankshaft wear

1шт.

8

317749C92

PACKING RING

SEAL, crankshaft rear

1шт.

9

538160R11

FLYWHEEL ASSY

1шт.

10

20596R1

PIN,3/8" x 1 1/4", Coiled

1шт.

11

414052C1

BOLT,Hex, 1/2" - 20 x 1 1/2"

flywheel to crankshaft, Replaces 258127C1

7шт.

12

417621C91

CRANKSHAFT BEARING

BEARING SET, crankshaft, standard, Nos 1, 2, 3, 4, 5

1шт.

13

326759R1

GEAR

flywheel ring

1шт.
