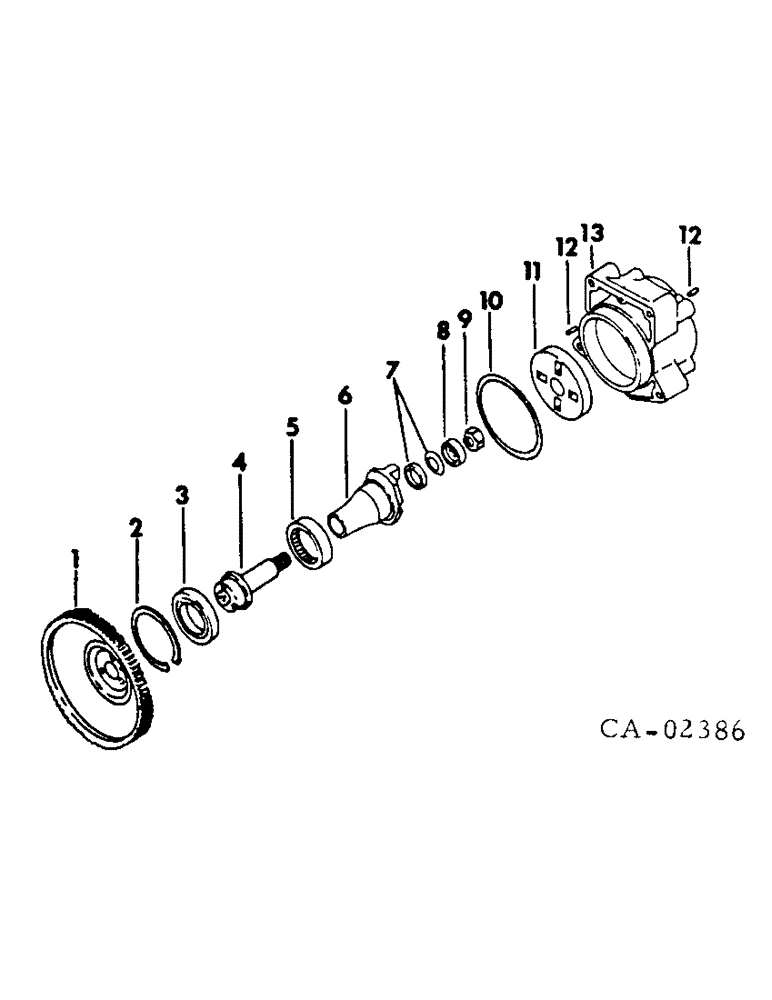

Запчасти Case IH DV-550 (A-09) - FUEL INJECTION PUMP DRIVE / CRANKCASE OIL PAN

1

396310C92

GEAR SET, camshaft, crankshaft and injection pump drive

1шт.

263320C1

BOLT, 5/16-18 x 7/8 hex-hd

3шт.

120379

WASHER, 5/16 C-Z light lock

3шт.

2

258147C1

Ring, Snap, 3.00", Int, #300 3.00", Int, #300

1шт.

3

ST560

BEARING, BALL,45 mm ID x 75 mm OD x 16 mm

1шт.

4

393777C1

SHAFT, injection pump drive

1шт.

5

983851R91

NEEDLE BEARING

needle

1шт.

6

341085C2

HUB

1шт.

7

259094C91

SPRING, injection pump drive

1шт.

8

263232C1

WASHER

injection pump drive

1шт.

9

425-1110

NUT,5/8"-18, G5

1шт.

10

259085C1

GASKET

adapter to crankcase cover

1шт.

11

392019C1

DISC, injection pump drive

1шт.

12

18400R1

LOCK PIN,3/16" x 5/8", Slotted

PIN, 3/16" x 5/8", Slotted

2шт.

13

391983C11

ADAPTER ASSY, injection pump, Includes ref no. 12

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 2 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

1

448428C1

RING

GASKET, crankcase oil pan, Replaces 280650C1

1шт.

2

3405H

GASKET

drain plug

1шт.

3

445096

PLUG

7/8-18 hex. outside head drain

1шт.

4

440294C92

PAN ASSY, oil

1шт.

282245C1

SCREW

, Serial Range: pan-crankcase

23шт.
