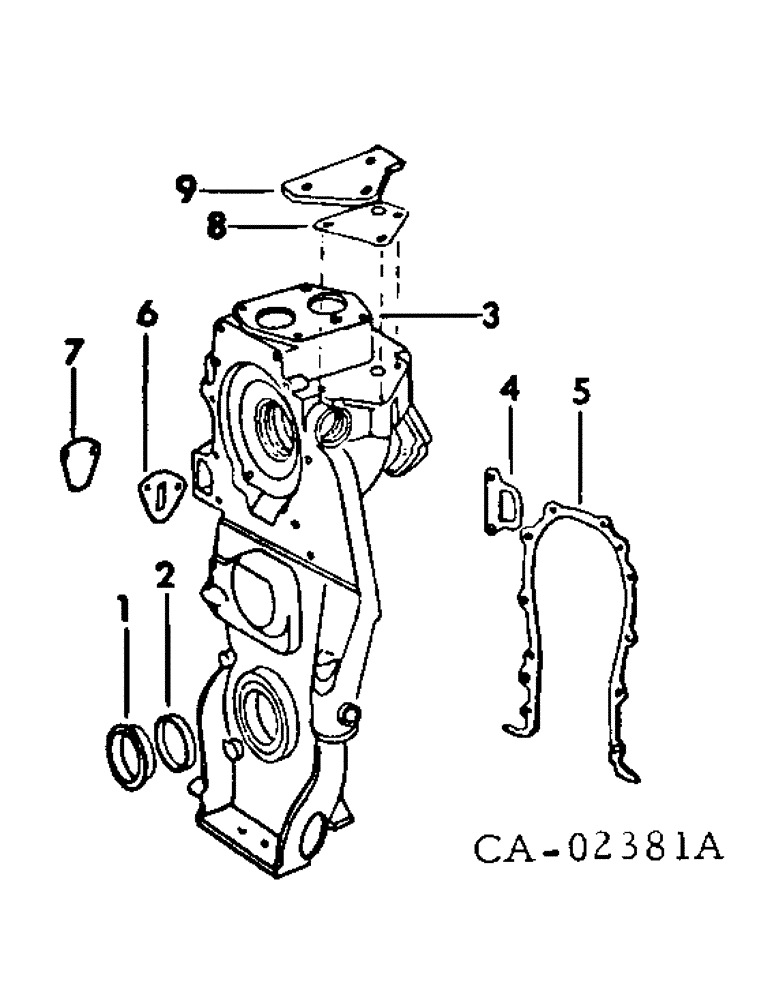

Запчасти Case IH DV-550 (A-08) - CRANKCASE FRONT COVER

1

282131C1

SLEEVE

crankcase pulley wear

1шт.

2

300845C91

SEAL

crankshaft front oil

1шт.

3

281688C81

COVER W/FOUR PLUGS, crankcase front

1шт.

398197C1

INDICATOR, timing

1шт.

444612

PLUG

1/8-27 auto. hex-hd pipe

2шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 auto. sq-soc pipe

1шт.

444592

PLUG,Sq Hd, 1/4"-14 NPTF

3/4-14 auto. sq-hd pipe

1шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex-hd cap

2шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

21318R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

SCREW, 3/8-16 x 2-1/2 phc hex-hd cap

1шт.

20550R1

BOLT (SPREADER)

SCREW W/NYLON PELLET, 3/8-16 x 2-1/2 hex-hd cap

2шт.

275804R1

BOLT,Hex, 3/8" - 16 x 3", Gr 8

SCREW, 3/8-16 x 3 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

4

348713C1

GASKET

water outlet

1шт.

5

348714C2

GASKET

front cover

1шт.

6

128868H

GASKET

cover plate

1шт.

7

266199R1

COVER, lift pump opening

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

298967C2

GASKET

air compressor mounting plate

1шт.

9

361664C2

PLATE, air compressor mounting pad

1шт.

24838R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

Hex, 3/8"-16 x 1/2" G8, Full Thd

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.
