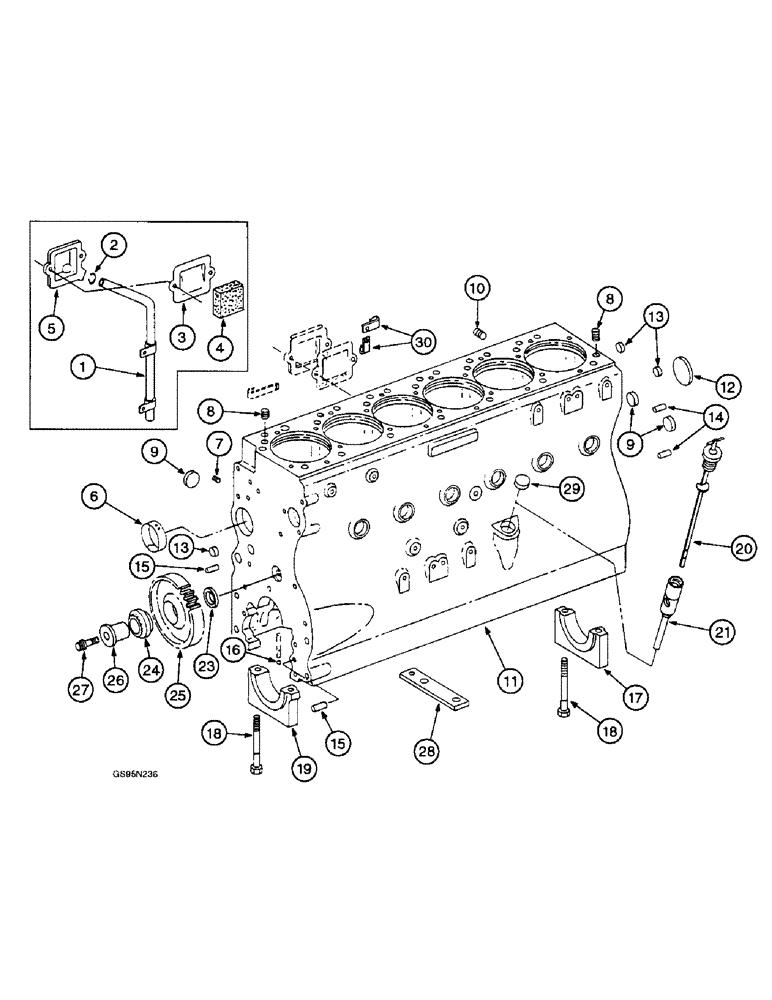

Запчасти Case IH D-360 (9B-02) - CRANKCASE AND RELATED PARTS

1

672222C3

TUBE,8.97, 6.56" Length

- breather

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

4шт.

95-11034

WASHER,1/4"

- flat, 11/32 x 11/16 x 3/64 inch (Replaces washer 103340)

4шт.

2

673185C1

O-RING

- breather pipe, 1 x 1-1/4 x 1/8 inch

1шт.

3

677711C2

GASKET

BAFFLE - breather housing

1шт.

4

675494C2

FILTER, ELEMENT

ELEMENT - breather

1шт.

5

675409C1

BODY

HOUSING - breather

1шт.

326-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

(Replaces bolt 25234R1) Hex, 5/16"-18 x 2 1/4", G8

1шт.

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

(Replaces 25927R1) Hex, 5/16"-18 x 1 1/2", G8

1шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

2шт.

95-11034

WASHER,1/4"

- flat, 11/32 x 11/16 x 3/64 inch (Replaces washer 103340)

2шт.

684750C91

CYLINDER

CRANKCASE ASSEMBLY - engine, no longer available, Includes: Plugs & Ball Listed Below & Ref. 6 - 19

1шт.

217-407

PLUG,Hex Hd, 3/8" - 18 NPT

Crankcase drain (Replaces plug 444624) Hex Hd, 3/8"-18

1шт.

211-1013

BALL,10.31mm OD, Gr 24

- chrome alloy steel, 13/32 inch, grade 24 (Replaces ball 3072884R1)

1шт.

50410DA

PLUG

- crankcase

1шт.

6

NSS

NOT SOLD SEPARAT

BEARING - camshaft, order camshaft bearing kit 680117C3

4шт.

7

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT (Replaces plug 444612)

1шт.

8

684902C1

DOWEL,15.3mm ID x 17.78mm OD x 22.23mm L

- bushing

2шт.

9

41-1620

PLUG,Cup, 1 1/4", Stainless

- cup, 1-1/4 inch (Replaces plug 23623R1)

9шт.

10

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - hex socket, 3/4 inch PT (Replaces plug 9409949)

2шт.

343464R1

TUBE,0.049" ID, 1" OD, 2" Length

- crankcase

1шт.

11

NSS

NOT SOLD SEPARAT

CRANKCASE - order crankcase assembly 684750C91

1шт.

12

682444C1

RING

- camshaft seal

1шт.

13

41-1013

PLUG,Cup, 13/16"

- cup, 13/16 inch (Replaces plug 327412R1)

3шт.

14

680484C1

DOWEL

- 1/2 x 1-1/8 inch

2шт.

15

680483C1

PIN

DOWEL - 3/8 x 7/8 inch

2шт.

16

211-1008

BALL,1/4" Dia

- oil jet cooling, chrome alloy steel, 1/4 inch, grade 24 (Replaces balls 7911T and 17008R1)

12шт.

17

680242C1

CAP - main bearing rear

1шт.

18

672168C1

BOLT

- main bearing cap

14шт.

252018R1

WASHER,15.11mm ID x 25.4mm OD x 4.83mm Thk

- main bearing cap bolt

14шт.

19

680240C1

CAP

- main bearing, front and intermediate, no longer available

6шт.

20

671829C3

DIPSTICK

GAUGE - oil level, used with 766 and 886 tractors

1шт.

20

683170C1

GAUGE

- oil level, used with 453 combines

1шт.

21

691846C1

TUBE

- oil level gauge, used with 766 and 886 tractors (Replaces tube 676199C1)

1шт.

23

675767C1

SPACER

- idler gear

1шт.

24

327185R91

BEARING ASSY,31.75mm ID x 59.16mm OD x 36.75mm W

- idler gear

1шт.

25

675764C1

GEAR

- idler, 77 tooth

1шт.

26

675765C1

SHAFT

- idler gear stub

1шт.

27

26044R1

12 PT SCREW,Flg, 1/2" - 13 x 2"

BOLT - idler gear shaft (Replaces bolt 676588C1)

1шт.

28

673761C1

BRACKET

- suction pipe support, used with 453 combines

1шт.

29

24717R1

PLUG,Cup, 1 7/16"

- cup-in-crankcase, 1-7/16 inch, used with 453 combines

1шт.

30

362126R1

CLIP

CLAMP - cable harness, long, used with 886 tractors

1шт.

680117C3

SET

KIT - bearing, camshaft, Includes: Ref. 6

1шт.
