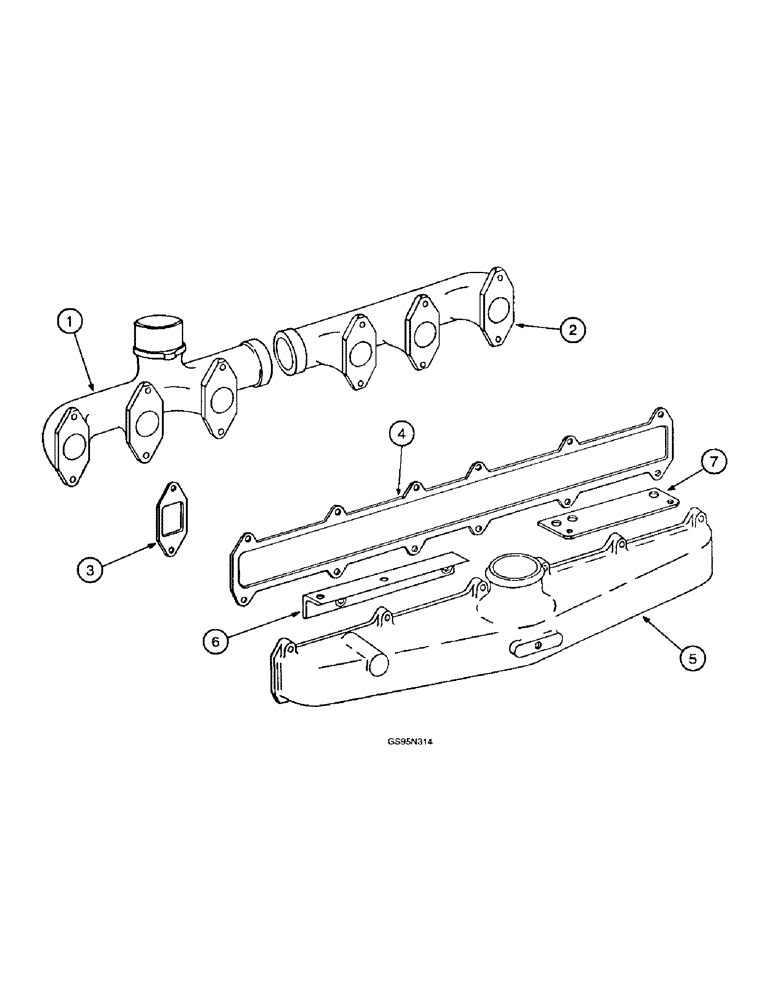

Запчасти Case IH D-360 (9B-58) - INTAKE AND EXHAUST MANIFOLD

1

675827C3

MANIFOLD

- exhaust front, no longer available

1шт.

2

675828C2

MANIFOLD - exhaust rear, no longer available

1шт.

3

1349062C1

MANIFOLD GASKET

- exhaust manifold (Replaces gaskets 682982C1 and 688928C1)

6шт.

4

682198C2

MANIFOLD GASKET

- intake manifold

1шт.

5

675357C1

MANIFOLD

- intake, also order plug 217-504

1шт.

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- square, 1/4 inch PT (Replaces plug 444576)

1шт.

326-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

(Replaces bolt 25751R1) Hex, 5/16"-18 x 1 1/4", G8

10шт.

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

(Replaces bolt 25654R1) Hex, 5/16"-18 x 1 1/2", G8

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

12шт.

6

680586C2

SUPPORT

- ether start

1шт.

7

688126C1

SUPPORT - muffler brace, used with 886 tractors

1шт.
