Запчасти Case IH D-360 (9B-56) - FLYWHEEL HOUSING, 453 COMBINES, 766 TRACTORS AND 886 TRACTORS

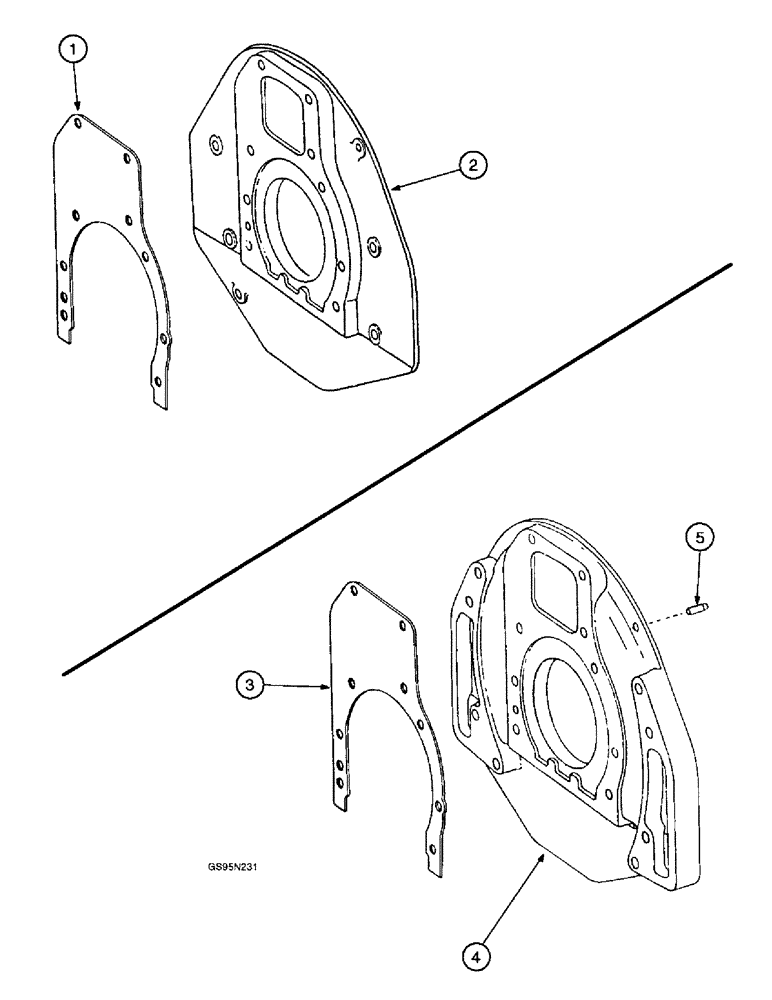

Схема запчастей Case IH D-360 - (9B-56) - FLYWHEEL HOUSING, 453 COMBINES, 766 TRACTORS AND 886 TRACTORS
5
2
1
4
3

Артикул

Название

Примечание

Количество

1

682945C3

GASKET

- flywheel housing, 453 Combines

1шт.

2

673036C1

PLATE - adapter, crankcase rear mounting, no longer available, 453 Combines

1шт.

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- hex, 1/2 NC x 1-7/8 inch (Replaces screw 25278R1)

8шт.

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened (Replaces washer 26273R1) 17/32" x 1 1/16" x .134"

8шт.

3

682945C3

GASKET

- flywheel housing, will work for 675557C1, 766 and 886 Tractors

1шт.

4

671805C91

PLATE

- crankcase rear mounting, 766 and 886 Tractors

1шт.

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

(Replaces bolt 24863R1) Hex, 1/2"-13 x 1 3/4", G8

6шт.

326-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

(Replaces screw 24865R1) Hex, 1/2"-13 x 2 1/4", G8

2шт.

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened (Replaces washer 26273R1) 17/32" x 1 1/16" x .134"

8шт.

5

375362R1

PIN,12.69mm OD x 34.8mm L

- dowel, 1/2 x 1-3/8 inch, rear mounting plate

2шт.

Выбрано товаров: 10
