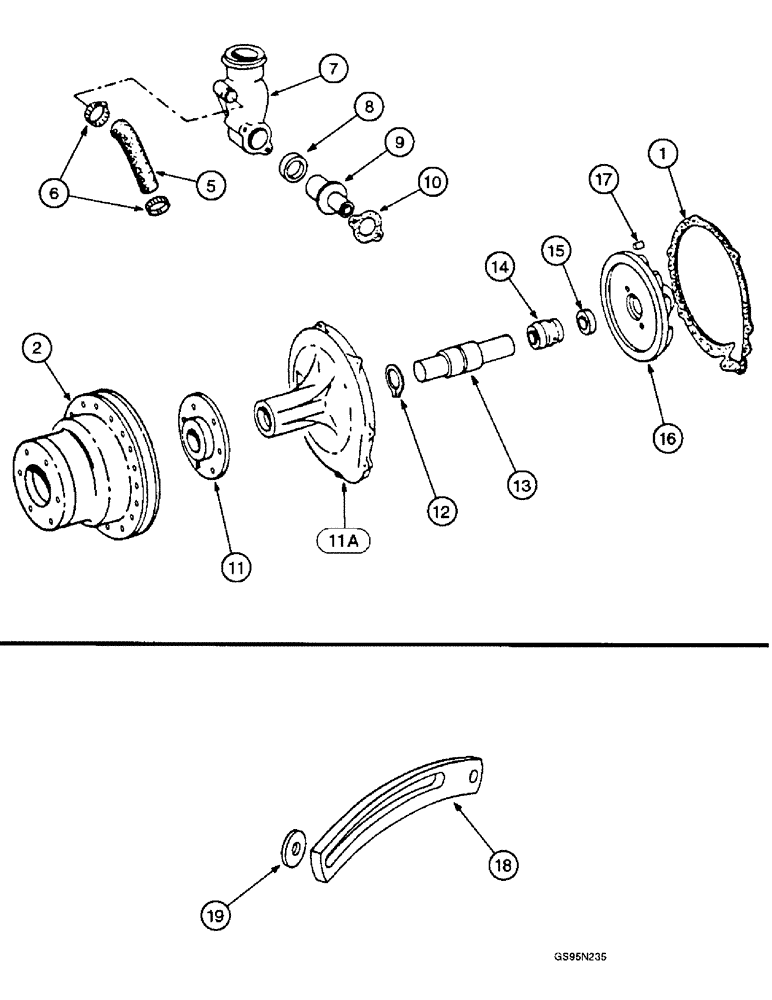

Запчасти Case IH D-360 (9B-54) - THERMOSTAT AND WATER PUMP / ALTERNATOR-GENERATOR MOUNTING

1

675808C2

GASKET,0.79mm Thk

GASKET - water pump housing

1шт.

2

671807C1

PULLEY

PULLEY - water pump, single groove, no longer available, order pulley 691562C1, used with 766 tractors, 886 tractors without air conditioning

1шт.

2

691562C1

PULLEY

PULLEY - fan, water pump, triple groove, used with 453 combines and 886 tractors with air conditioning (Replaces pulley 537071R1)

1шт.

329-106

NUT,3/8"-16, G8

NUT, (Replaces nut 25522R1) 3/8"-16, G8

2шт.

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

BOLT, (Replaces bolt 140483H) Hex, 3/8"-16 x 1 1/4", G8, Full Thd

4шт.

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

BOLT - hex, 3/8 NC x 1-3/4 inch, grade 8 (Replaces bolt 24842R1)

2шт.

326-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

BOLT, (Replaces bolt 24844R1) Hex, 3/8"-16 x 3 1/2", G8

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

8шт.

5

672242C2

HOSE

Thermostat By-Pass Housing

1шт.

6

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj., Thermostat by-pass housing hose #20, 0.81/1.75 Type F Worm

2шт.

7

689061C1

HOUSING

HOUSING - thermostat (Replaces housing 675810C2)

1шт.

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

PLUG - square socket, magnetic, 1/2 inch PT (Replaces plug 445751)

1шт.

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

PLUG - hex socket, 3/8 inch PT (Replaces plug 444660)

1шт.

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

BOLT, (Replaces bolt 277232R1) Hex, 3/8"-16 x 2 3/4", G8

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

8

615175C91

SEAL

SEAL - thermostat

1шт.

9

684739C1

THERMOSTAT

THERMOSTAT - coolant, 190 degrees F, interchangeable with 687018C2

1шт.

10

1342836C1

GASKET

GASKET - thermostat housing (Replaces gasket 675384C1)

1шт.

673623C92

PUMP, WATER

HOUSING ASSEMBLY - water pump (Replaces assembly 677415C93), Includes: Ref. 11 - 17

1шт.

749909C91

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

1928145C1

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

11

675033C1

HUB

HUB - pulley, water pump

1шт.

11a

675806C3

HOUSING

HOUSING - bearing, water pump

1шт.

12

100-21187

SNAP RING,1.875", Int, #187

Ring, Snap, , replaces ring 272842R1 1.875", Int, #187

1шт.

13

627785C91

BEARING ASSY,47.63mm OD x 177.8mm L

SHAFT - pump, includes bearing

1шт.

687161C92

KIT

KIT - water pump seal (Replaces kits 687366C91 and 701331C93), Includes: Ref. 14 & 15

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - water pump, order water pump seal kit 687161C92

1шт.

15

NSS

NOT SOLD SEPARAT

SEAT - water pump, order water pump seal kit 687161C92

1шт.

16

677414C1

IMPELLER

IMPELLER - water pump

1шт.

17

680481C1

PIN

PIN - dowel, 1/4 x 5/8 inch

2шт.

18

532418R1

BRACE

BRACE - alternator-generator, used with 453 combines

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT - hex , 5/16 NC x 1-1/4 inch (Replaces bolt 180081)

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex, 3/8 NC x 1 inch (Replaces bolt 180122)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

492-11038

LOCK WASHER,3/8"

LOCK WASHER, (Replaces washer 120382) 3/8"

1шт.

18

532418R1

BRACE

BRACE - alternator-generator, used with 766 and 866 tractors

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex, 3/8 NC x 1 inch (Replaces bolt 179839)

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

1шт.

19

208185R1

SPACER - alternator-generator brace, 766 tractors, no longer used

1шт.

537326R1

BOLT

BOLT - hex, special, 5/16 NC x 1-1/2 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

28588R1

WASHER

WASHER - flat, 11/32 x 11/16 x 3/64 inch (Replaces washer 27309R1)

1шт.

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

1шт.

19

384992R1

SPACER

SPACER - alternator-generator brace, used with 453 combines

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT - hex, 5/16 NC x 1-1/2 inch (Replaces bolt 180083)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

1шт.
