Запчасти Case IH D-360 (9B-46) - INJECTION NOZZLE

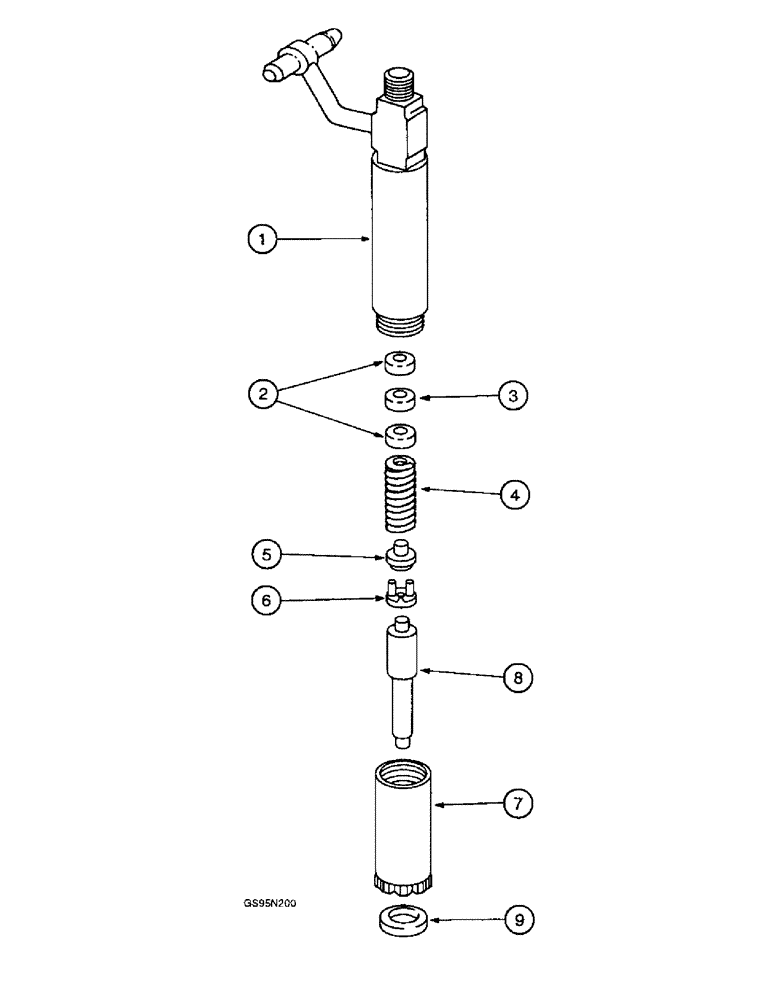

Схема запчастей Case IH D-360 - (9B-46) - INJECTION NOZZLE
8
2
1
6
4
9
7
3
5

Артикул

Название

Примечание

Количество

675960C91

NOZZLE INJECTION

NOZZLE ASSEMBLY - injection, new, 9 mm, no longer available, order remanufactured assembly 631570C91

1шт.

631570C91

REMAN-FUEL INJECTOR

NOZZLE ASSEMBLY - injection, 9 mm, remanufactured for nozzle assembly 675960C91, used with pump assemblies 631552C91 and 631572C91, component parts do not apply to the remanufactured assembly

1шт.

1934147C1

CORE-FUEL INJECTOR

RETURN NUMBER - use this part number to return nozzle for credit when using a remanufactured assembly

1шт.

687145C91

NOZZLE INJECTION

NOZZLE ASSEMBLY - injection, new, 10 mm, used with pump assemblies 749029C91, 749073C91 and 749579C91, Includes: Ref. 1 - 9

1шт.

749680C91

REMAN-FUEL INJECTOR

NOZZLE ASSEMBLY - injection, 10 mm, remanufactured for nozzle assembly 687145C91, used with pump assemblies 749029C91, 749073C91 and 749579C91, component parts do not apply to the remanufactured assembly

1шт.

1934155C1

CORE-FUEL INJECTOR

RETURN NUMBER - use this part number to return nozzle for credit when using a remanufactured assembly

1шт.

1

680413C1

BODY

BODY - nozzle holder

1шт.

2

680414C1

SPACER

SPACER - nozzle

2шт.

3

680415C1

SPACER

SPACER - spring adjusting 0.002 inch

1шт.

3

680416C1

SPACER

SPACER - spring adjusting 0.007 inch

1шт.

3

680418C1

SPACER

SPACER - spring adjusting 0.010 inch

1шт.

3

680419C1

SPACER

SPACER - spring adjusting 0.025 inch

1шт.

3

680420C1

SPACER

SPACER - spring adjusting 0.375 inch

1шт.

3

680421C1

SPACER

SPACER - spring adjusting 0.028 inch

1шт.

3

680422C1

SPACER

SPACER - spring adjusting 0.030 inch

1шт.

3

680423C1

SPACER

SPACER - spring adjusting 0.035 inch

1шт.

4

680424C1

SPRING

SPRING - pressure adjusting

1шт.

5

680433C1

GUIDE

GUIDE - spring seat

1шт.

6

A44862

VALVE

SPACER - valve stop (Replaces spacer 680434C1)

1шт.

7

680435C1

NUT

NUT - nozzle cap

1шт.

8

673598C1

NOZZLE INJECTION

TIP - nozzle, used with nozzle assembly 631570C91

1шт.

8

687146C1

POINT

TIP - nozzle, used with nozzle assemblies 687145C91 and 749680C91

1шт.

9

1342829C1

GASKET

GASKET - nozzle, injector (Replaces gasket 675477C1)

1шт.

Выбрано товаров: 23
