Запчасти Case IH D-360 (9B-42) - FUEL INJECTION PUMP AND CONNECTIONS

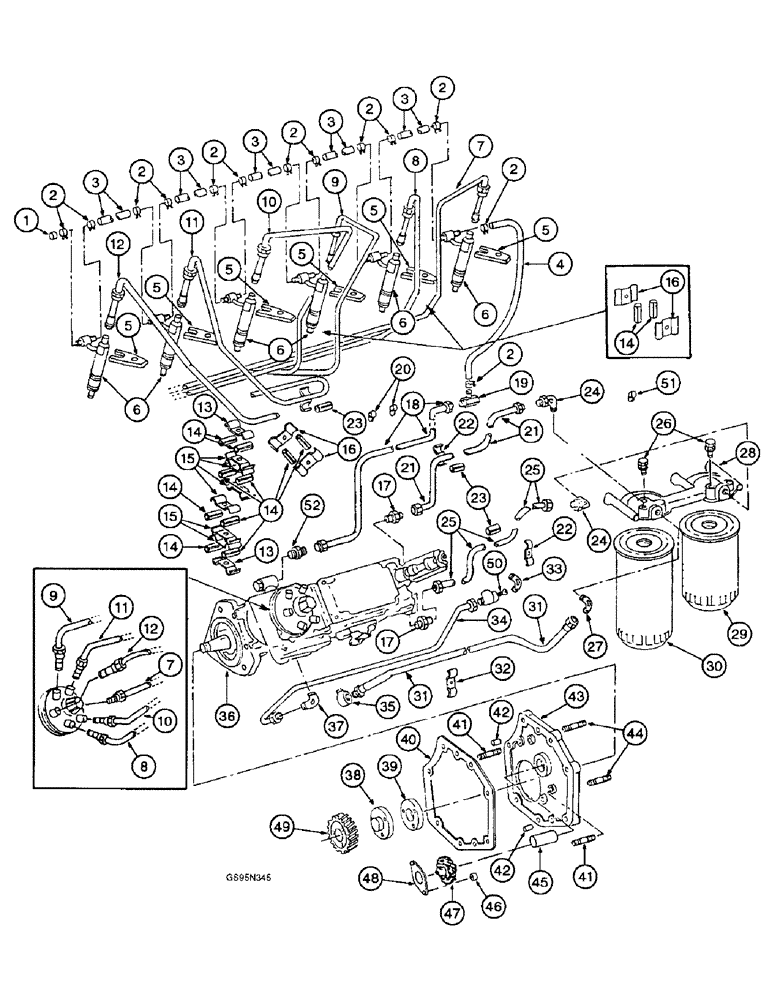

Схема запчастей Case IH D-360 - (9B-42) - FUEL INJECTION PUMP AND CONNECTIONS
12
14
16
15
23
39
3
3
30
52
47
13
31
5
1
29
35
32
16
23
45
9
2
41
18
5
15
33
41
46
34
17
31
24
14
2
28
17
14
49
25
2
7
3
48
3
7
8
6
21
36
6
38
14
50
2
22
10
24
27
5
11
5
12
37
10
21
2
9
40
6
20
4
2
6
26
51
2
14
25
5
42
2
22
44
3
13
11
19
42
8
43
5

Артикул

Название

Примечание

Количество

1

1802452C1

CAP

- fuel return no. 1 injector (Replaces cap 676547C1)

1шт.

2

A180159

CLAMP,10.29mm - 12.32mm

- leakoff hose (Replaces clamps 677129C1 and 1802453C1)

13шт.

3

REF

INSTRUCTION

HOSE - fuel return injector to injector, 4-1/2 inch (114 mm) long, cut from bulk hose 680246CX below

5шт.

4

REF

INSTRUCTION

HOSE - no. 6 injector to leakoff tube, 10 inch (254 mm) long, cut from bulk hose 680246CX below

1шт.

5

675479C2

CLAMP

CRAB - injection nozzle

6шт.

691105C1

BOLT

- hex, 5/16 NC x 1-1/16 inch, injector crab

6шт.

6

REF

INSTRUCTION

NOZZLE ASSEMBLY - injection, parts list page 9B-47

6шт.

1342831C1

SEAL

GROMMET - injection dust cover (Replaces grommet 682810C1)

6шт.

7

675721C1

PIPE

- injection, cylinder no. 6

1шт.

8

675720C1

PIPE

- injection, cylinder no. 5

1шт.

9

675719C1

PIPE

- injection, cylinder no. 4

1шт.

10

675718C1

INJECTION PIPE

PIPE - injection, cylinder no. 3

1шт.

11

675717C1

PIPE

- injection, cylinder no. 2

1шт.

12

675716C1

PIPE

- injection, cylinder no. 1

1шт.

13

673527C1

CLAMP

- fuel line tube

2шт.

23232R1

NUT - hex, 1/4 inch NC, no longer used

1шт.

326-432

BOLT,Hex, 1/4" - 20 x 2", Gr 8

1шт.

27616R1

WASHER,.281" x 5/8" x .075", HDN

- flat, 1/4 inch, hardened

1шт.

14

258079C1

GROMMET

- injection line, six used on 886 tractors

12шт.

15

673577C1

CLAMP

- duplex tube, one used on 886 tractors

2шт.

16

673527C1

CLAMP

- fuel tube, injection pipe (Replaces clamps 701155C1, 674851C1 and 674852C1)

6шт.

326-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

(Replaces bolt 25752C1) Hex, 1/4"-20 x 1/2", G8, Full Thd

3шт.

684548C1

NUT

- spring, no longer available

3шт.

17

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

ADAPTER - primary pump inlet, primary filter to injection pump tube and final filter to injection pump tube, compression, 3/8 tube OD x 1/4 inch PT

2шт.

18

675596C91

TUBE

ASSEMBLY - fuel return, no longer available

1шт.

18

687189C91

TUBE

ASSEMBLY - fuel return, used with 886 tractors, no longer available

1шт.

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1)

2шт.

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1)

2шт.

19

673196C1

TEE

- fuel leakoff, used with 766 tractors and 453 hillside combines

1шт.

19

689382C1

TEE

- fuel leakoff, used with 886 tractors

1шт.

20

680116C1

CLIP

- fuel return tube

2шт.

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

(Replaces bolt 24839R1) Hex, 3/8"-16 x 3/4", G8, Full Thd

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

21

684030C91

TUBE

ASSEMBLY - primary pump to final filter

1шт.

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1)

2шт.

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1)

2шт.

22

684899C1

CLAMP

- final fuel to injection pump and primary filter to no. 2 injection pipe

2шт.

326-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

(Replaces bolt 25752R1) Hex, 1/4"-20 x 1/2", G8, Full Thd

2шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, (Replaces nut 19592R1) 1/4"-20, GB

2шт.

23

258079C1

GROMMET

- injection tube, fuel pipe

2шт.

23

397483R1

GROMMET

CUSHION - fuel pipe (Replaces cushion 536410R1)

2шт.

24

222-4047

ELBOW

- primary filter outlet and final filter inlet, 90 degree compression, 3/8 tube OD x 1/4 inch PT (Replaces elbow 606845C1)

2шт.

25

684032C91

TUBE

ASSEMBLY - primary filter to primary pump

1шт.

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1)

2шт.

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1)

2шт.

26

39677DA

VALVE

- bleeder

2шт.

27

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree x 5/8 inch x 1/4 inch, final filter outlet

1шт.

28

1809590C91

HEAD ASSY.

HEADER - fuel filter (Replaces header 676143C2)

1шт.

326-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 8

(Replaces bolt 25784R1) Hex, 3/8"-16 x 4 1/4", G8

3шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

3шт.

29

A184772

FILTER, ELEMENT

FILTER - primary fuel, 766 and 886 tractors (Replaces filter 625625C1)

1шт.

29

A184773

SEPARATOR

FILTER - primary fuel, used with 453 combines (Replaces filter 625627C1)

1шт.

30

A184774

FUEL FILTER

FILTER - final fuel (Replaces filter 672603C2)

1шт.

31

688189C1

HOSE

- final filter to injection pump (Replaces hose 671181C1 by also ordering elbow 118755)

1шт.

32

684899C1

CLAMP

- final fuel to injection pump and primary filter to no. 2 injection pipe

2шт.

326-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

(Replaces bolt 25752R1) Hex, 1/4"-20 x 1/2", G8, Full Thd

2шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, (Replaces nut 24468R1) 1/4"-20, GB

2шт.

33

610000C1

TEE

- lubricating oil fitting (Replaces elbow 319615R1)

1шт.

34

673182C91

TUBE

ASSEMBLY - lubricating oil

1шт.

222-102

SLEEVE,1/4" Tube

(Replaces sleeve 915500R1) 1/4" Tube

2шт.

87017024

TUBE NUT,1/2"-24

NUT - hex, 1/4 tube OD x 1/2-24 inch (Replaces nut 915499R1)

2шт.

35

REF

INSTRUCTION

ELBOW - injection pump hose, furnished as part of injection pump

1шт.

36

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list Figures 9B-20 or 9B-32

1шт.

37

606296C1

90 ELBOW

- flex lube oil inlet, 1/4 inch x 1/4 inch x 90 degree

1шт.

38

676925C1

HUB

- injection pump gear

1шт.

39

676926C1

PLATE

- gear retainer

1шт.

27366R1

BOLT,Hex, 5/16" - 24 x 1 1/2", Gr 8

SCREW - hex, 5/16 NF x 1-1/2 inch (Replaces screw 21512R1)

3шт.

40

675609C2

GASKET

- injection pump mounting adapter

1шт.

329-116

NUT,3/8"-24, G8

(Replaces nut 25523R1) 3/8"-24, G8

2шт.

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

(Replaces bolt 25232R1) Hex, 5/16"-18 x 2", G8

1шт.

326-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

Adapter to front cover (Replaces bolt 25235R1) Hex, 5/16"-18 x 2 1/2", G8

2шт.

27292R1

BOLT,Hex, 5/16" - 24 x 2 1/4", Gr 8

SCREW - hex, 5/16 NF x 2-1/4 inch

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

3шт.

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

(Replaces washer 25544R1) 13/32" x 13/16" x .134", HDN

2шт.

302861R1

COPPER WASHER,8.33mm ID x 14.28mm OD x 1.58mm Thk

- flat, copper

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 25533R1 and 27326R1)

2шт.

676942C93

ADAPTER

ASSEMBLY - injection pump mounting, Includes: Ref. 42 - 45

1шт.

42

680481C1

PIN

- dowel, 1/4 x 5/8 inch

2шт.

43

NSS

NOT SOLD SEPARAT

ADAPTER - injection pump, order adapter assembly 676942C93

1шт.

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - adapter, hex socket, 3/4 inch PT (Replaces plug 9409949)

1шт.

44

256333R1

STUD

- pump mounting

2шт.

45

19968R1

DOWEL,3/4" x 1 3/4"

PIN - dowel, 3/4 x 1-3/4 inch

1шт.

46

676936C1

SPACER

- tachometer plate

2шт.

47

676938C1

GEAR

- tachometer drive, 32 teeth

1шт.

48

676937C1

PLATE

- tachometer thrust drive

1шт.

232-4615

LOCK NUT,5/16"-24, GC

NUT, LOCK, (Replaces nut 273767) 5/16"-24, GC

2шт.

49

676922C2

GEAR

- injection pump, 33 teeth

1шт.

50

444684

PLUG

- pipe, no longer used

1шт.

51

388922R2

CLIP

- electrical cable, used with 886 tractors

1шт.

27431R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

- hex lock, 3/8 NC x 1/2 inch, grade 8

1шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

52

687426C1

ADAPTER,1/4" NPT x 5/8" - 24 NPT

FITTING - fuel return tube orifice (Replaces fitting 606819C1 in fuel return line by also ordering elbow 217-21)

1шт.

680246CX

LARGE HOSE

HOSE - bulk, 120 inch (3048 mm) roll, sold by the foot

1шт.

Выбрано товаров: 93
