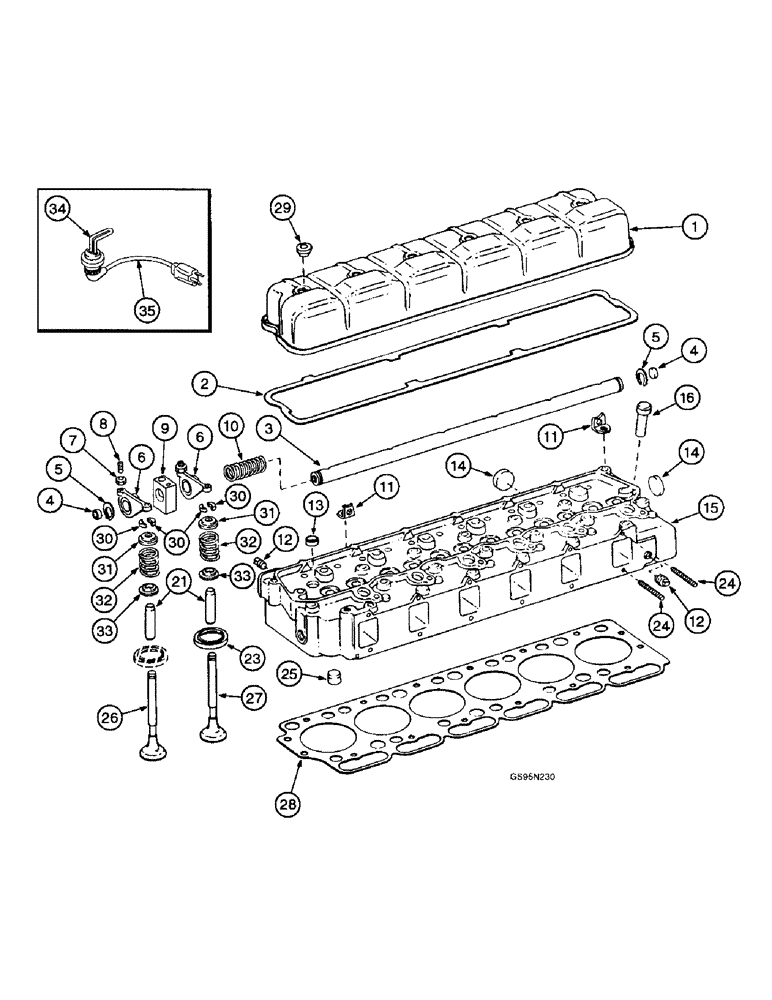

Запчасти Case IH D-360 (9B-14) - CYLINDER HEAD AND RELATED PARTS / ENGINE BLOCK HEATER

1

676156C2

COVER ASSY

COVER - valve

1шт.

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

(Replaces bolt 25654R1) Hex, 5/16"-18 x 1 1/2", G8

6шт.

2

675389C1

GASKET

- valve cover

1шт.

3

675661C92

SHAFT

- rocker arm

1шт.

4

41-109

PLUG,Cup, 9/16"

- rocker arm shaft (Replaces plug 291171C1)

2шт.

5

100-1184

SNAP RING,#84, Ext

Ring, Snap, (Replaces ring 24577R1) #84, Ext

2шт.

6

682260C91

LEVER

ARM - valve rocker, engines serial numbers, Serial Range: prior-13716

12шт.

6

1820830C92

ROCKER

ARM - valve rocker, engines serial number 13716 and after (Replaces arm 688999C93)

12шт.

7

133093R1

NUT,Hex, 3/8" - 24

- adjusting screw

1шт.

8

16067DA

ADJUSTMENT SCREW,3/8" - 24

- rocker arm adjusting

1шт.

9

675536C2

BRACKET

- rocker arm shaft

6шт.

10

675105C1

SPRING

- rocker arm shaft

5шт.

11

675455C1

EYE

- lifting

2шт.

25830R1

BOLT,Hex, 9/16" - 12 x 1 1/4", Gr 8

SCREW - hex, 9/16 NC x 1-1/4 inch (Replaces screw 24648R1)

2шт.

12

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

PLUG - square socket, magnetic, 1/2 inch PT (Replaces plug 445751)

2шт.

13

41-1618

PLUG,Cup, 1 1/8", Stainless

- cup, 1-1/8 inch (Replaces plug 21427R1)

7шт.

14

41-1624

PLUG,Cup, 1 1/2", Stainless

- cup, 1-1/2 inch (Replaces plug 601093C1)

6шт.

749631C91

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder, remanufactured for 680392C92 (North America only), component parts do not apply to the remanufactured assembly, used with 766 and 886 tractors and 453 hillside combines

1шт.

1928107C1

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return cylinder head for credit when using a remanufactured assembly

1шт.

680392C91

HEAD

ASSEMBLY - cylinder, new, no longer used, order head assembly 749631C91 above, Includes: Ref. 15 - 25

1шт.

15

NSS

NOT SOLD SEPARAT

HEAD - cylinder, order head assembly

1шт.

16

675442C1

SLEEVE

- injector

6шт.

21

675439C1

GUIDE

- valve

12шт.

23

671599C2

SEAT, VALVE

INSERT - exhaust valve seat, .002 inch oversize

6шт.

ONLY THE EXHAUST VALVE SEAT IS SERVICED. IT IS THE PART THAT GETS ALL THE HEAT AND DAMAGE. THE INTAKE VALVE SEAT NEVER WAS SERVICED ON THIS ENGINE. per mh 12-14-99

1шт.

23

671601C1

INSERT - exhaust valve seat, .015 inch oversize, no longer available

6шт.

ONLY THE EXHAUST VALVE SEAT IS SERVICED. IT IS THE PART THAT GETS ALL THE HEAT AND DAMAGE. THE INTAKE VALVE SEAT NEVER WAS SERVICED ON THIS ENGINE. per mh 12-14-99

1шт.

24

682840C1

STUD

- manifold, exhaust, no longer available, order bolt 1809774C1

12шт.

25

675045C1

DEFLECTOR

DIRECTOR - water

12шт.

1809774C1

STUD,Hex, 7/16" - 14 x 1.50"

BOLT - hex prevailing torque, 7/16 NC x 1-1/2 inch

12шт.

26

675574C2

LOCK VALVE

VALVE - intake, will work for 675574C1

6шт.

27

675573C3

VALVE

- exhaust, will work for 675573C1

6шт.

682987C1

NUT

- hex, 7/16 inch NC

12шт.

684034C1

WASHER,11.91mm ID x 21.34mm OD x 3.17mm Thk

- flat, 15/32 x 27/32 x 1/8 inch

12шт.

28

179206A1

CYLINDER HEAD GASKET

- cylinder head (Replaces gasket 676967C1)

1шт.

29

1342830C1

SEAL

GROMMET - valve cover (Replaces grommets 313971R1 and 677692C1)

6шт.

30

41339D

KEY

LOCK - valve spring retainer

24шт.

31

682221C92

VALVE

ROTATOR - valve, top (Replaces rotator 1811581C91)

12шт.

1342827C1

SHIELD

- oil (Replaces shield 681234C1)

1шт.

32

682064C1

SPRING

- valve

12шт.

33

675443C1

SEAT

- valve spring

12шт.

676119C1

BOLT

- cylinder head long

6шт.

676120C1

BOLT

- cylinder head short

20шт.

252018R1

WASHER,15.11mm ID x 25.4mm OD x 4.83mm Thk

- cylinder head bolt

26шт.

34

71151C91

HEATER

- engine block, 115 volt, used with 766 and 886 tractors

1шт.

35

A44813

CABLE EXTENSION

CABLE - engine block heater, 12 inch (305 mm) long (Replaces cable 71150C1)

1шт.

Ref #35: A44813 is 1ft. long. For 6ft. long cord, order J905113 or 196466A1. 4/12/02 CJK-TSG

1шт.
