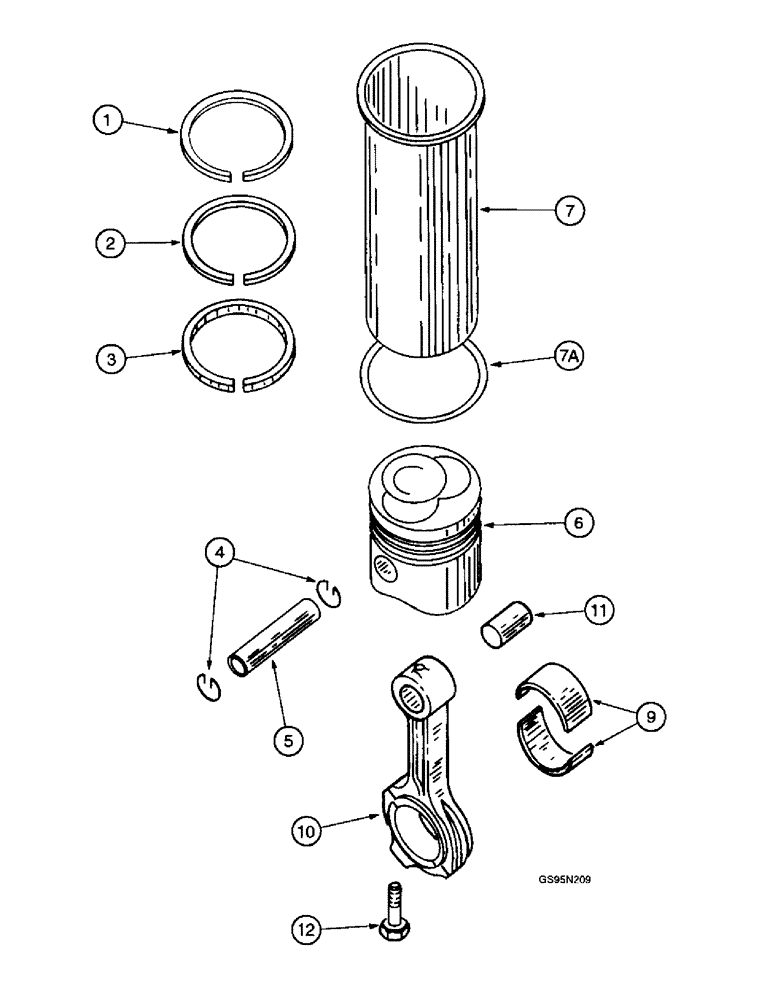

Запчасти Case IH D-360 (9B-10) - CONNECTING RODS, PISTONS AND SLEEVES

671511C93

SLEEVE CYLINDER

SLEEVE ASSEMBLY - cylinder, no longer available, order piston and ring kit 674309C92, Includes: Ref. 1 - 7A

6шт.

674309C92

KIT

- piston ring, Perfect Circle (Replaces ring kits 671512C91and 687014C91), Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression piston, top or first groove, order kit 674309C92

1шт.

re it # 1 - piston marking is 675354c2. ph-cam 8-25-00

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression piston, second groove, order kit 674309C92

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil piston, third or bottom groove, order kit 674309C92

1шт.

4

326874R1

RETAINER

RING - piston pin retaining

2шт.

5

675437C1

PIN

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

PISTON - order sleeve assembly

1шт.

7

A77691

SLEEVE

- cylinder (Replaces sleeve 675356C2)

1шт.

7a

NSS

NOT SOLD SEPARAT

O-RING - cylinder sleeve, order kit 680085C1

1шт.

680085C1

SET

KIT - cylinder sleeve O-ring

1шт.

Ref# 7A-a - Kit P/N 680085C1 consists of 3 O-rings. quantity required should read "2". (db) CAM 8-20-98

1шт.

680332C92

SHIM

KIT - cylinder sleeve shim, Includes: Shims Listed Below

2шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.002 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.004 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.010 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.020 inch

1шт.

NSS

NOT SOLD SEPARAT

SHIM - cylinder sleeve, 0.032 inch

2шт.

9

681314C3

BEARING SET

BEARING - connecting rod, two halves, standard

6шт.

9

681315C3

BEARING SET

- connecting rod, two halves, 0.010 inch undersize

6шт.

9

687382C3

BEARING SET

- connecting rod, two halves, 0.020 inch undersize

6шт.

9

681316C3

BEARING SET

- connecting rod, two halves, 0.030 inch undersize

6шт.

10

735238C91

REMAN-CONNECTING ROD

ROD ASSEMBLY - connecting, remanufactured (North America only), component parts do not apply to the remanfactured assembly, no longer available

6шт.

10

1928149C1

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return rods for credit when using a remanufactured assembly, no longer used

6шт.

10

672116C91

ROD

ASSEMBLY - connecting, new, Includes: Ref. 11 & 12

6шт.

11

675899C1

BUSHING

- piston pin

1шт.

12

676679C2

BOLT

- connecting rod

2шт.
