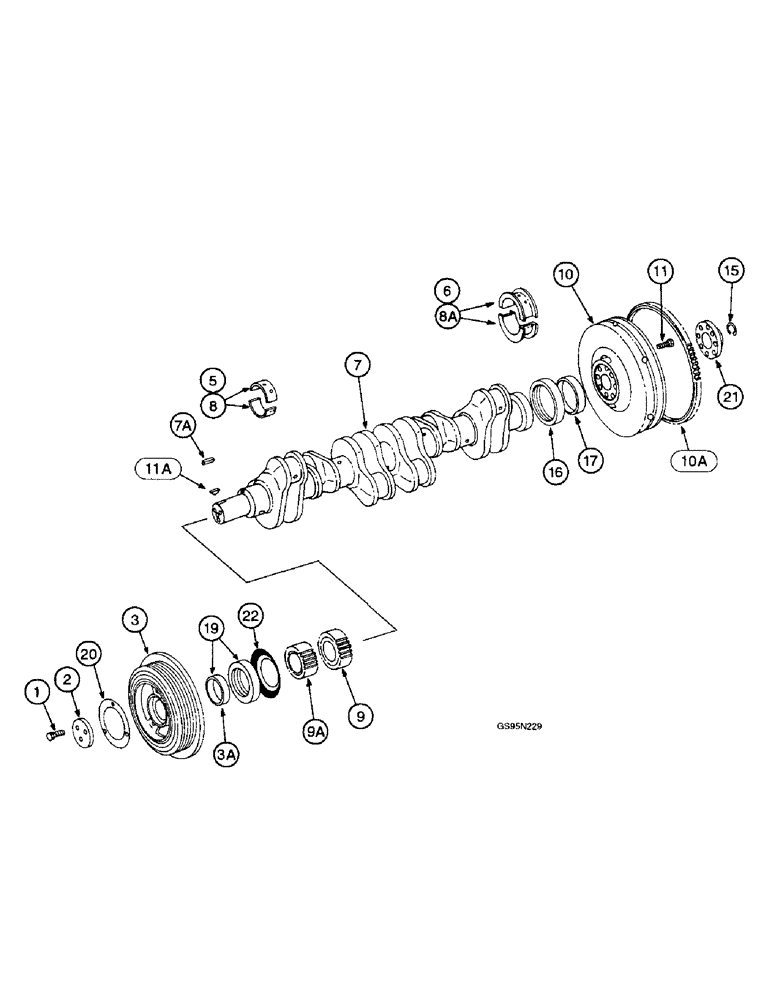

Запчасти Case IH D-360 (9B-08) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

(Replaces bolt 24862R1) Hex, 1/2"-13 x 1 1/2", G8, Full Thd

3шт.

2

675412C1

PLATE

- damper retaining

1шт.

3

680275C92

PULLEY

DAMPER ASSEMBLY - vibration, Includes: Ref. 3A

1шт.

3a

NSS

NOT SOLD SEPARAT

SLEEVE - wear, order assembly 680275C92 or kit 690437C93

1шт.

5

684555C94

BEARING SET

BEARING - crankshaft main, front and intermediate, two halves, 0.010 inch undersize

6шт.

5

687385C4

BEARING SET

- crankshaft main, front and intermediate, two halves, 0.020 inch undersize

6шт.

5

684558C93

BEARING SET

- crankshaft main, front and intermediate, two halves, 0.030 inch undersize

6шт.

6

684564C94

BEARING SET

- crankshaft main, rear, two halves, 0.010 inch undersize

1шт.

6

687388C4

BEARING SET

- crankshaft main, rear, two halves, 0.020 inch undersize, no longer available separately, order bearing kit 243663A1

1шт.

6

684567C93

BEARING SET

- crankshaft main, rear, two halves, 0.030 inch undersize

1шт.

735221C91

CRANKCASE

CRANKSHAFT ASSEMBLY - standard, remanufactured (North America only), component parts do not apply to the remanufactured assembly, no longer available, order assembly 749658C91

1шт.

749658C91

REMAN-CRANKSHAFT

CRANKSHAFT ASSEMBLY - remanufactured (North America only), 0.010 undersize, component parts do not apply to the remanufactured assembly, no longer available

1шт.

1928173C1

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft for credit when using a remanufactured assembly, no longer used

1шт.

681321C93

CRANKSHAFT ASSEMBLY - standard, new, no longer available

1шт.

7

NSS

NOT SOLD SEPARAT

CRANKSHAFT - standard, order crankshaft assembly 681321C93, Includes: Ref. 7 - 9A

1шт.

7a

17135R1

LOCK PIN,5/32" x 5/16", Slotted

PIN, 5/32" x 5/16", Slotted

1шт.

8

684552C94

BEARING SET

- crankshaft main, front and intermediate, two halves, standard, order main bearing kit 243661A1

6шт.

8a

684561C94

BEARING SET

- crankshaft main, rear, two halves, standard, order main bearing kit 243661A1

1шт.

681314C3

BEARING SET

BEARING - crankshaft, standard

6шт.

9

675406C1

GEAR

- crankshaft, 32 teeth

1шт.

9a

675364C1

GEAR

SPLINE - oil pump drive, 41 teeth

1шт.

10

672211C91

FLY JIB

FLYWHEEL ASSEMBLY - used with 766 tractors and 886 tractors, Includes: Ref. 10A

1шт.

10

672807C91

FLYWHEEL ASSEMBLY - used with 453 combines, Includes: Ref. 10A

1шт.

10a

341604R1

GEAR

- ring, used with flywheel assembly 672211C91

1шт.

10a

1818739C1

GEAR

- ring, used with flywheel assembly 672807C91 (Replaces gear 304439R1)

1шт.

11

25277R1

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 8

- hex, 1/2 NC x 1-5/8 inch, grade 8, used with 766 tractors and 886 tractors

8шт.

11

25282R1

BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 8

- hex, 1/2 NC x 2-3/4 inch, grade 8, used with 453 combines

8шт.

685902C1

WASHER

- hardened

8шт.

11a

691044C1

KEY

- vibration damper, 5/16 x 1 inch (Replaces key 124554)

1шт.

15

100-21206

SNAP RING,2.062", Int, #206

Ring, Snap, , Used with 766 tractors and 886 tractors 2.062", Int, #206

1шт.

15

100-21112

SNAP RING,1.125", Int, #112

Ring, Snap, , Used with 453 combines 1.125", Int, #112

1шт.

1809964C92

OIL SEAL

KIT - rear seal and wear sleeve (Replaces kits 678529C91 and 678554C91)

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - crankshaft rear oil, order kit 1809964C92

1шт.

17

NSS

NOT SOLD SEPARAT

SLEEVE - oil seal wear, order kit 1809964C92

1шт.

19

690437C94

SEAL KIT

KIT - front seal and wear sleeve (Replaces kit 680119C2)

1шт.

20

684431C1

PLATE

- vibration damper

1шт.

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

(Replaces bolt 24839R1) Hex, 3/8"-16 x 3/4", G8, Full Thd

3шт.

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

3шт.

21

683662C1

FLANGE

- propulsion drive, used with 453 combines

1шт.

22

687024C1

SEALING WASHER

WASHER - seal

1шт.
