Запчасти Case IH D-358 (04-09) - PISTON AND CYLINDER SLEEVE

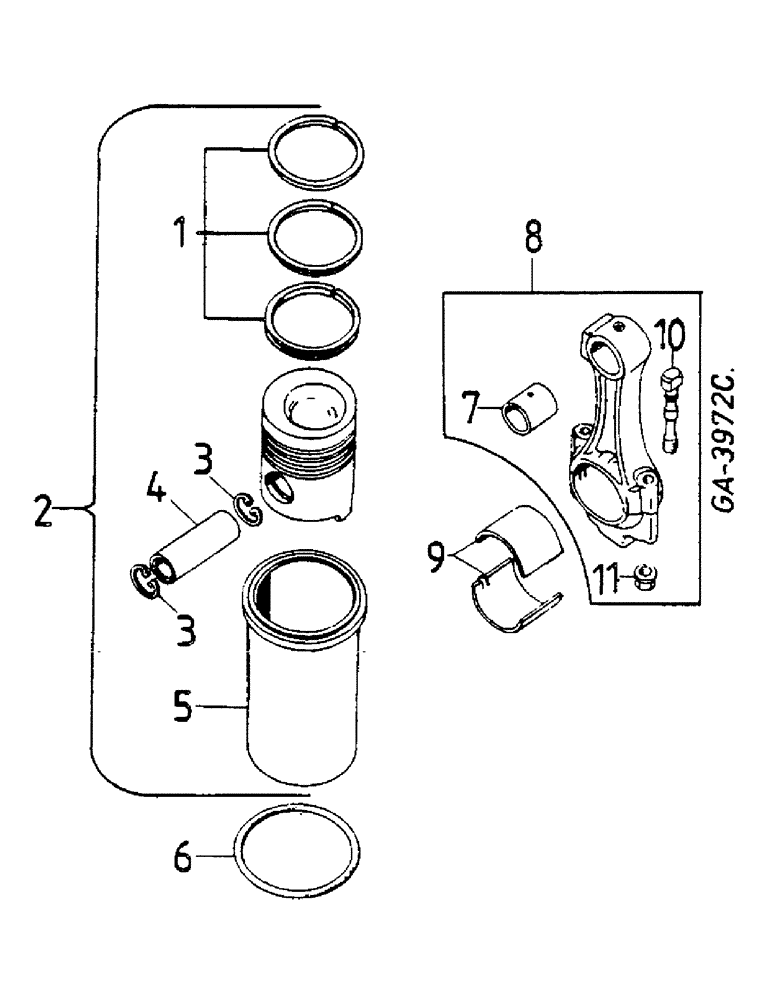

Схема запчастей Case IH D-358 - (04-09) - PISTON AND CYLINDER SLEEVE
3
11
7
5
4
9
10
6
8
2
1
3

Артикул

Название

Примечание

Количество

1

3139594R91

PISTON RING

COMPRESSION, UNIT I

4шт.

1

3139594R91

PISTON RING

COMPRESSION, UNIT II : QTY 6

6шт.

1

3218416R2

RING, COMPRESSION, UNIT I - D-239 - 684 UP TO S/N 668610 - D-358 - 1055 UP TO S/N 035101 - 955 UP TO S/N 075586

4шт.

1

3218416R2

RING, COMPRESSION, UNIT II - D-239 - 684 UP TO S/N 668610 - D-358 - 1055 UP TO S/N 035101 - 955 UP TO S/N 075586

6шт.

1

3218416R92

PISTON RING SET

COMPRESSION, UNIT I : 262 F.A.I.

4шт.

2

3139591R96

PISTON & RINGS KIT

UNIT I

4шт.

2

3139591R96

PISTON & RINGS KIT

UNIT II

6шт.

2

3218759R95

SLEEVE ASSY

PISTON, UNIT I - D-239 - 684 UP TO S/N 668610 - D-358 - 1055 UP TO S/N 035101 - 955 UP TO S/N 075586 - CONSISTS OF ITEMS 1, 3, 4, 5

4шт.

2

3218759R95

SLEEVE ASSY

PISTON, UNIT II - D-239 - 684 UP TO S/N 668610 - D-358 - 1055 UP TO S/N 035101 - 955 UP TO S/N 075586 - CONSISTS OF ITEMS 1, 3, 4, 5

6шт.

3

933327R1

SNAP RING,M36, Int

RETAINING, UNIT I

8шт.

3

933327R1

SNAP RING,M36, Int

RETAINING, UNIT II

12шт.

4

3055217R2

PISTON PIN

PISTON, UNIT I

4шт.

4

3055217R2

PISTON PIN

PISTON, UNIT II

6шт.

5

3139592R4

SLEEVE CYLINDER

UNIT I

4шт.

5

3139592R4

SLEEVE CYLINDER

UNIT II

6шт.

6

3228348R1

RING,4.75mm Thk x 109.16mm ID

UNIT I

4шт.

6

3228348R1

RING,4.75mm Thk x 109.16mm ID

UNIT II

6шт.

6

3228344R1

SEALING RING,5mm Thk x 110mm ID

UNIT I - D-239 - 684 UP TO S/N 667840 - D-358 - 955 UP TO S/N 075352 - 1055 UP TO S/N 034649

4шт.

6

3228344R1

SEALING RING,5mm Thk x 110mm ID

UNIT II - D-239 - 684 UP TO S/N 667840 - D-358 - 955 UP TO S/N 075352 - 1055 UP TO S/N 034649

6шт.

7

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

PISTON PIN, UNIT I

4шт.

7

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

PISTON PIN, UNIT II

6шт.

8

3055030R24

ROD, CONNECTING

WITH ITEM/AVEC PIECE/MIT HINW 7, 10 + 11 - UNIT I

4шт.

8

3055030R24

ROD, CONNECTING

WITH ITEM/AVEC PIECE/MIT HINW 7, 10 + 11 - UNIT II

6шт.

9

3132101R91

BEARING SET

STANDARD SIZE, UNIT II - FOR CRANKSHAFT ONLY 3136036R95

6шт.

9

3055351R91

BEARING ASSY

CONNECTING ROD, UNIT II - UP TO S/N XXXXX - FOR CRANKSHAFT W/OUT MARK "N"

6шт.

9

3055351R91

BEARING ASSY

CONNECTING ROD, UNIT I

4шт.

9

3136203R11

BEARING ASSY

BEARING, CON. ROD UNDERSIZE 0.25 MM, UNIT II - FOR CRANKSHAFT ONLY 3136036R95

6шт.

9

3056834R11

BEARING ASSY

UNDERSIZE 0.25 MM, UNIT I

4шт.

9

3056834R11

BEARING ASSY

UNDERSIZE 0.25 MM, UNIT II - UP TO S/N XXXXX - FOR CRANKSHAFT W/OUT MARK "N"

6шт.

9

3136329R11

BEARING ASSY

BEARING, CON. ROD UNDERSIZE 0.50 MM, UNIT II - FOR CRANKSHAFT 3136036R95

6шт.

9

3056879R11

BEARING ASSY

UNDERSIZE 0.50 MM, UNIT I - UP TO S/N XXXXX - FOR CRANKSHAFT W/OUT MARK "N"

4шт.

9

3056879R11

BEARING ASSY

UNDERSIZE 0.50 MM, UNIT II - UP TO S/N XXXXX - FOR CRANKSHAFT W/OUT MARK "N"

6шт.

9

3056879R11

BEARING ASSY

UNDERSIZE 0.05 MM, UNIT I

4шт.

9

3055781R11

BEARING ASSY

UNDERSIZE 0.75 MM, UNIT I - UP TO S/N XXXXX - FOR CRANKSHAFT W/OUT MARK "N"

4шт.

9

3055781R11

BEARING ASSY

UNDERSIZE 0.75 MM, UNIT II- UP TO S/N XXXXX - FOR CRANKSHAFT W/OUT MARK "N"

6шт.

10

3055033R11

BOLT

Connecting rod, CPTE with Item 11, Unit I

8шт.

10

3055033R11

BOLT

Connecting rod, CPTE with Item 11, Unit II

12шт.

11

NSS

NOT SOLD SEPARAT

NUT

1шт.

Выбрано товаров: 38
