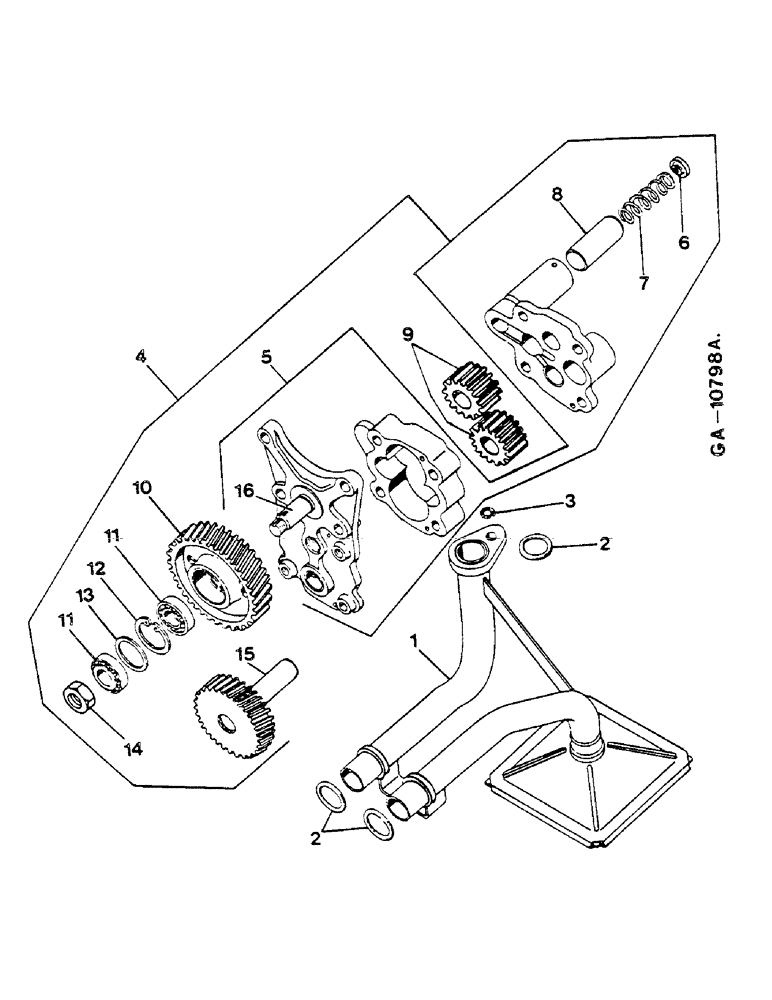

Запчасти Case IH D-358 (13-02) - OIL PUMP
№
Артикул
Название
Примечание
Количество
1
3132773R94
PIPE
MANIFOLD, W/SUCTION SCREEN - UNIT I - D-155 : 433, 533, V, E, SU - D-179 : 633, V, E, SU
1шт.
1
3132828R94
PIPE ASSY.
MANIFOLD, W/SUCTION SCREEN - UNIT I - D-179 : 248, 484, 2530TC
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
1
3132779R94
PIPE
MANIFOLD, W/SUCTION SCREEN - UNIT II - D-206 : 733, V, E, - D-239 : 743+XL - D-239 : 745S, 745XL
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
24933R1
HEX SOC SCREW,7/16"-14 x 3 3/4"
1шт.
1
3132781R94
PIPE ASSY.
MANIFOLD, W/SUCTION SCREEN - UNIT II - D-239 : 262 F.A.I. - D-206 : 258-585XL - D-239 : 268-685XL - D-246 : H84-785XL
1шт.
24933R1
HEX SOC SCREW,7/16"-14 x 3 3/4"
1шт.
3218543R1
LOCK WASHER
UNIT II
1шт.
1
3132783R94
PIPE
MANIFOLD, W/SUCTION SCREEN D-239 : SU-644 - UNIT II
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
103883
PIPE PLUG,Slotted, Headless, 1/8" NPT
UNIT II
1шт.
1
3144718R94
TUBE
MANIFOLD, W/SUCTION SCREEN - UNIT II - D-268 : 844S, 845, 844XL, 845XL
1шт.
1
3228039R2
PIPE ASSY.
MANIFOLD, W/SUCTION SCREEN - UNIT II - D-268 : 884, 885XL
1шт.
3144722R1
HEX SOC SCREW
7/16 X 127 MM
1шт.
3218543R1
LOCK WASHER
UNIT II
1шт.
1
3144396R93
PIPE
MANIFOLD, W/SUCTION SCREEN - UNIT III - D-310 : 955
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
1
3136014R94
PIPE
MANIFOLD, W/SUCTION SCREEN D-358 : 923, 933, 1420 - DT-358 : 943 - DT-402 : 953HD - UNIT III
1шт.
1
3138695R94
PIPE
MANIFOLD, W/SUCTION SCREEN - UNIT III - DT-358 : 858F
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
1
3228738R91
MANIFOLD
W/SUCTION SCREEN - UNIT III - DT-239 : 856XL
1шт.
24933R1
HEX SOC SCREW,7/16"-14 x 3 3/4"
1шт.
3218543R1
LOCK WASHER
1шт.
2
3228577R1
O-RING,3.1mm Thk x 24.5mm ID, Cl 7
3шт.
3
717222R1
O-RING
UNIT II
1шт.
4
3136429R95
PUMP, ENGINE OIL
UNIT I
1шт.
4
3136430R95
PUMP, ENGINE OIL
UNIT II
1шт.
4
3136431R95
PUMP, ENGINE OIL
D-239 : SU-644 ONLY - UNIT II
1шт.
4
3136432R95
PUMP, ENGINE OIL
DT-358, DT-402, DT-239 - UNIT II AND III
1шт.
4
3136433R95
ENGINE OIL PUMP
D-310, D-358 - - UNIT III - ITEM 4 WITH ITEMS 5 - 8 + 10 -16
1шт.
21035R1
HEX SOC SCREW,5/16"-18 x 1"
4шт.
5
3136435R95
HOUSING ASSY.
CASE, OIL PUMP - UNIT I, WITH REF. 6 - 8 & 16
1шт.
5
3136441R95
HOUSING ASSY.
CASE, OIL PUMP - UNIT II, WITH REF. 6 - 8 & 16
1шт.
5
3136445R95
CARRIER
CASE, OIL PUMP D-310, D-358 - - UNIT III, WITH REF. 6 - 8 & 16
1шт.
5
3136451R95
HOUSING
CASE, OIL PUMP, DT-358, DT-402, DT-239 - UNIT II & III, WITH REF. 6 - 8 & 16
1шт.
179823
BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5
- Unit I
4шт.
13-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
Unit II
4шт.
179828
BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5
Unit II, III
4шт.
9635082
NUT,5/16" - 18, Gr 5
4шт.
103387
COTTER PIN,1/8" x 1 1/2"
3 x 38 mm
1шт.
932597R1
LOCK PIN,M10 x 14, Slotted
Roll
3шт.
6
3139620R1
SPRING WASHER
CAP, RETAINER, VALVE SPRING - NOT DT-239
1шт.
7
3055201R1
SPRING
PRESSURE DT-358, DT-402 - UNIT III
1шт.
7
3136264R1
SPRING
PRESSURE - NOT DT-239
1шт.
8
3055202R2
VALVE
RELIEF - NOT DT-239
1шт.
9
3136440R91
GEAR-SET
OIL PUMP, UNIT I
1шт.
9
3132503R91
GEAR-SET
OIL PUMP, UNIT II
1шт.
9
3136450R91
GEAR-SET
OIL PUMP, UNIT III
1шт.
9
3136450R91
GEAR-SET
OIL PUMP, UNIT II - DT-239
1шт.
10
3055291R1
PINION
GEAR, IDLER - UNIT I AND II
1шт.
10
3056852R1
GEAR
IDLER (D-239 : SU-644, DT-239 : 856XL) - UNIT I AND II
1шт.
10
3056852R1
GEAR
IDLER - UNIT III
1шт.
11
3055294R91
TAPERED BEARING
TAPER
2шт.
12
933579R1
SNAP RING,M35, Int
Retainer
1шт.
13
3055292R1
WASHER
1шт.
14
3228141R1
LOCK NUT
1шт.
15
3136437R91
PINION
GEAR, UNIT I
1шт.
15
3136442R91
PINION
UNIT II
1шт.
15
3136444R91
GEAR
D-239 : SU-644 ONLY - UNIT II
1шт.
15
3136446R91
GEAR
UNIT III
1шт.
15
3136446R91
GEAR
UNIT II
1шт.
16
3055297R5
AXLE
SHAFT
1шт.
Выбрано товаров: 70
