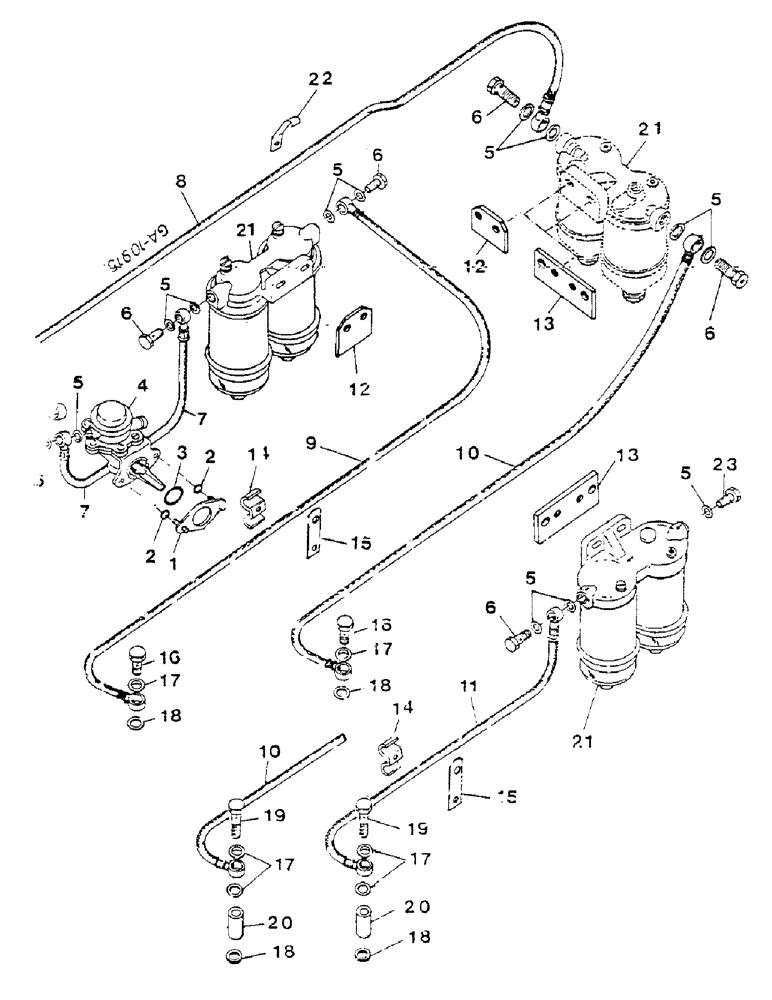

Запчасти Case IH D-358 (11-060) - FUEL FILTER AND LINES

1

3055391R1

FLANGE, FEED PUMP - 923, 933, 943, 953

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

933682R1

BELLEVILLE WASHER,M6 Bolt Size x 12.6mm OD x 0.7mm Thk

LOCK 6MM

2шт.

2

3132869R1

O-RING

2шт.

3

3228345R1

O-RING

1шт.

4

NSS

NOT SOLD SEPARAT

PUMP, FEED, NATURALLY ASPIRATED ENGINES

1шт.

5

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

1шт.

6

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

HOLLOW M14

1шт.

7

3218852R1

FUEL HOSE,210.00 mm

923, 933

1шт.

8

3218529R1

FUEL HOSE,1400.00 mm

943, 953

1шт.

9

3218851R1

HOSE

923, 933

1шт.

10

3218530R1

HOSE

1250 MM - 943, 953

1шт.

11

3228124R1

TUBE,240, 205 mm Length

1420

1шт.

12

3059289R1

PLATE

SPACER - 923, 933, 943

1шт.

13

3144325R1

PLATE

SPACER - 953, 1420

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

2шт.

14

3055386R1

CLAMP

2шт.

15

3055458R1

LARGE PLATE

PLATE, LARGE LINK, FIXING

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

2шт.

103320

LOCK WASHER,5/16"

1шт.

103321

LOCK WASHER,3/8"

1шт.

16

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

HOLLOW M12

1шт.

17

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

1шт.

18

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

19

3216451R1

SCREW

HOLLOW M12 - 953, 1420

1шт.

20

3218465R1

SPACER

BUSHING

1шт.

21

NSS

NOT SOLD SEPARAT

FILTER, FUEL - 953, 1420 - BOSCH/CAV

1шт.

22

3132032R1

CLAMP, - 943, 953

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

10332

WASHER

LOCK 5/16

1шт.

23

886125C1

ADAPTER

SCREW, HOLLOW 1/4 X M14 - 1420

1шт.
