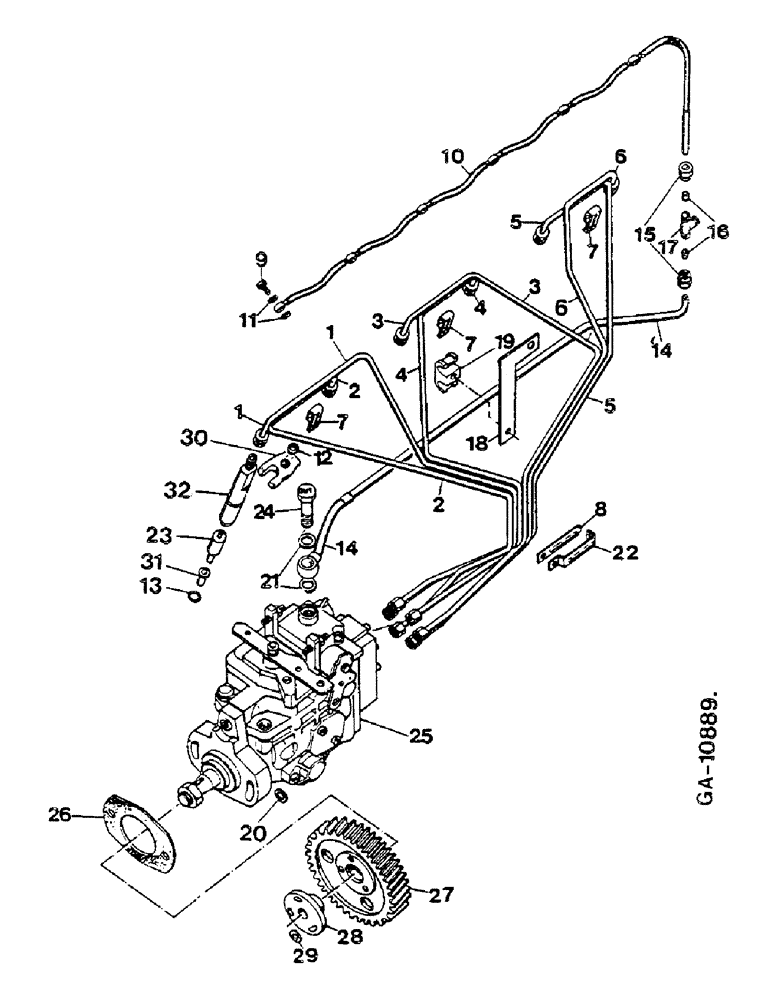

Запчасти Case IH D-358 (11-026) - INJECTION PUMP, INJECTION LINES, NOZZLE HOLDER

1

3228117R1

PIPE

INJECTION CYLINDER 1

1шт.

2

3228118R1

PIPE

INJECTION CYLINDER 2

1шт.

3

3228119R1

PIPE

INJECTION CYLINDER 3

1шт.

4

3228121R1

PIPE

INJECTION CYLINDER 4

1шт.

5

3228122R1

PIPE

INJECTION CYLINDER 5

1шт.

6

3228123R1

PIPE

INJECTION CYLINDER 6

1шт.

7

3132770R1

COLLAR

3шт.

7

3218241R1

CLAMP

MOULDED RUBBER INSERT

3шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

3шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

8

3132839R1

CLAMP

PIPE, LOWER PART

1шт.

8

3218244R1

CLAMP

MOULDED RUBBER INSERT

1шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

9

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

HOLLOW M6

6шт.

10

3218122R1

LINE

HOSE, LEAK

1шт.

11

933696R1

SEALING RING,M6 x 10 x 1

Packing

12шт.

12

3218129R1

WASHER

6шт.

13

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

6шт.

14

3218909R1

TUBE

HOSE, OVERFLOW

1шт.

15

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

COUPLING

2шт.

16

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

CUTTING

2шт.

17

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

T

1шт.

18

3055678R1

PLATE

BRACKET, ANGLE

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

1шт.

103321

LOCK WASHER,3/8"

1шт.

19

3055386R1

CLAMP

2шт.

20

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

2шт.

21

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

22

3132838R1

BRACKET

1шт.

23

3218248R2

NOZZLE CAP

6шт.

24

3079344R1

BANJO BOLT

STOP, OVERFLOW M12

1шт.

25

NSS

NOT SOLD SEPARAT

PUMP, INJECTION

1шт.

103320

LOCK WASHER,5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

933967R1

LOCK WASHER,M14

M14

1шт.

3141587R2

NUT

LOCK 14 MM

1шт.

26

3055384R1

GASKET

1шт.

27

3218450R1

GEAR

INJECTION PUMP

1шт.

28

3218451R2

HUB

PUMP GEAR

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 X 19 MM

3шт.

29

30183R1

WASHER,M8 x 21.5 x 2.5, HT

3шт.

30

3218128R1

RETAINER

6шт.

24477R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

6шт.

31

3132028R1

SLEEVE,6.2mm ID x 16.5mm OD x 24.5mm L

SLEEVE, INSULATING 2700 RPM ONLY

6шт.

32

NSS

NOT SOLD SEPARAT

HOLDER, INJECTION NOZZLE

6шт.
