Запчасти Case IH D-358 (07-11) - CRANKSHAFT, 6 CYLINDER

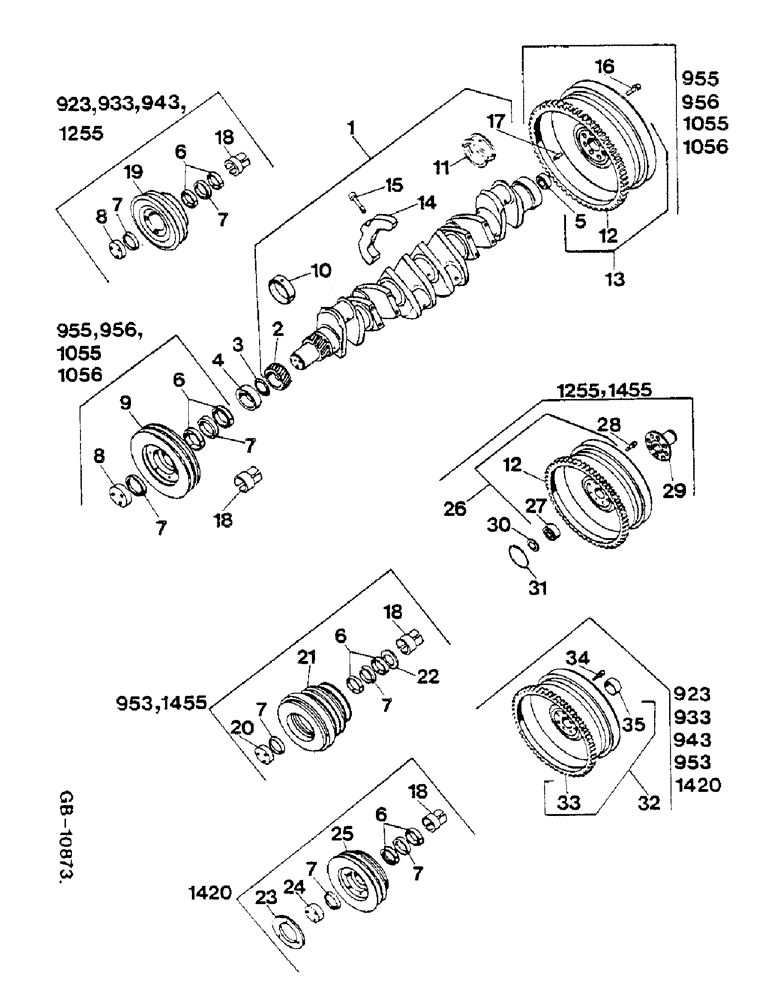

Схема запчастей Case IH D-358 - (07-11) - CRANKSHAFT, 6 CYLINDER
7
6
3
11
9
10
4
17
26
27
15
8
21
24
31
12
28
5
20
6
7
19
18
2
7
23
8
13
12
18
6
22
29
33
7
35
7
32
16
25
7
34
6
18
14
18
7
7
30

Артикул

Название

Примечание

Количество

1

3059757R93

CRANKSHAFT BEARING

W/CONNECTING ROD BEARINGS - D-310 : 955 UP TO S/N XXX

1шт.

1

3136036R95

CRANKSHAFT BEARING

W/CONNECTING ROD BEARINGS - D-358, DT-358 : 955XL, 956+XL, 1055XL, 923, 933, 943, 858F, 1255+XL

1шт.

1

3136036R95

CRANKSHAFT BEARING

WITH CONNECTING ROD BRGS - MARKED WITH N

1шт.

1

3136036R95

CRANKSHAFT BEARING

W/CONNECTING ROD BEARINGS - D-358 : 1056+XL

1шт.

1

3228424R91

CRANKSHAFT BEARING

W/CONNECTING ROD BEARINGS - DT-402 : 1455+XL, 953HD

1шт.

CRANK PIN WIDTH 44 MM

1шт.

1

3228424R91

CRANKSHAFT BEARING

W/CONNECTING ROD BEARINGS - DT-402: 1455+XL, 953HD - UP TO S/N XXX - ORDER ALSO 6 X 3288423R91 - ITEM 1 WITH 2, 10, 11, 14 + 15

1шт.

CRANK PIN WIDTH 42 MM

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

Roll

1шт.

2

3055028R1

PINION

GEAR, 33 TEETH

1шт.

3

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

4

3228133R93

SEAL KIT

RING, DISTANCE WITH OIL SEAL AND O-RING

1шт.

5

3055299R91

BALL BEARING

BALL

1шт.

6

3055152R91

RING

SPRING, ANNULAR

2шт.

7

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

PRESSURE

2шт.

8

3055154R1

WASHER

PRESSURE

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

9

3132270R95

PULLEY

1шт.

10

3055130R21

CRANKSHAFT BEARING

BEARING, MAIN, STANDARD SIZE

6шт.

10

3056832R21

BEARING ASSY

UNDERSIZE 0.25 MM

6шт.

10

3056877R21

BEARING ASSY

UNDERSIZE 0.50 MM

6шт.

10

3055779R21

BEARING ASSY

UNDERSIZE 0.75 MM - FOR CRANKSHAFT WITH OUT MARK N

6шт.

11

3055129R21

CRANKSHAFT BEARING

MAIN STANDARD SIZE

1шт.

11

3056820R11

BEARING ASSY

MAIN, STANDARD SIZE 0.25 MM

1шт.

11

3056875R11

BEARING ASSY

0.50 MM

1шт.

11

3055776R11

BEARING ASSY

UNDERSIZE 0.75 MM - FOR CRANKSHAFT W/OUT MARK N

1шт.

12

3144607R1

CROWN WHEEL

GEAR, RING

1шт.

13

3218474R92

FLYWHEEL WITH GEAR

WITH ITEM 5, 7, 12 + 16

1шт.

14

NSS

NOT SOLD SEPARAT

ORDER CRANKSHAFT

1шт.

15

3055147R2

BOLT,7/16" - 20 x 42.5mm

SPECIAL - D-310

12шт.

15

3055149R2

BOLT,Pan HD, 7/16" - 20 x 2-3/16", Cl 10.9

SPECIAL - D-358, DT-358, DT-402

1шт.

16

3055156R2

BOLT,1/2" - 20 x 33.5mm

FLYWHEEL

7шт.

17

141242

DOWEL

PIN

1шт.

18

3218394R1

BUSHING

SPRING, ANNULAR 2 X 3055152R91 PLUS 2 X 3055153R1

1шт.

19

3132271R92

PULLEY

1255+XL

1шт.

19

3132270R95

PULLEY

923, 933, 943

1шт.

20

3055154R1

WASHER

PRESSURE, 953

1шт.

20

3139161R1

WASHER

PRESSURE, 1455

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

21

3218926R91

PULLEY

1455

1шт.

21

3218666R1

PULLEY, 953

1шт.

930269R1

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

M8 X 18 MM (953)

8шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 X 20 MM (1455)

8шт.

934006R1

WASHER,M8 x 16 x 1.6

8шт.

22

3218437R1

WASHER,55.5mm ID x 79.5mm OD x 3mm Thk

SPACER, 1455

1шт.

23

3144349R1

RING

1шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

3шт.

103320

LOCK WASHER,5/16"

3шт.

24

3139161R1

WASHER

PRESSURE

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

25

3139162R92

GROOVED PULLEY

1шт.

26

3218924R91

FLYWHEEL

WITH ITEM 12 + 27

1шт.

26

3218997R92

FLYWHEEL

WITH ITEM 12 + 27 - VERSION WITH FLUID CLUTCH

1шт.

27

3228525R91

BALL BEARING

BALL

1шт.

28

3055156R2

BOLT,1/2" - 20 x 33.5mm

FLYWHEEL

7шт.

28

3055497R2

BOLT

FLYWHEEL - VERSION WITH FLUID CLUTCH

7шт.

29

3218999R1

FLANGE

VERSION WITH FLUID CLUTCH

1шт.

30

3147589R1

RING

SHIM, 1.5 MM

1шт.

30

3147587R1

SHIM

3.0 MM

1шт.

30

3147588R1

RING

SHIM, 4.0 MM

1шт.

31

3288526R1

O-RING

1шт.

32

3218572R92

FLYWHEEL

923, 933, 943

1шт.

32

3228034R91

FLYWHEEL

953

1шт.

32

3228113R91

FLYWHEEL

1420

1шт.

32

3218435R91

FLYWHEEL

858F - ITEM 32 WITH 33 - 35

1шт.

33

3055133R1

CROWN WHEEL

GEAR, RING, 923, 933, 943

1шт.

33

3144607R1

CROWN WHEEL

GEAR, RING, 953, 858F

1шт.

33

341604R1

GEAR

RING, 1420

1шт.

34

3055156R2

BOLT,1/2" - 20 x 33.5mm

FLYWHEEL, 923, 933, 943, 953, 858F

7шт.

34

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

Flywheel, 1420

7шт.

35

3218574R1

RING

BUSHING, 923, 933, 943

1шт.

Выбрано товаров: 71
