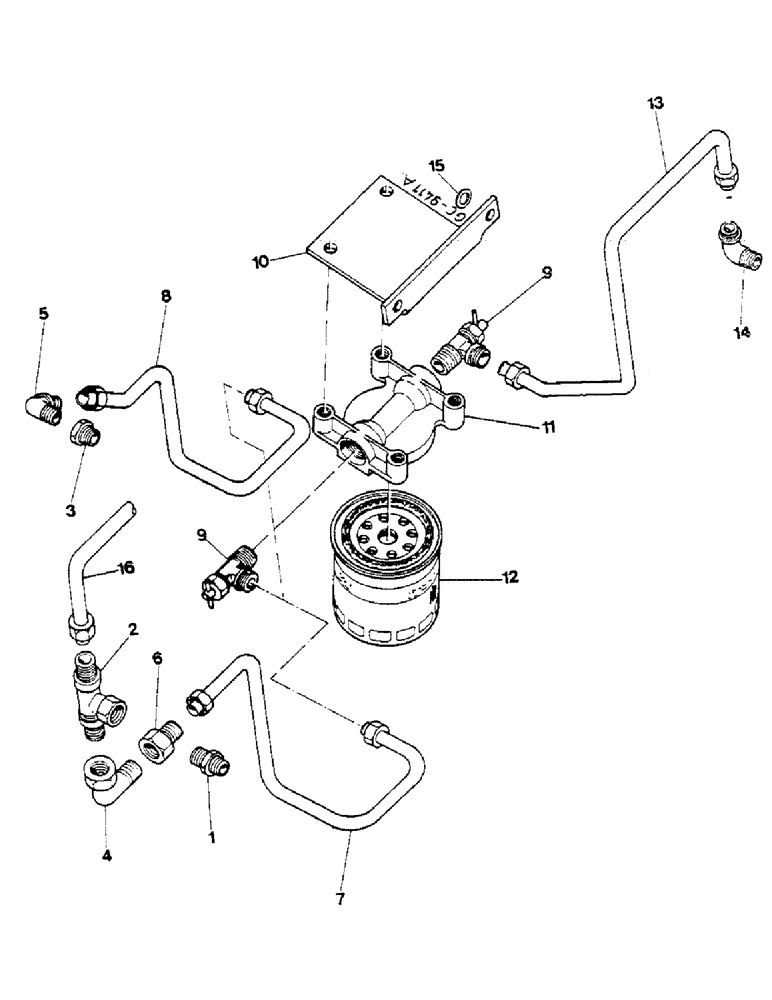

Запчасти Case IH D-358 (05-27) - COOLANT FILTER

1

3220615R1

UNION

UNIT I

1шт.

1

3230134R2

ADAPTER

UNIT II

1шт.

2

3233280R1

TEE,M12

UNIT I

1шт.

2

3142785R1

TEE

UNIT II

1шт.

3

444034

REDUCER,1/2"-14 NPTF x 3/8"-18 Fem NPTF

VERSION W/OUT HEATER - UNIT I

1шт.

4

897617H1

ELBOW

UNIT I

1шт.

4

3230135R2

PIPE FITTING

UNIT II

1шт.

5

606618C1

ELBOW UNION

Union Elbow VERSION W/OUT HEATER - UNIT I

1шт.

6

3233345R1

UNION

UNIT I

1шт.

6

3233208R1

UNION

UNIT II

1шт.

7

3233347R91

TUBE

UNIT I

1шт.

7

3401929R1

TUBE

UNIT II

1шт.

8

3233346R91

TUBE

VERSION W/OUT HEATER - UNIT I

1шт.

9

690191C1

COCK, DRAIN

TAP, WATER

2шт.

10

3228213R1

BRACKET

1шт.

103026

NUT,3/8"-24, G5

2шт.

61-33820

HEX SOC SCREW,3/8"-16 x 1 1/4"

3/8 X 32 MM

4шт.

103321

LOCK WASHER,3/8"

4шт.

11

427446C1

HEAD

COVER

1шт.

12

690171C1

FILTER

1шт.

13

3228214R91

TUBE

1шт.

14

606618C1

ELBOW UNION

Union Elbow

1шт.

15

25543R1

WASHER,.344" x 11/16" x .098", HDN

2шт.

16

NSS

NOT SOLD SEPARAT

TUBE, (HEATER UNIT) - UNIT II - SEE PARTS CATALOG FOR XL-VERSION

1шт.
