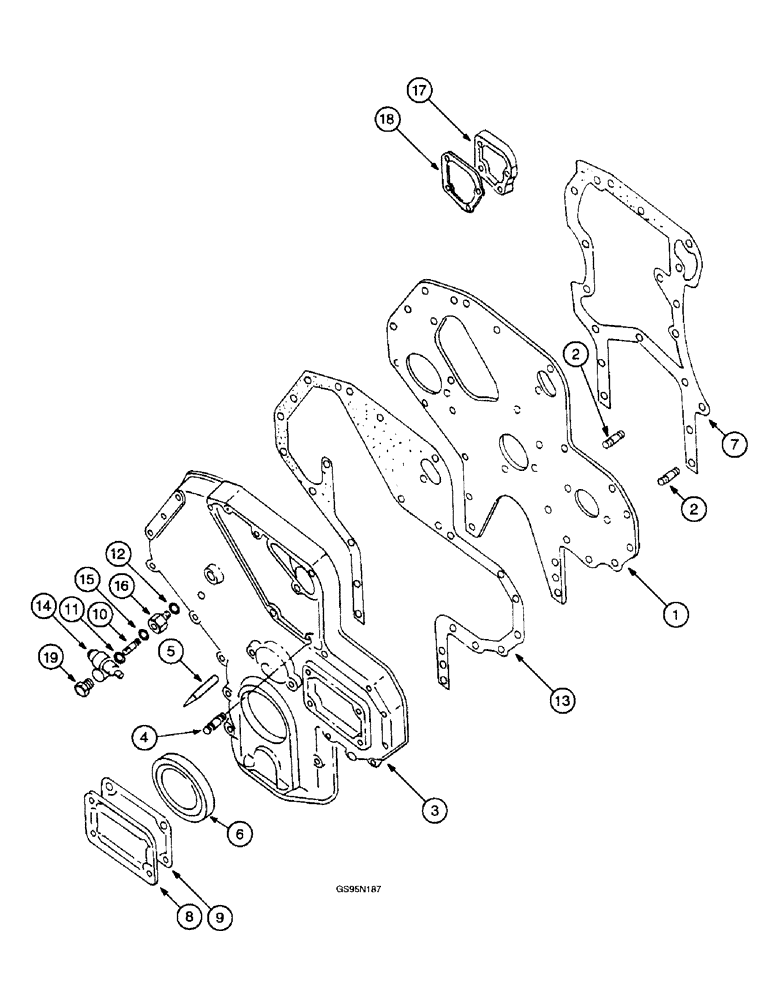

Запчасти Case IH D-358 (6-006) - CRANKCASE FRONT COVER AND RELATED PARTS

1

3132012R11

PLATE

ASSEMBLY - crankcase front, used with all machines except 1420 combines, 1400 cotton harvesters, 3088 tractors and 3288 tractors, no longer available, Includes: Ref. 2

1шт.

1

3055996R11

PLATE ASSY.

PLATE ASSEMBLY - crankcase front, used with 1420 combines, 1400 cotton harvesters, 3088 tractors and 3288 tractors, Includes: Ref. 2

1шт.

2

3055065R1

STUD

- front plate

2шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

7шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

7шт.

3132013R1

SHIM

- front plate

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

2шт.

3

3055995R16

COVER

ASSEMBLY - crankcase front, used with 826 and 2826 tractors (Replaces cover assembly 787591R91), Includes: Ref. 4 & 5

1шт.

3

3218960R91

COVER

ASSEMBLY - crankcase front, used with 786, 886, 3088 and 3288 tractors, Includes: Ref. 4 & 5

1шт.

3

3139160R91

COVER

ASSEMBLY - engine, crankcase front, used with 1400 cotton harvesters and 1420 combines, Includes: Ref. 4 & 5

1шт.

4

3055242R1

STUD

- crankcase front cover

4шт.

5

3056856R1

DOWEL

POINTER - timing, used with cover 3055995R16

1шт.

5

3136912R1

INDICATOR STRIP

POINTER - timing, used with cover 3218960R91, no longer used

1шт.

5

3059231R1

INDICATOR

POINTER - timing, used with cover 3139160R91

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(Replaces screw 179826) Hex, 5/16"-18 x 2", G5

10шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch (Replaces screw 179827)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

5шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC (Replaces nut 102634)

6шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16"), saucer M8.2 ID x 16 OD x .9 Thk

7шт.

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER - lock, 4 mm, timing pointer

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - crankshaft front oil, order kit 3228133R92

1шт.

7

3055239R4

GASKET

- crankcase front cover plate

1шт.

8

3055140R1

COVER

- injection pump

1шт.

95-81067

WASHER,0.34" ID x 0.56" OD x 0.06" Thk

- flat, 11/32 x 9/16 x 1/16 inch (Replaces washer 131402H)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC (Replaces nut 102634)

4шт.

9

3138640R1

GASKET

- injection pump cover (Replaces gasket 3055141R1)

1шт.

10

3056986R1

SUPPORT

COUPLING - tachometer drive, used with 826, 2826, 786, 886, 3088 and 3288 tractors

1шт.

11

3132116R1

NUT

- hex, 18 mm, used with 826, 2826, 786, 886, 3088 and 3288 tractors

1шт.

12

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Packing M18 x 24 x 1.5

1шт.

13

3055994R3

GASKET

- crankcase front cover

1шт.

14

3055982R93

DRIVE, ANGLE

ELBOW - drive angle, tachometer, used with 826, 2826, 786, 886, 3088 and 3288 tractors

1шт.

15

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

SEAL - oil, used with 826, 2826, 786, 886, 3088 and 3288 tractors

1шт.

16

3055983R1

REDUCER FITTING

SPACER - drive angle, tachometer, used with 826, 2826, 786, 886, 3088 and 3288 tractors

1шт.

17

3136049R1

COVER ASSY

COVER - plate, used with 1420 combines, 3088 and 3288 tractors (Replaces cover 3132540R1)

1шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch, 2 used on 3088 and 3288 tractors

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , two used on 3088 and 3288 tractors 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, 2 used on 3088 and 3288 tractors

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16"), used with 1420 combines M8.2 ID x 16 OD x .9 Thk

1шт.

18

3132541R2

GASKET

- cover plate, used with 1420 combines, 3088 and 3288 tractors

1шт.

19

933223R1

PLUG,Hex, M18 x 1.5

- for use without tachometer drive, used with 1400 cotton harvesters and 1420 combines

1шт.
