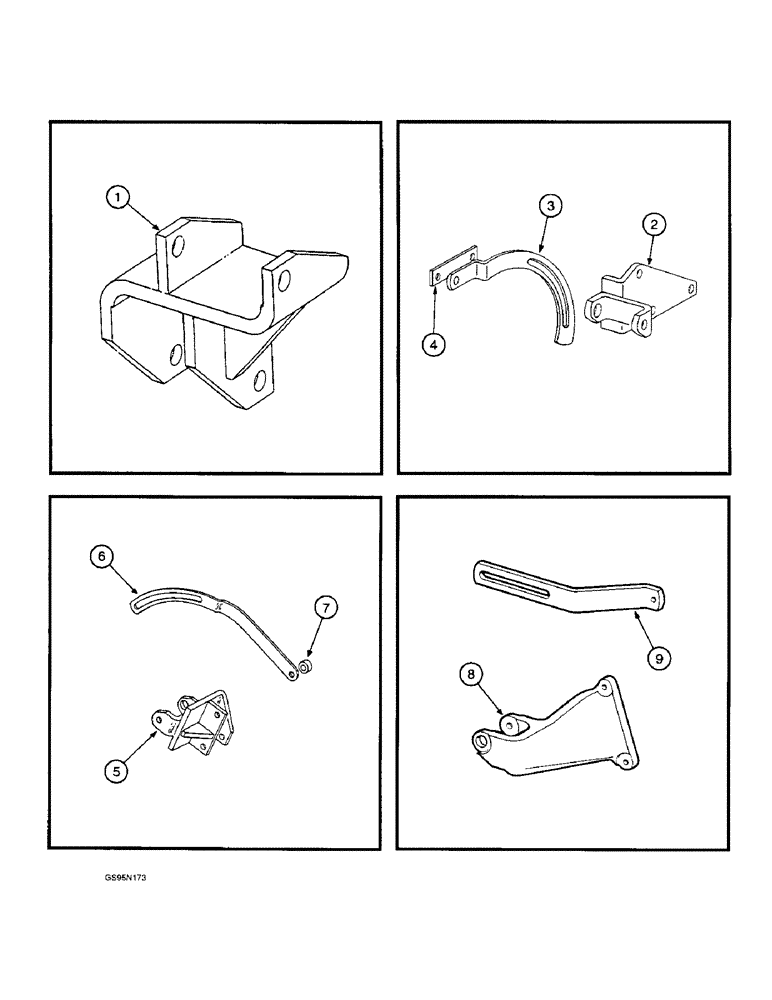

Запчасти Case IH D-358 (6-100) - ALTERNATOR BRACKETS

1

3139173R91

BRACKET

- alternator, 826 & 2826 Tractors, no longer available (Replaces bracket 3132268R12)

1шт.

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened (Replaces washer 30183R1)

1шт.

3399801R1

WASHER

WASHER - alternator bracket

1шт.

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16 NC x 3-1/4 inch (Replaces screw 426444)

1шт.

2

3218234R91

HOLDER

BRACKET - alternator, 786 & 886 Tractors, no longer available

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

1шт.

717547R1

LOCK PIN,M16 x 18, Slotted

PIN - slotted spring

1шт.

3

3218233R1

BRACKET

BRACE - alternator, 786 & 886 Tractors, no longer available

1шт.

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch (Replaces bolt 179829)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

1шт.

4

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

1шт.

413-568

BOLT,Hex, 5/16" - 18 x 4-1/4", Gr 5

- hex, 5/16 NC x 4-1/4 inch (Replaces screw 186273)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

2шт.

5

3218048R2

SUPPORT

BRACKET - alternator, 1400 Cotton Harvesters, 1420 Combines

1шт.

179830

Used with 1420 combines Hex, 5/16"-18 x 3", G5

3шт.

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

- hex, 5/16 NC x 4-3/4 inch, used with 1400 cotton harvesters (Replaces bolt 272401)

3шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

3шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

6шт.

717547R1

LOCK PIN,M16 x 18, Slotted

PIN - slotted spring

1шт.

6

3218047R2

SUPPORT

BRACE - alternator-generator, 1400 Cotton Harvesters, 1420 Combines

1шт.

7

3144970R1

PLATE

- distance

1шт.

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch (Replaces bolt 179829)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

8

3228412R1

HOLDER

BRACKET - alternator, 3088 & 3288 Tractors, no longer available

1шт.

326-548

BOLT,Hex, 5/16" - 18 x 3", Gr 8

(Replaces bolt 25236R1) Hex, 5/16"-18 x 3", G8

2шт.

326-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

(Replaces bolt 25235R1) Hex, 5/16"-18 x 2 1/2", G8

1шт.

326-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 8

(Replaces bolt 25501R1) Hex, 3/8"-16 x 3 3/4", G8

1шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

6шт.

329-106

NUT,3/8"-16, G8

(Replaces nut 25522R1) 3/8"-16, G8

1шт.

717547R1

LOCK PIN,M16 x 18, Slotted

PIN - slotted spring

1шт.

9

3228413R1

SUPPORT

- alternator, 3088 & 3288 Tractors

1шт.

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- hex, 5/16 NC x 3-3/4 inch (Replaces bolt 186271)

1шт.
