Запчасти Case IH D-358 (6-098) - ENGINE SUPPORTS, 826 & 2826 TRACTORS / FLYWHEEL HOUSING / FLYWHEEL PLATE, 1400 COTTON HARVESTERS

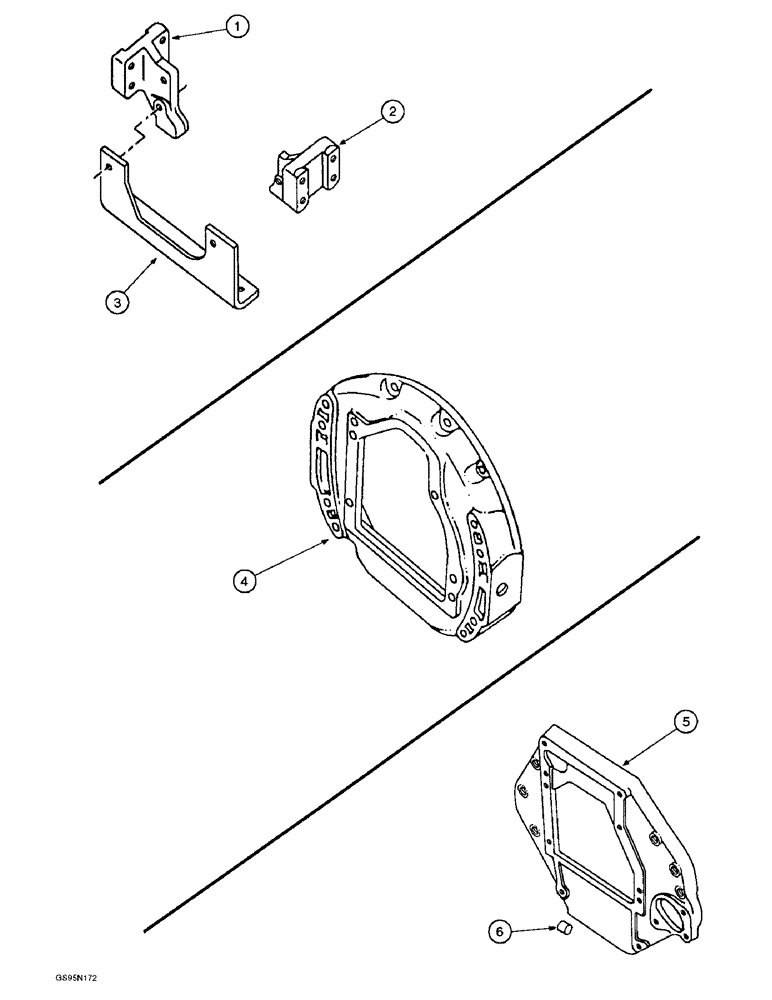

Схема запчастей Case IH D-358 - (6-098) - ENGINE SUPPORTS, 826 & 2826 TRACTORS / FLYWHEEL HOUSING / FLYWHEEL PLATE, 1400 COTTON HARVESTERS
2
1
6
5
3
4

Артикул

Название

Примечание

Количество

1

400380R1

SUPPORT

- engine, front left-hand, 826 & 2826 Tractors, no longer available

1шт.

429-1040

BOLT - hex, 5/8 NC x 2-1/2 inch, grade 8 (Replaces screw 20065R1)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 103325) 5/8"

1шт.

2

400381R1

SUPPORT

- engine, front right-hand, 826 & 2826 Tractors, no longer available

1шт.

429-1040

BOLT - hex, 5/8 NC x 2-1/2 inch, grade 8 (Replaces screw 20065R1)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 103325) 5/8"

1шт.

3

396805R1

SUPPORT - engine mounting bracket, 826 & 2826 Tractors, no longer available

1шт.

396804R1

BOLT - engine mounting bracket, no longer available

2шт.

326-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

(Replaces screw 223441) Hex, 5/8"-11 x 3 1/4", G8

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 103325) 5/8"

2шт.

4

3055976R2

CASE

HOUSING - flywheel, used with 826 and 2826 tractors, no longer available

1шт.

4

3144250R1

CASE

HOUSING - flywheel, used with 786, 886, 3088 and 3288 tractors, no longer available

1шт.

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

- hex, 1/2 NC x 1-3/8 inch (Replaces bolt 179884)

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 3050128R1) 1/2"

4шт.

4

3228128R1

HOUSING

- flywheel, used with 1420 combines

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Replaces bolt 179885) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

5

3218638R92

PLATE ASSY.

PLATE - flywheel, 1400 Cotton Harvesters

1шт.

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

- hex, 1/2 NC x 1-3/8 inch (Replaces bolt 179884)

4шт.

6

3136060R2

BUSHING

- flywheel plate

2шт.

Выбрано товаров: 19
