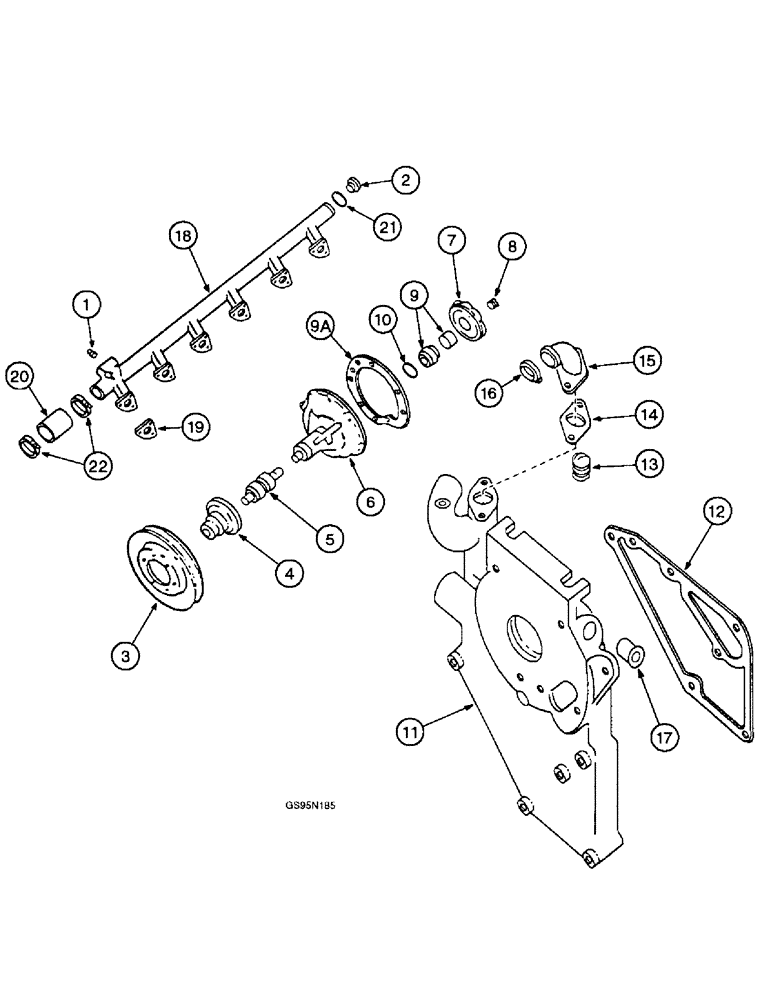

Запчасти Case IH D-358 (6-094) - THERMOSTAT AND WATER PUMP

1

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

PLUG, (Replaces plug 444630) Hex Hd, 1/2"-14

2шт.

2

712616R1

PLUG,Hex, M14 x 1.5

PLUG, - Filler and drain Hex, M14 x 1.5

1шт.

3

3055718R1

PULLEY

PULLEY - water pump, used with 826 and 2826 tractors

1шт.

3

3218232R1

PULLEY

SPARE PART PULLEY - water pump, used with 786 and 886 tractors, 3088 and 3288 tractors, no longer available

1шт.

3

3139290R1

PULLEY

PULLEY - water pump, used with 1400 cotton harvesters

1шт.

3

3218801R1

PULLEY

PULLEY - water pump, used with 1420 combines

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

6шт.

3132676R93

PUMP, WATER

PUMP ASSEMBLY - water, new, Includes: Ref. 4 - 8

1шт.

735097C91

REMAN-WATER PUMP

Remanufactured PUMP ASSEMBLY - water, component parts do not apply to the remanufactured assembly

1шт.

1928115C1

CORE-WATER PUMP

RETURN NUMBER- use this part number to return pump core for credit when using a remanufactured assembly

1шт.

4

3132678R1

HUB

HUB - water pump pulley

1шт.

5

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

BEARING - water pump

1шт.

6

3132677R41

BODY

BODY - water pump

1шт.

7

787579R2

IMPELLER

IMPELLER - water pump

1шт.

8

3055308R1

PLUG

PLUG - closing

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT - hex, 5/16 NC x 1-1/2 inch (Replaces bolt 179822)

7шт.

61-33122

HEX SOC SCREW,5/16"-18 x 1 3/8"

SCREW - cap, 5/16 NC x 1-3/8 inch (Replaces bolt 28301R1)

1шт.

114-107

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

BOLT - hex, 5/16 NC x 1-1/2 inch (Replaces screw 3136681R1)

1шт.

3136697R1

SCREW

SCREW - hex, 5/16 NC x 3-1/2 inch, no longer used

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

8шт.

9

3055285R94

GASKET KIT

KIT - water pump reconditioning, Includes: Ref. 9A & 10

1шт.

9a

3055177R3

GASKET

GASKET - water pump

1шт.

10

3055260R1

O-RING

SEAL - pump housing, order kit 3055285R94

1шт.

11

3136678R2

COVER

CARRIER - water pump, all models except 886, 786, 3088 and 3288 tractors (Replaces carrier 3132141R2)

1шт.

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

BOLT - hex, 5/16 NC x 3-1/2 inch (Replaces bolt 186270)

2шт.

179830

BOLT, Hex, 5/16"-18 x 3", G5

3шт.

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC (Replaces nut 102634)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

6шт.

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

PLUG, (Replaces plug 444630) Hex Hd, 1/2"-14

2шт.

11

3218237R1

CARRIER

SPARE PART CARRIER - water pump, used with 786, 886, 3088 and 3288 tractors

1шт.

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

BOLT - hex, 5/16 NC x 3-1/2 inch (Replaces bolt 186270)

1шт.

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC (Replaces nut 102634)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

5шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

BOLT, Hex, 5/16"-18 x 3", G5

3шт.

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

PLUG, (Replaces plug 444630) Hex Hd, 1/2"-14

1шт.

12

3055999R3

GASKET

GASKET - water pump carrier (Replaces gasket 3055999R1)

1шт.

13

3228046R1

THERMOSTAT

THERMOSTAT - coolant, 180 - 194 degrees Fahrenheit (Replaces thermostat 3059676R91)

1шт.

14

3132143R2

GASKET,1mm Thk

GASKET - flange, water outlet

1шт.

15

3132909R1

ELBOW

ELBOW - water outlet, used with all machines except 1420 combines, 3088 and 3288 tractors

1шт.

15

3132142R2

FLANGE

FLANGE - water outlet, used with 1420 combines, 3088 and 3288 tractors

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

BOLT, (Replaces bolt 179840) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

LOCK WASHER, (Replaces washer 3050221R1) 3/8"

2шт.

16

594183C1

CLAMP,10.2mm - 16mm

CLAMP - hose (Replaces clamps 81448H and 996261R91)

1шт.

17

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

PLUG - hex socket, 3/8 inch PT (Replaces plug 445686)

1шт.

18

3132435R1

MANIFOLD

MANIFOLD - water collecting

1шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

WASHER - flat, 5/16 inch

12шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

BOLT, (Replaces bolt 179817) Hex, 5/16"-18 x 7/8", G5, Full Thd

12шт.

19

3055306R3

GASKET,1.5mm Thk

GASKET - manifold, water collecting pipe

6шт.

20

3132912R1

HOSE,50.70 mm ID x 112.00 mm

Connecting

1шт.

21

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

SEALING WASHER, , Packing M14 x 18 x 1.5

1шт.

22

214-1532

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm, W/ Liner

HOSE CLAMP, - Hose to thermostat water channel, Adj. (Replaces clamps 610320C1, 3144921R1 and 3218259R1) #32, 1.56/2.50 Type F Worm, W/liner

2шт.

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

CLAMP, , Retaining, cable, used with 786 and 886 tractors (Replaces clamp 363444R1) J, 9/16" Insul, 3/8" Bolt

1шт.
