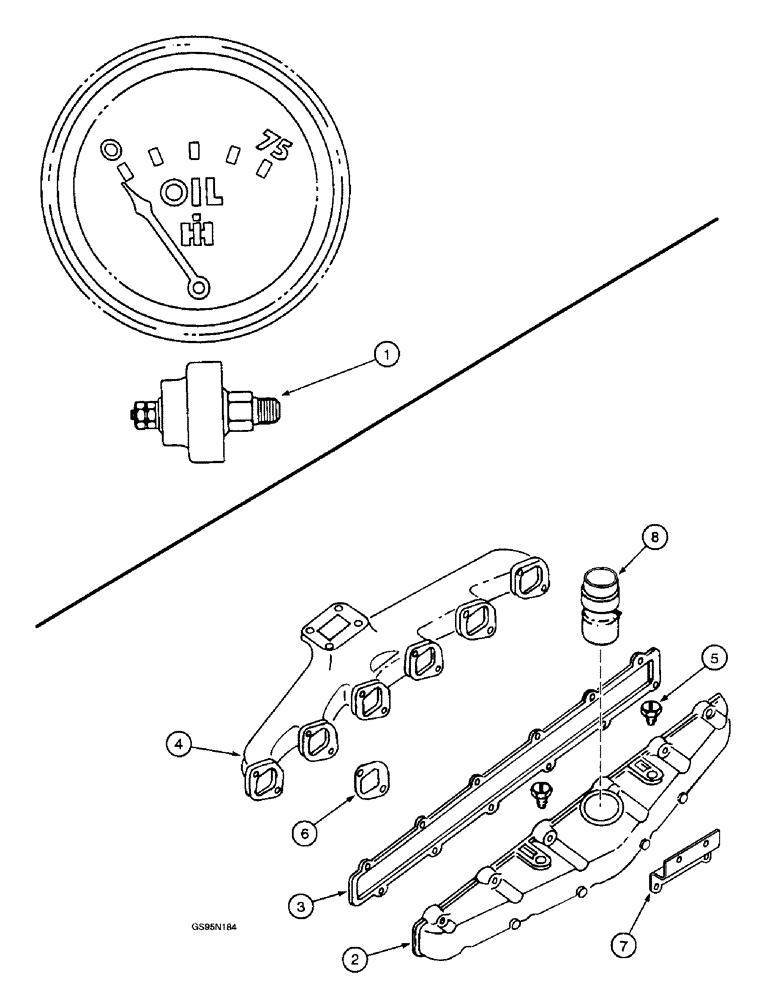

Запчасти Case IH D-358 (6-092) - OIL PRESSURE SWITCH, 826, 2826, 3088 AND 3288 TRACTORS / INTAKE & EXHAUST MANIFOLDS

1

392249R92

SWITCH

- low engine oil pressure lamp, used with 826 and 2826 tractors

1шт.

1

3055238R92

PRESSURE SWITCH

SWITCH - engine oil pressure, used with 3088 and 3288 tractors

1шт.

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

- 1/4 PT x 1/8 inch PT (Replaces adapters 112877 and 141539)

1шт.

2

3055275R4

MANIFOLD

- intake, used with 826, 2826, 3088 and 3288 tractors and 1420 combines

1шт.

2

3132076R2

MANIFOLD

- intake, used with 1400 cotton harvesters

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch, Ten used for 1420 combines, Twelve used for all other machines (Replaces bolt 179822)

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16"), one per bolt 413-524 M8.2 ID x 16 OD x .9 Thk

1шт.

3

3055399R2

MANIFOLD GASKET,1.5mm Thk

- intake manifold

1шт.

4

3055944R12

MANIFOLD

- exhaust, used with all machines except 1400 cotton harvesters

1шт.

4

3055125R12

MANIFOLD

- exhaust, used with 1400 cotton harvesters

1шт.

3228189R1

STUD

- exhaust manifold (Replaces stud 3055663R1)

4шт.

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch (Replaces washer 20285H)

12шт.

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF (Replaces nut 103026)

12шт.

5

3136229R1

PLUG,7/8" - 14

- closing

2шт.

933945R1

SEALING RING,M23 x 28 x 2.5

RING - packing

2шт.

6

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

6шт.

7

3218749R1

BRACKET

SUPPORT - ether starting solenoid, used with 786 and 886 tractors, 1420 combines

1шт.

413-526

BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 5

- hex, 5/16 NC x 1-5/8 inch (Replaces screw 179823)

2шт.

8

3055580R91

TUBE

COIL - heating, used with all machines except 1420 combines

1шт.

3146564R1

UNION

CONNECTOR - intake manifold, service indicator, used with 1420 combines

1шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT, used with 1420 combines (Replaces plug 445684)

1шт.
