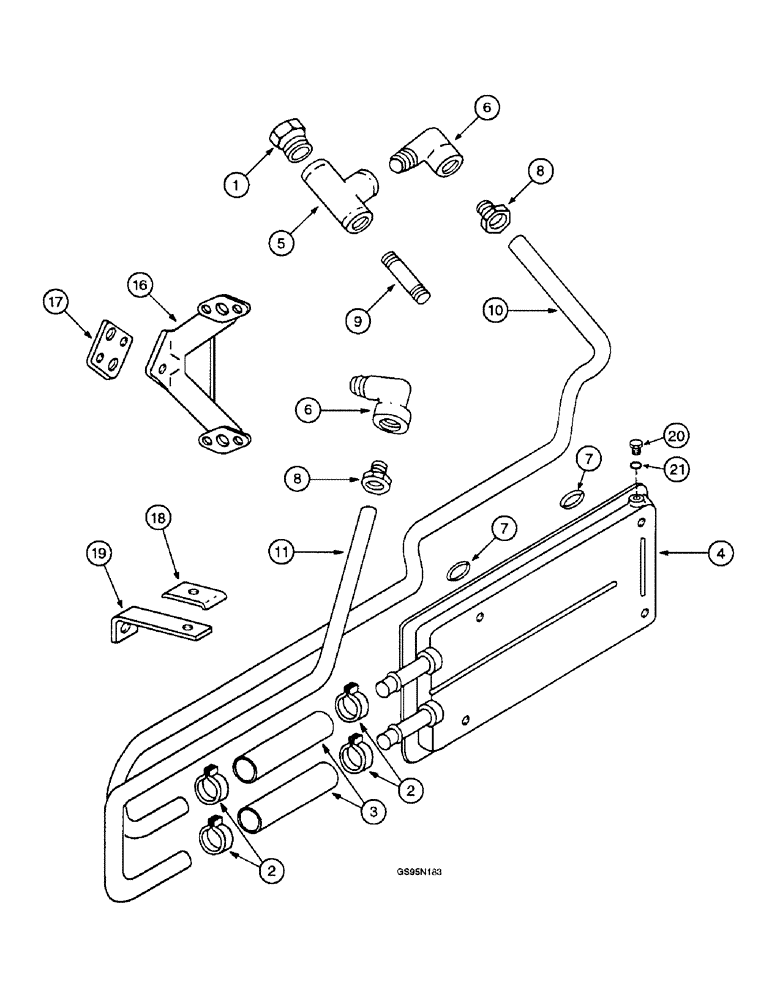

Запчасти Case IH D-358 (6-090) - ENGINE OIL COOLER AND CONNECTIONS

1

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

One used on all machines except 786 and 886 tractors and 1420 combines, two used on 786 and 886 tractors, 1420 combines, 782 cotton pickers and 1400 cotton harvesters (Replaces plug 444630) Hex Hd, 1/2"-14

1шт.

2

897116H1

CLAMP

- hose, no longer used, order clamp 3143364R1

4шт.

2

3143364R1

CLAMP,19mm - 23mm

- hose (Replaces clamp 897116H1)

4шт.

3

3136370R1

HOSE,16.00 mm ID x 65.00 mm

- Connecting 16.00 mm ID x 65.00 mm

2шт.

4

3228132R1

COOLER

- oil (Replaces cooler 279212R92)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

4шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

4шт.

5

142340

UNION

CROSS - pipe, used with 786, 886, 3088 and 3288 tractors, 1420 combines, 1400 cotton harvesters

1шт.

5

144085

TEE,1/2" NPT, Fem

- 1/2 inch pipe, used with 826 and 2826 tractors

1шт.

6

56445D

ELBOW,90 Degree x 1/2" NPT x 7/8"-18

- 90 degree male pipe, 5/8 x 1/2 inch NPT

2шт.

7

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

8

222-507

TUBE NUT,7/8"-18

NUT - tube, 5/8 inch (Replaces nut 56446D)

2шт.

9

192076

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe, 1/2 PT x 2 inch

1шт.

10

3136387R1

PIPE

- oil cooler to water carrier, used with 826 and 2826 tractors

1шт.

10

3218231R1

TUBE

PIPE - oil cooler to water carrier, used with 786 and 886 tractors, 1400 cotton harvesters, no longer available

1шт.

10

3218343R1

TUBE

PIPE - oil cooler to water pump carrier, used with 1420 combines

1шт.

10

3228675R1

PIPE

- oil cooler to water carrier, used with 3088 and 3288 tractors

1шт.

11

3136386R1

PIPE

- oil cooler to water manifold, used with all machines except 1420 combines, 3088 tractors and 3288 tractors, no longer available

1шт.

11

3144601R2

PIPE

- oil cooler to water manifold, used with 1420 combines

1шт.

11

848233R1

PIPE

- oil cooler to water manifold, used with 3088 and 3288 tractors, no longer available

1шт.

16

3136403R1

ELBOW

MANIFOLD - oil cooler, used with 1420 combines

1шт.

712076R1

STUD - oil cooler manifold, no longer available

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch (Replaces bolt 179842)

1шт.

329-146

JAM NUT,Jam, 3/8"-16, G5

(Replaces nut 114503) Jam, 3/8"-16, G5

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Saucer M10.2 ID x 20 OD x 1.1 Thk

2шт.

17

3136404R2

GASKET

- oil cooler manifold, used with 1420 combines

1шт.

18

3218744R1

CLAMP

- used with all machines except 1420 combines, 3088 tractors and 3288 tractors

1шт.

19

3136388R1

ANGLE

SUPPORT - pipe, used with all machines except 1420 combines, 3088 tractors and 3288 tractors, no longer available

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 109084)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179815)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

1шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

2шт.

20

934259R1

PLUG,Hex, M10 x 1

Drain Hex, M10 x 1

1шт.

21

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

(Replaces bolt 180024) Hex, 1/4"-20 x 1 1/4", G5

1шт.
