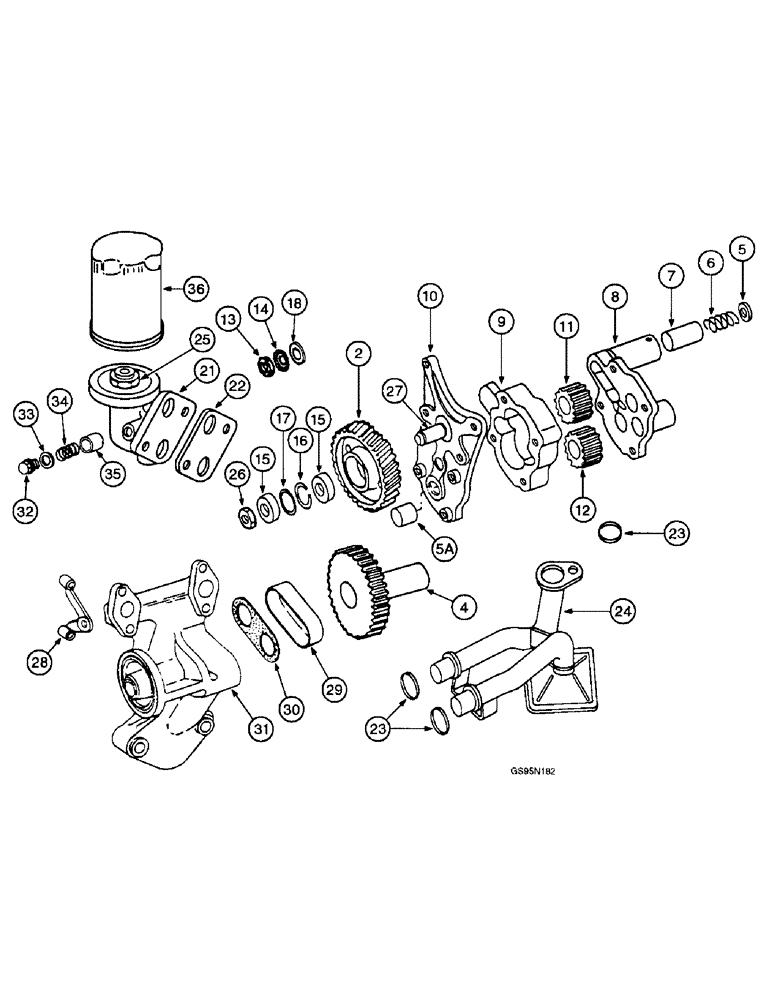

Запчасти Case IH D-358 (6-084) - OIL PUMP AND FILTER, 1420 COMBINES, 3088 AND 3288 TRACTORS

3136433R95

ENGINE OIL PUMP

PUMP ASSEMBLY - lubricating oil, Includes: Washer, Bolt & Ref. 2 - 18

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

4шт.

61-33116

HEX SOC SCREW,5/16"-18 x 1"

SCREW, (Replaces screw 21035R1) Hex Soc Hd, 5/16"-18 x 1"

4шт.

2

3056852R1

GEAR

- oil pump idler

1шт.

4

3136446R91

GEAR

- drive

1шт.

3136445R95

CARRIER

ASSEMBLY - oil pump, Includes: Roll Pin & Ref. 5 - 10

1шт.

932597R1

LOCK PIN,M10 x 14, Slotted

Roll M10 x 14, Slotted

3шт.

5

3139620R1

SPRING WASHER

- spring

1шт.

5a

NSS

NOT SOLD SEPARAT

BUSHING - order carrier assembly 3136445R95

1шт.

6

3136264R1

SPRING

- pressure relief valve

1шт.

7

3136081R1

VALVE

- piston relief (Replaces valve 3055202R2)

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - oil pump, order carrier assembly 3136445R95

1шт.

9

NSS

NOT SOLD SEPARAT

CASE - oil pump gear, order carrier assembly 3136445R95

1шт.

10

NSS

NOT SOLD SEPARAT

CARRIER - order carrier assembly 3136445R95

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - idler, order kit 3136450R91

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - oil pump, order kit 3136450R91

1шт.

13

3055295R1

NUT

- shaft, no longer available, order nut 3228141R1, item 26

1шт.

14

3055296R1

WASHER

PLATE - locking, no longer available, order nut 3228141R1, item 26

1шт.

15

47605R91

BEARING - roller cone, no longer available

2шт.

15

476046R1

BEARING, CUP

CUP - bearing, roller

2шт.

16

800-2135

SNAP RING,M35, Int

RING - locking (Replaces ring 933579R1)

1шт.

17

3055292R1

WASHER

WASHER - oil pump idler

1шт.

18

3055371R2

WASHER

- idler gear, no longer available, order nut 3228141R1, item 26

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

4шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch (Replaces screw 179828)

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

4шт.

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2" (Replaces pin 103387)

1шт.

21

3144599R1

BASE

- oil filter, used with 1420 combines

1шт.

3144513R1

SPRING WASHER

WASHER - disc spring type

2шт.

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch (Replaces bolt 186285)

2шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT (Replaces plug 444687)

1шт.

22

3055237R2

GASKET

- oil filter base

1шт.

23

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

- oil pump sealing

3шт.

24

3136014R94

PIPE

- oil pressure and suction, used with 1420 combines

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

24

3138695R94

PIPE

- oil pressure and suction, used with 3088 and 3288 tractors

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

1шт.

3050129R1

LOCK WASHER

WASHER - lock

1шт.

25

3136308R1

CONNECTOR, ELEC

CONNECTOR - threaded, used with 1420 combines

1шт.

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Packing M18 x 24 x 1.5

1шт.

712078R1

STUD

- oil filter base

1шт.

26

3228141R1

LOCK NUT

- lock (Replaces nut 3055295R1, plate 3055296R1 and washer 3055371R1)

1шт.

27

3055297R5

AXLE

- idler gear

1шт.

28

3136385R1

SUPPORT

- oil filter base, used with 3088 and 3288 tractors, no longer available

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch (Replaces bolt 179822)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

2шт.

29

787777R1

CAP

- covering, used with 3088 and 3288 tractors, no longer available

1шт.

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, , Screw sealing M26 x 31 x 2

2шт.

931081R1

BANJO BOLT,M26 x 1.5 x 60mm

SCREW - used with cap 787777R1

2шт.

30

787776R2

GASKET

- covering cap

1шт.

31

3136384R2

PEDESTAL

BASE - oil filter, used with 3088 and 3288 tractors

1шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch (Replaces 179845)

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

2шт.

32

3138581R1

PLUG

- relief valve, no longer available

1шт.

33

3058431R1

COPPER WASHER

RING - packing

1шт.

34

279163R1

SPRING

- relief valve

1шт.

35

251400R1

VALVE

- pressure relief

1шт.

36

3136046R93

FILTER, ENGINE OIL

FILTER - oil, 12 micron (Replaces filter 528250R1)

1шт.
