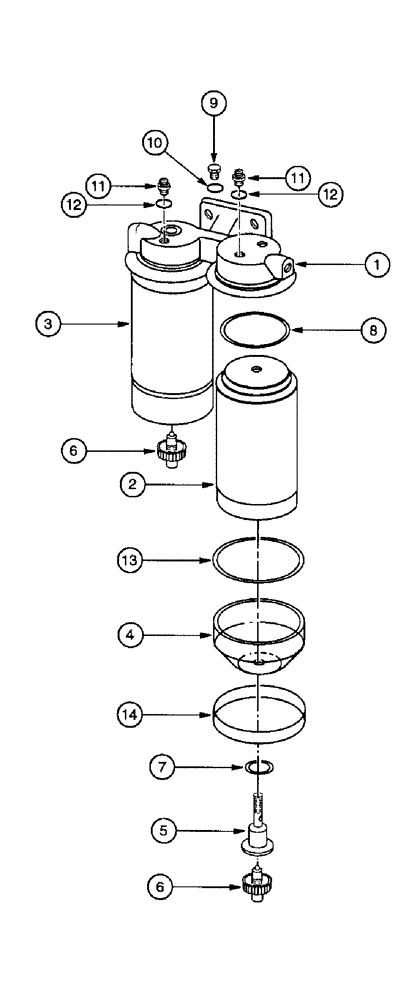

Запчасти Case IH D-358 (6-080) - FUEL FILTER, 826 AND 2826 TRACTORS

3132461R91

FILTER

ASSEMBLY - final fuel, no longer used, order filter assembly 3228272R91, Includes: Ref. 1 - 14

1шт.

1

3132491R1

FILTER HEAD

HEADER - filter

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces screw 179838) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

2

1967094C1

FUEL FILTER

KIT - primary fuel filter, also order filter 3132428R2 (Replaces kit 3136187R91)

1шт.

3132191R1

RING

- packing

1шт.

3

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

ELEMENT - fuel filter (Replaces element 3136187R91)

2шт.

4

3132197R1

BOWL

- transparent, also order filter 3132428R2, item 3

1шт.

5

3132194R1

SCREW,M12 x 1.5 x 68mm

- hollow, used with bowl 3132197R1, item 4

1шт.

6

3228407R1

PLUG

- drain, 7.8 mm (Replaces plug 3132196R1)

2шт.

7

3132192R1

RING

- packing, used with bowl 3132197R1, item 4

1шт.

8

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING - packing

2шт.

9

712616R1

PLUG,Hex, M14 x 1.5

- Filler (Replaces plug 3055648R1) Hex, M14 x 1.5

1шт.

10

933610R1

SEALING RING,M14 x 18 x 1.8

1шт.

11

3144780R1

SCREW

- air vent

2шт.

12

933696R1

SEALING RING,M6 x 10 x 1

RING, 6 x 10 mm - vent screw, packing (Replaces rings 787599R1 and 757760R1)

2шт.

13

3132191R1

RING

- packing, used with bowl 3132197R1, item 4

1шт.

14

3132493R1

RING

- used with bowl 3132197R1, item 4

1шт.
