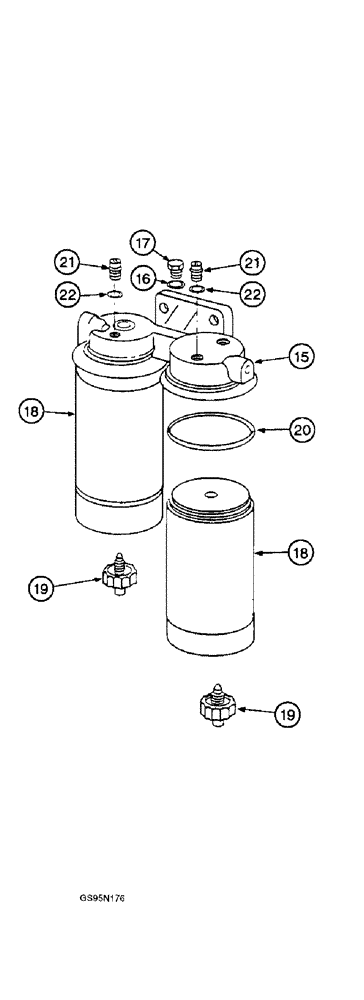

Запчасти Case IH D-358 (6-080[A]) - FUEL FILTER, ALL MACHINES EXCEPT 826 AND 2826 TRACTORS

3228272R91

FILTER ASSY

FILTER ASSEMBLY - fuel (Replaces filter assemblies 3136300R92 and 3132461R91), Includes: Ref. 15 - 22

1шт.

15

3132491R1

FILTER HEAD

HEADER - filter (Replaces headers 3218087R1 and 3218898R1)

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Saucer M10.2 ID x 20 OD x 1.1 Thk

2шт.

16

933610R1

SEALING RING,M14 x 18 x 1.8

1шт.

17

712616R1

PLUG,Hex, M14 x 1.5

- Filler and drain Hex, M14 x 1.5

1шт.

18

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

ELEMENT - fuel filter

2шт.

19

3228407R1

PLUG

- drain, 7.8 mm (Replaces plug 3132196R1)

2шт.

20

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING - packing

2шт.

21

3144780R1

SCREW

- air vent

2шт.

22

933696R1

SEALING RING,M6 x 10 x 1

RING, 6 x 10 mm - vent screw, packing (Replaces ring 757760R1)

2шт.
