Запчасти Case IH D-358 (6-078) - INJECTION NOZZLE, ALL MACHINES EXCEPT 826 AND 2826 TRACTORS

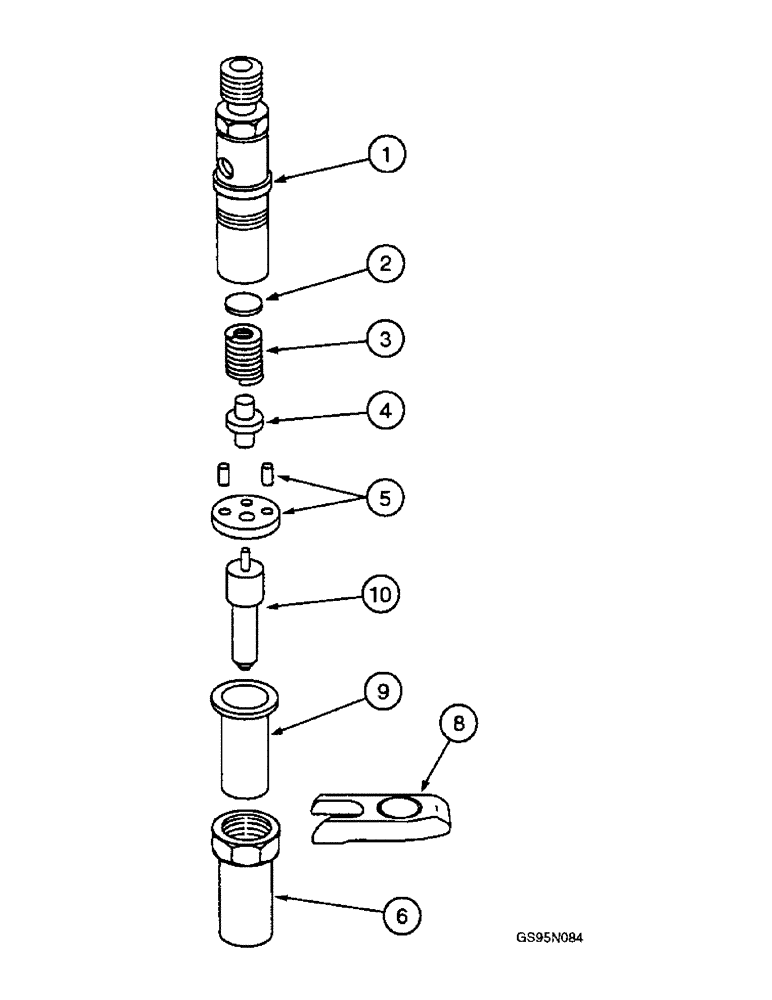

Схема запчастей Case IH D-358 - (6-078) - INJECTION NOZZLE, ALL MACHINES EXCEPT 826 AND 2826 TRACTORS
6
5
10
2
3
9
8
4
1

Артикул

Название

Примечание

Количество

735258C91

REMAN-INJECT NOZZLE

HOLDER ASSEMBLY - injection nozzle, remanufactured (North America only), no longer used, order holder assembly 3218247R92 and nozzle 3218248R2

6шт.

1934205C1

CORE-NOZZLE, INJECT

RETURN NUMBER - use this part number to return nozzles for credit when using a remanufactured assembly

6шт.

3218247R92

HOLDER

ASSEMBLY - injection nozzle, new, used with 786, 886, 3088 and 3288 tractors, 1420 combines, and 1400 cotton harvesters, does not include nozzle 32182481C2, item 10, Includes: Ref. 1 - 9

6шт.

1

NSS

NOT SOLD SEPARAT

BODY - nozzle holder, order holder assembly

1шт.

2

3218657R1

SHIM

- 0.500 mm, adjusting pin

1шт.

2

3218658R1

SHIM

- 0.525 mm, adjusting pin, no longer available, order shim 3218659R1 below

1шт.

2

3218659R1

SHIM

- 0.550 mm, adjusting pin

1шт.

2

3218660R1

SHIM

- 0.575 mm, adjusting pin, no longer used, order 6 mm shim 3218661R1 below

1шт.

2

3218661R1

SHIM

- 0.600 mm, adjusting pin

1шт.

2

3218662R1

SHIM

- 0.700 mm, adjusting pin

1шт.

2

3218663R1

SHIM

- 0.800 mm, adjusting pin

1шт.

2

3218664R1

SHIM

- 0.900 mm, adjusting pin

1шт.

3

3218385R2

SPRING

- pressure, compression

1шт.

4

3218386R2

SPACER

PIN - pressure

1шт.

5

3218387R1

SPACER

- spring

1шт.

6

3218388R1

NUT

- nozzle cap

1шт.

8

3218128R1

RETAINER

- injection nozzle

6шт.

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

(Replaces bolt 25493R1) Hex, 5/16"-18 x 1", G8, Full Thd

6шт.

3218129R1

WASHER

- retainer bolt, centering

6шт.

9

3132028R1

SLEEVE,6.2mm ID x 16.5mm OD x 24.5mm L

- insulating, used with 1400 cotton harvesters and 1420 combines

1шт.

10

3218248R2

NOZZLE CAP

NOZZLE - injection, used with 786, 886, 3088 and 3288 tractors, 1420 combines, 1400 cotton harvesters

1шт.

Выбрано товаров: 21
