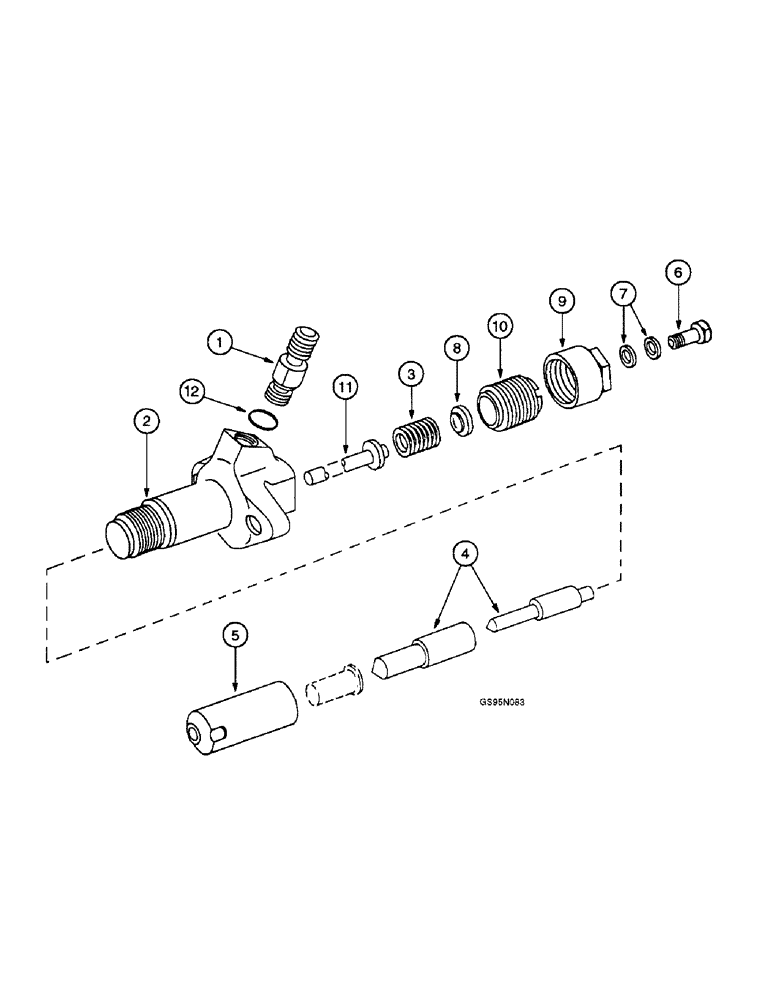

Запчасти Case IH D-358 (6-076) - INJECTION NOZZLE, 826 AND 2826 TRACTORS

3055423R93

HOLDER

HOLDER ASSEMBLY - injection nozzle, complete, new, no longer available, order remanufactured assembly 735253C91

6шт.

735253C91

REMAN-FUEL INJECTOR

Holder Assembly - Injection Nozzle, Complete, Remanufactured

6шт.

1934195C1

CORE-FUEL INJECTOR

Return Part Number - use this part number to return nozzles for credit when using a remanufactured assembly

6шт.

3055298R92

NOZZLE HOLDER

HOLDER ASSEMBLY - injection nozzle, does not include nozzle 3055428R92, item 4, no longer available, Includes: Ref. 1, 2, 3, 5 - 12

6шт.

1

3056940R91

UNION

CONNECTOR - fuel inlet

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - injection nozzle holder, order holder assembly

1шт.

3

759844R1

SPRING

SPRING - injection nozzle

1шт.

4

3055428R92

FUEL SYSTEM INJECTOR

NOZZLE - injection

1шт.

5

3056945R1

NUT

NUT - nozzle cap

1шт.

6

3132999R1

HOLLOW SCREW

SCREW - hollow

1шт.

7

3053133R1

SEALING RING,M8 x 11.5 x 1

WASHER, SEALING, , Packing M8 x 11.5 x 1

2шт.

8

787049R1

CUP

SEAT - spring

1шт.

9

3056943R1

CROWN NUT

NUT - nozzle holder cap, no longer available

1шт.

10

3132998R1

SCREW

CAP - spring (Replaces cap 3056942R1)

1шт.

11

3056939R91

SPINDLE

SPINDLE - includes guide bushing

1шт.

12

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

RING - packing, fuel inlet connection

1шт.

425-115

NUT,5/16"-24, G5

NUT - hex, 5/16 inch NF (Replaces nut 103025)

8шт.
