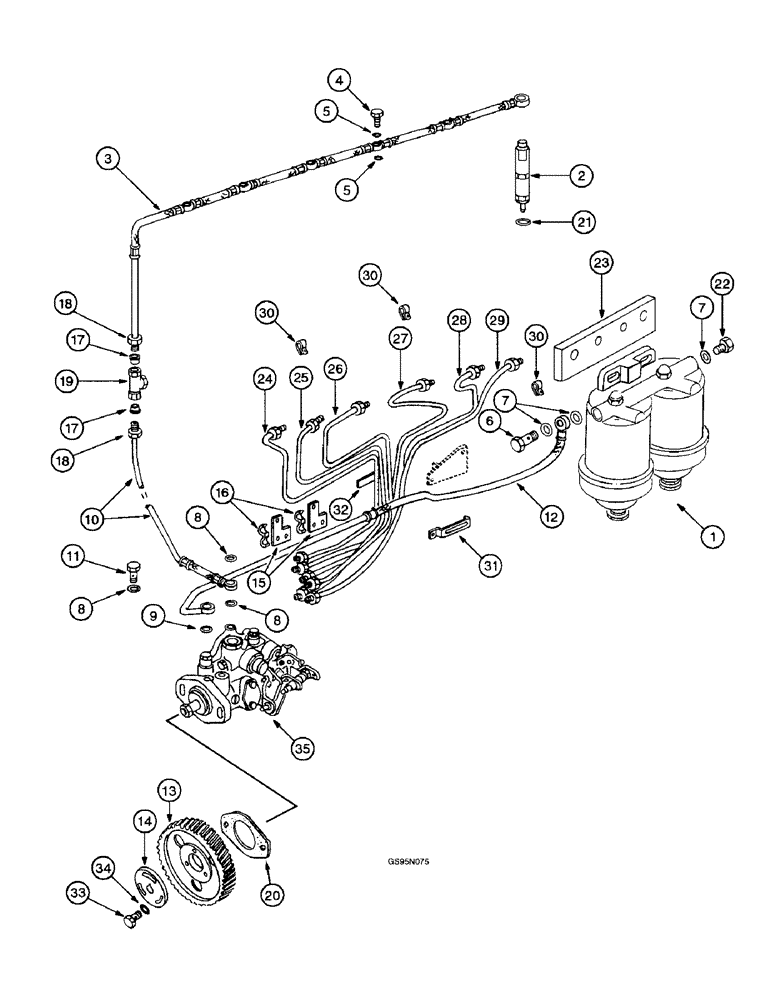

Запчасти Case IH D-358 (6-068) - FUEL INJECTION PUMP AND CONNECTIONS, 786, 886, 3088 AND 3288 TRACTORS

1

REF

INSTRUCTION

FILTER ASSEMBLY - fuel, parts list Figure 6-80

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Saucer, Conical M10.2 ID x 20 OD x 1.1 Thk

2шт.

2

REF

INSTRUCTION

HOLDER ASSEMBLY - injection nozzle, parts list Figure 6-76 or 6-78

1шт.

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

(Replaces bolt 25493R1) Hex, 5/16"-18 x 1", G8, Full Thd

6шт.

3218129R1

WASHER

- retainer bolt

6шт.

3

3218122R1

LINE

- leak

1шт.

4

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

- hollow, inlet union

6шт.

5

933696R1

SEALING RING,M6 x 10 x 1

RING - sealing, 6 x 10 mm

12шт.

6

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW - hollow, inlet union

1шт.

7

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

8

E135042

SEALING RING

RING - sealing (Replaces ring 713845R1)

3шт.

9

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

10

3139182R1

PIPE

LINE - overflow

1шт.

11

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW - hollow, inlet union

1шт.

12

3139228R1

PIPE

LINE - fuel filter to injection pump

1шт.

13

3056885R3

PINION

GEAR - injection pump

1шт.

933981R1

NUT,M12 x 1.75, Cl 5

Hex M12 x 1.75, Cl 5

1шт.

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm (Replaces washer 933834R1)

1шт.

14

3055067R2

HUB

- injection pump gear

1шт.

15

3055678R1

PLATE

LINK - fuel line fixing

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

1шт.

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

(Replaces screw 179835) Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

3055221R1

STUD

- lock, water collecting pipe

1шт.

16

3055386R1

CLAMP

CLIP - fuel line

2шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 179793)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 3052189R1) 1/4"

2шт.

17

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

- compression, ferrule

2шт.

18

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT - coupling, tube

2шт.

19

3136305R1

TEE

- street

1шт.

222-4047

ELBOW

- 90 degree compression x 3/8 tube OD x 1/4 inch PT, used with 886 tractors (Replaces elbow 606845C1)

1шт.

20

3055384R2

GASKET

- fuel injection pump

1шт.

21

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

- injection nozzle

6шт.

22

886125C1

ADAPTER

- tube, no longer available

1шт.

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

1шт.

23

3144325R1

PLATE

BRACKET - fuel filters, no longer available

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces screw 179838) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 3050221R1) 3/8"

2шт.

24

3218877R1

LINE

PIPE - injection, cylinder no. 1, no longer available

1шт.

25

3218878R1

LINE

PIPE - injection, cylinder no. 2

1шт.

26

3218879R1

LINE

PIPE - injection, cylinder no. 3, no longer available

1шт.

27

3218880R1

LINE

PIPE - injection, cylinder no. 4

1шт.

28

3218881R1

LINE

PIPE - injection, cylinder no. 5

1шт.

29

3218882R1

LINE

PIPE - injection, cylinder no. 6, no longer available

1шт.

30

3132770R1

COLLAR

CLAMP - tube, pipe (Replaces clamp 3218241R1)

3шт.

31

3132838R1

BRACKET

CLAMP - tube, pipe upper, interchangeable with 3218244R1

1шт.

32

3132839R1

CLAMP

- tube, pipe lower, interchangeable with 3218244R1

1шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

- machine, pan head slotted

4шт.

825-1406

NUT,M6, Cl 8

WASHER - hex, 6 mm - 1 (Replaces washer 933988R1)

4шт.

3132839R1

CLAMP

- pipe, upper and lower (Replaces clamp 3218244R1)

1шт.

33

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch

3шт.

34

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened (Replaces washer 30183R1)

3шт.

35

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list Figures 6-28 - 6-42

1шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC (Replaces nut 102634)

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

2шт.

36

3218751R91

HOLDER

SUPPORT - governor control

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 179837) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

- flat, 10 mm

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 3050221R1) 3/8"

1шт.
