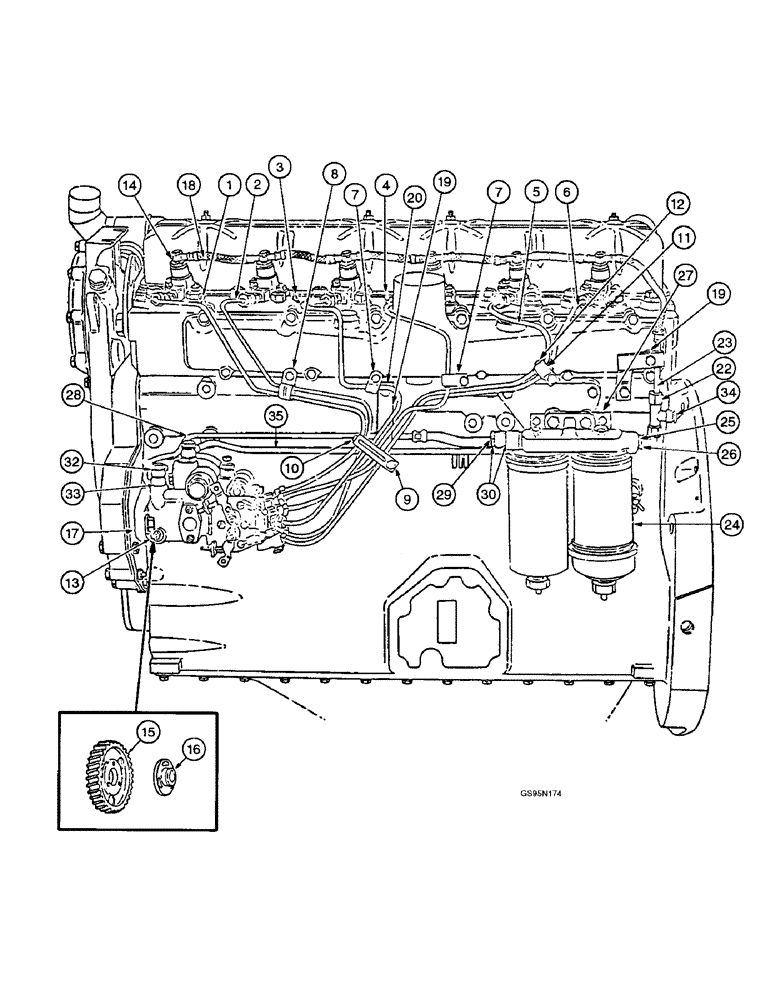

Запчасти Case IH D-358 (6-064) - FUEL INJECTION PUMP AND CONNECTIONS, 826 AND 2826 TRACTORS

1

3136378R11

LINE

PIPE - injection, cylinder no. 1, no longer available

1шт.

1

3139176R11

PIPE

- injection, cylinder no. 1, used with pump assembly 3144287R91, no longer available

1шт.

2

3136379R11

LINE

PIPE - injection, cylinder no. 2, no longer available

1шт.

2

3139177R11

PIPE

- injection, cylinder no. 2, used with pump assembly 3144287R91

1шт.

3

3136380R11

PIPE

- injection, cylinder no. 3, no longer available

1шт.

3

3139178R11

PIPE

- injection, cylinder no. 3, used with pump assembly 3144287R91, no longer available

1шт.

4

3136381R11

INJECTION PIPE

PIPE - injection, cylinder no. 4

1шт.

4

3139179R11

PIPE

- injection, cylinder no. 4, used with pump assembly 3144287R91, no longer available

1шт.

5

3136382R11

LINE

PIPE - injection, cylinder no. 5, no longer available

1шт.

5

3139180R11

PIPE

- injection, cylinder no. 5, used with pump assembly 3144287R91, no longer available

1шт.

6

3136383R11

INJECTION PIPE

PIPE - injection, cylinder no. 6, no longer available

1шт.

6

3139181R11

PIPE

- injection, cylinder no. 6, used with pump assembly 3144287R91, no longer available

1шт.

7

3132767R1

CLAMP

- pipe, no longer available

2шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 179793)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 3052189R1) 1/4"

2шт.

8

3132770R1

COLLAR

CLAMP - tube, pipe

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 179793)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 3052189R1) 1/4"

1шт.

9

3132838R1

BRACKET

CLAMP - tube, pipe, upper

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces screw 179791)

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 109084)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 3052189R1) 1/4"

1шт.

10

3132839R1

CLAMP

- tube, pipe, lower

1шт.

11

787772R1

CLAMP

- pipe, upper part, no longer available

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 179793)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 3052189R1) 1/4"

1шт.

12

787773R1

CLAMP - pipe, lower part, no longer available

1шт.

13

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list Figures 6-28 & 6-36

1шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC (Replaces nut 102634)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

2шт.

14

REF

INSTRUCTION

HOLDER ASSEMBLY - injection nozzle, parts list Figure 6-76 or 6-78

1шт.

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

- injection nozzle, sealing

6шт.

15

3056885R3

PINION

GEAR - injection pump

1шт.

16

3055067R2

HUB

- injection pump gear

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch

3шт.

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened (Replaces washer 30183R1)

3шт.

17

3055384R2

GASKET

- fuel injection pump

1шт.

18

3055741R91

LINE

- fuel leak

1шт.

19

3055386R1

CLAMP

CLIP - fuel line

2шт.

20

3056979R1

LINK

- fuel line fixing, no longer available

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

1шт.

20

3055678R1

PLATE

LINK - fuel line fixing

1шт.

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

(Replaces screw 179835) Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

3059221R1

WASHER - lock, 3/8 inch, no longer available

1шт.

22

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

- compression, cutting

2шт.

23

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT - coupling

2шт.

24

REF

INSTRUCTION

FILTER ASSEMBLY - fuel, parts list Figure 6-80

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces screw 179838) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Saucer M10.2 ID x 20 OD x 1.1 Thk

2шт.

25

3056600R1

ADAPTER

- filter, fuel

1шт.

26

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

1шт.

27

3132910R1

HOLDER

BRACKET - fuel filter

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces screw 179838) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 3050221R1) 3/8"

2шт.

28

3132911R1

PIPE

LINE - filter to injection pump

1шт.

29

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW - hollow

1шт.

30

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

2шт.

31

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW - hollow, not shown

1шт.

32

E135042

SEALING RING

RING - sealing (Replaces ring 713845R1)

1шт.

33

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Packing (Replaces ring 3055390R1) M12 x 18 x 1.5

1шт.

34

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

- tee, connecting

1шт.

35

3055972R91

TUBE

LINE - overflow, no longer available

1шт.
