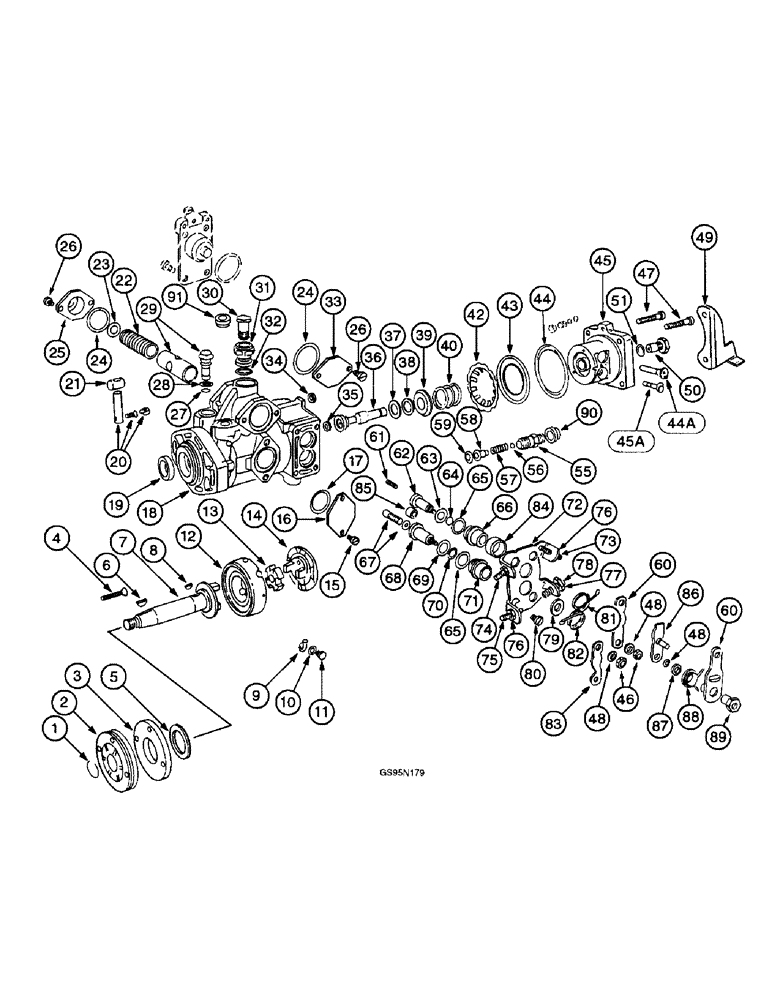

Запчасти Case IH D-358 (6-042) - FUEL INJECTION PUMP, 786, 886, 3088 AND 3288 TRACTORS, 782 COTTON PICKERS, PRE-PRODUCTION

3228168R91

SPARE PART

INJECTION PUMP

1шт.

735192C91

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured for pump assembly 3228168R92 (North America only)

1шт.

To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.

1шт.

1934029C1

CORE-INJECTION PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

3228168R92

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, used with 786 and 3088 tractors, model number EP/VAL/10H 1200CR401-1, no longer available, order remanufactured assembly 735192C91, Includes: Hardware Listed Below & Ref. 1 - 91

1шт.

To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.

1шт.

735193C91

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured for pump assembly 3228169R92 (North America only)

1шт.

To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.

1шт.

1934031C1

CORE-INJECTION PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

3228169R92

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, 886 tractors with serial number 52875 and after, 3288 tractors, model number VA6/10H 1200CR401-2, no longer available, order remanufactured assembly 735193C91, Includes: Hardware Listed Below & Ref. 1 - 91

1шт.

735134C91

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured for pump assembly 3218238C91 (North America only)

1шт.

To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.

1шт.

1934027C1

CORE-INJECTION PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

3218238R91

FUEL INJECTION PUMP

PUMP ASSEMBLY - fuel injection, new, 886 tractors with serial numbers prior to 52875, model number EP/VA6/100H 1200CRV, no longer available, order remanufactured assembly 735134C91, Includes: Hardware Listed Below & Ref. 1 - 91

1шт.

4316281R91

PUMP ASSEMBLY - fuel injection, used with 782 cotton pickers, pre-production only, model number VA6/100 1250CRV-080, no longer available, Includes: Hardware Listed Below & Ref. 1 - 91

1шт.

To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

2шт.

1

3078474R1

RING

- retaining

1шт.

2

3078475R91

PUMP

- charge

1шт.

3

3078476R1

RING

- charge pump support

1шт.

4

3078477R1

BOLT,CSK

SCREW - retaining support ring

2шт.

5

3078479R1

THRUST WASHER

- roller retaining thrust

1шт.

6

3079101R1

WOODRUFF KEY

KEY - Woodruff, drive shaft

1шт.

7

3078473R1

SHAFT

- drive

1шт.

8

3132395R1

KEY

- Woodruff, charging pump

1шт.

9

3132598R1

INDICATOR

POINTER - timing

1шт.

10

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER - lock, 4 mm

1шт.

11

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

- pan head

1шт.

12

3078550R91

PUMP

RING - roller retainer, no longer available

1шт.

13

3059007R1

DISC

- cross type cam face

1шт.

14

3078695R1

CAM

- face

1шт.

15

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9, Window cover, Used with pump assemblies 3218238R91, 3228168R92 and 3228169R92

2шт.

15

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

- machine, window cover, used with pump 4316281R91

1шт.

16

3078486R1

COVER

- timing window

1шт.

17

3078488R1

RING

SEAL - timing, window cover

1шт.

18

3079185R91

CASE

HOUSING - pump, used with pump assemblies 3218238R91, 3228168R92 and 3228169R92

1шт.

18

3078694R91

HOUSING

- pump, used with pump assembly 4316281R91

1шт.

19

3078355R2

OIL SEAL

- oil, drive shaft

1шт.

20

3078481R1

PIN

- automatic advance connecting

1шт.

21

3078482R1

SLIDE

R - advance piston

1шт.

22

3078565R1

SPRING

- advance piston, used with pump assemblies 3218238R91 and 4316281R91

1шт.

22

3079106R1

VALVE SPRING

SPRING - advance piston, used with pump assemblies 3228169R92 and 3228168R92

1шт.

23

3078528R1

THRUST WASHER

- thrust, 0.6 mm

1шт.

23

3078529R1

THRUST WASHER

- thrust, 0.8 mm

1шт.

23

3078530R1

THRUST WASHER

- thrust, 1.0 mm

1шт.

23

3078531R1

THRUST WASHER

- thrust, 1.2 mm

1шт.

23

3078532R1

THRUST WASHER

- thrust, 1.4 mm

1шт.

23

3078533R1

THRUST WASHER

- thrust, 3.0 mm

1шт.

24

3078488R1

RING

O-RING - advance housing

2шт.

Part of fuel injection pump gasket kit P/N 199024A1.

1шт.

25

3078489R1

COVER

PLATE - advance housing, right-hand

1шт.

26

439189C1

SCREW

- advance housing plate, right-hand, pan head, 6 mm x 15 mm

2шт.

26

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9, Advance housing plate, LH (Replaces screw 931585R1)

2шт.

27

3078535R1

O-RING

- regulator valve

1шт.

Part of fuel injection pump gasket kit P/N 199024A1.

1шт.

28

3078358R1

O-RING

- regulator valve

1шт.

Part of fuel injection pump gasket kit P/N 199024A1.

1шт.

29

3078614R91

VALVE

- regulator (Replaces valve 3078534R91)

1шт.

30

3059086R1

BANJO BOLT

SCREW - hollow, inlet union pump housing

1шт.

31

3078484R1

VALVE

- overflow, no longer available

1шт.

32

3078483R1

O-RING,2.5mm Thk x 15mm ID

- overflow valve, union adapter advance housing

1шт.

Part of fuel injection pump gasket kit P/N 199024A1.

1шт.

33

3078486R1

COVER

- timing window, advance housing, left-hand

1шт.

34

3078487R1

O-RING

- packing

1шт.

Part of fuel injection pump gasket kit P/N 199024A1.

1шт.

35

3079423R1

WASHER

- plunger, 1.78 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078761R2

WASHER

- plunger, 1.80 mm

1шт.

35

3079425R1

WASHER

- plunger, 1.82 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078763R2

WASHER

- plunger, 1.84 mm

1шт.

35

3079427R1

WASHER

- plunger, 1.86 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078765R2

WASHER

- plunger, 1.88 mm

1шт.

35

3079213R2

WASHER

- plunger, 1.90 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078767R2

WASHER

- plunger, 1.92 mm

1шт.

35

3079214R2

WASHER

- plunger, 1.94 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078769R2

WASHER

- plunger, 1.96 mm

1шт.

35

3079215R2

WASHER

- plunger, 1.98 mm, used with pump assemblies 32281689R2 and 3228169R92

1шт.

35

3078771R2

WASHER

- plunger, 2.00 mm

1шт.

35

3079216R2

WASHER

- plunger, 2.02 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078773R2

WASHER

- plunger, 2.04 mm

1шт.

35

3079217R2

WASHER

- plunger, 2.06 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078775R2

WASHER

- plunger, 2.08 mm

1шт.

35

3079218R2

WASHER

- plunger, 2.10 mm, used with pump assemblies 3228168R92 and 322816R92

1шт.

35

3078777R2

WASHER

- plunger, 2.12 mm

1шт.

35

3079219R2

WASHER

- plunger, 2.14 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078779R2

WASHER

- plunger, 2.16 mm

1шт.

35

3079220R2

WASHER

- plunger, 2.18 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078781R2

WASHER

- plunger, 2.20 mm

1шт.

35

3079221R2

WASHER

- plunger, 2.22 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078783R2

WASHER

- plunger, 2.24 mm

1шт.

35

3079222R2

WASHER

- plunger, 2.26 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078785R2

WASHER

- plunger, 2.28 mm

1шт.

35

3079223R2

WASHER

- plunger, 2.30 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078787R2

WASHER

- plunger, 2.32 mm

1шт.

35

3079224R2

WASHER

- plunger, 2.34 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078789R2

WASHER

- plunger, 2.36 mm

1шт.

35

3079225R2

WASHER

- plunger, 2.38 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078791R2

WASHER

- plunger, 2.40 mm

1шт.

35

3079226R2

WASHER

- plunger, 2.42 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078793R2

WASHER

- plunger, 2.44 mm

1шт.

35

3079227R2

WASHER

- plunger, 2.46 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078795R2

WASHER

- plunger, 2.48 mm

1шт.

35

3079228R2

WASHER

- plunger, 2.50 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078797R2

WASHER

- plunger, 2.52 mm, no longer available

1шт.

35

3079229R2

WASHER

- plunger, 2.54 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078799R2

WASHER

- plunger, 2.56 mm

1шт.

35

3079230R2

WASHER

- plunger, 2.58 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078801R2

WASHER

- plunger, 2.60 mm

1шт.

35

3079231R2

WASHER

- plunger, 2.62 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078803R2

WASHER

- plunger, 2.64 mm, no longer available

1шт.

35

3079232R2

WASHER

- plunger, 2.66 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078805R2

WASHER

- plunger, 2.68 mm

1шт.

35

3079233R2

WASHER

- plunger, 2.70 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078807R2

WASHER

- plunger, 2.72 mm

1шт.

35

3079234R2

WASHER

- plunger, 2.74 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078809R2

WASHER

- plunger, 2.76 mm

1шт.

35

3079235R2

WASHER

- plunger, 2.78 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078811R2

WASHER

- plunger, 2.80 mm

1шт.

35

3079350R2

WASHER

- plunger, 2.82 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078813R2

WASHER

- plunger, 2.84 mm

1шт.

35

3079236R2

WASHER

- plunger, 2.86 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

35

3078815R2

WASHER

- plunger, 2.88 mm

1шт.

35

3079237R2

WASHER

- plunger, 2.90 mm, used with pump assemblies 3228168R92 and 3228169R92

1шт.

3079181R91

DISTRIBUTOR HEAD

HEAD ASSEMBLY - distributor, used with pump assemblies 3218238R91, 3228169R92 and 3228168R92, Includes: Ref. 36 - 45A

1шт.

3078916R91

HEAD

ASSEMBLY - distributor, used with pump assembly 431628R91, Includes: Ref. 36 - 45A

1шт.

36

NSS

NOT SOLD SEPARAT

VALVE - order head assembly

1шт.

37

3078540R1

WASHER

- plunger, 1.35 mm

1шт.

37

3078541R1

WASHER

- plunger, 1.60 mm

1шт.

37

3078542R1

WASHER

- plunger, 1.85 mm

1шт.

38

3078537R1

WASHER

- plunger, 1.65 mm

1шт.

38

3078571R1

WASHER

- plunger, 2.85 mm

1шт.

39

3078516R1

SEAT

- plunger spring

1шт.

40

3078515R1

SPRING

- plunger

1шт.

42

3078576R1

SPRING WASHER

- spring

1шт.

43

3078578R1

FILTER, FUEL

FILTER - fuel

1шт.

44

3078366R1

O-RING

- distributor head

1шт.

44a

NSS

NOT SOLD SEPARAT

VALVE - order head assembly

1шт.

45

NSS

NOT SOLD SEPARAT

HEAD - distributor, order head assembly

1шт.

45a

NSS

NOT SOLD SEPARAT

VALVE - order head assembly

1шт.

46

825-1406

NUT,M6, Cl 8

WASHER - hex, 6 mm - 1, throttle and control

2шт.

47

3078600R1

SCREW

- pump to distributor head

4шт.

48

492-11006

LOCK WASHER,#6

Washer, Lock, , Used with pump assemblies 3218238R91 and 4316281R91 (Replaces washer 933987R1) #6

2шт.

48

847239R1

LOCK WASHER

- spring lock, used with pump assemblies 3228168R92 and 3228169R92, no longer available

2шт.

49

3078570R1

BRACKET

- injection pump, used with pump assembly 4316281R91

1шт.

50

3078514R1

PLUG

- distributor head

1шт.

51

3132407R1

O-RING

O-RING - packing, distributor head plug

1шт.

55

3079109R2

NIPPLE, LUBE

HOLDER - delivery valve, used with pump assemblies 3218238R91, 3228169R92 and 3228168R92

6шт.

55

3059067R2

HYD CONNECTOR

HOLDER - delivery valve, used with pump assembly 4316281R91

6шт.

56

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

- special, delivery valve

6шт.

57

3079108R1

SPRING

- delivery valve, used with pump assemblies 3218238R91, 3228169R92 and 3228168R92, no longer available

6шт.

57

3132382R1

SPRING

- delivery valve, used with pump assembly 4316281R91

6шт.

58

3078567R1

VALVE

- delivery, used with pump assembly 4316281R91

6шт.

58

3136396R1

VALVE

- delivery, used with pump assemblies 3228168R92, 3228169R92 and 3218238R91, no longer available (Replaces valve 3079182R1)

6шт.

59

3079378R1

WASHER

- delivery valve

6шт.

60

3079184R1

LEVER

- throttle, no longer available

1шт.

61

3078555R1

SPRING

- throttle

1шт.

62

3078605R1

SHAFT

- throttle, used with pump assemblies 3218238R91, 3228169R92 and 3228168R92

1шт.

62

3078517R1

SHAFT

- throttle, used with pump assembly 4316281R91

1шт.

63

3078519R1

WASHER

- throttle shaft

1шт.

64

3078354R1

O-RING,2mm Thk x 6.5mm ID

- throttle shaft

1шт.

Part of fuel injection pump gasket kit P/N 199024A1.

1шт.

65

785602R1

O-RING

- control plunger and throttle

2шт.

Part of fuel injection pump gasket kit P/N 199024A1.

1шт.

66

3078556R1

BUSHING

- throttle shaft

1шт.

67

3078522R91

KIT

- control plunger, used with pump assemblies 3218238R91, 3228169R92 and 3228168R92

1шт.

67

3078563R91

KIT

- control plunger spring, used with pump assembly 4316281R91

1шт.

68

3078521R1

SHAFT

- control plunger

1шт.

69

3078523R1

WASHER

- control plunger shaft

1шт.

70

3078363R1

O-RING

- control plunger shaft

1шт.

Part of fuel injection pump gasket kit P/N 199024A1.

1шт.

71

3078524R1

BUSHING

- control plunger shaft

1шт.

72

3079183R1

PLATE

- stop, used with pump assemblies 3218238R91, 3228169R92 and 3228168R92

1шт.

72

3078557R1

PLATE

- stop, used with pump assembly 4316281R91

1шт.

72

3078557R1

PLATE

- stop, used with pump assembly 4316281R91

1шт.

73

3132885R1

BOLT

- stop

1шт.

74

3136136R1

SCREW

- stop

1шт.

75

3059074R1

SCREW

- stop

1шт.

76

825-1406

NUT,M6, Cl 8

WASHER - hex, 6 mm - 1, stop screw (Replaces washer 933988R1)

3шт.

77

3079141R1

NUT

- hex

1шт.

78

3132251R1

STOP LOCK

SCREW - stop

1шт.

79

3059076R1

WASHER

- plunger shaft control

1шт.

80

931320R1

SCREW,M6 x 12mm, Cl 8.8

- stop plate, countersunk

4шт.

81

3132588R1

SPRING

- throttle shaft torsion

1шт.

82

3132589R1

SPRING

- control plunger torsion

1шт.

83

3059077R1

LEVER

- control plunger

1шт.

83

3059078R1

LEVER

- control plunger torsion

1шт.

84

3136143R1

SLEEVE

- throttle shaft, used with pump assembly 3218238R91

1шт.

85

3136142R1

O-RING

SEAL - ring, used with pump assembly 3218238R91

1шт.

86

3136134R1

LEVER

- throttle, used with pump assembly 4316281R91, no longer available

1шт.

86

3136135R1

LEVER

- throttle, used with pump assemblies 3218238R91, 3228169R92 and 3228168R92

1шт.

86

3136271R1

LEVER

- throttle, used with pump assembly 4316281R91

1шт.

87

3136262R1

THRUST WASHER

WASHER - distance, used with pump assemblies 3218238R91, 3228169R92 and 3228168R92

1шт.

88

3136260R1

SPRING

- torsion, used with pump assemblies 3218238R91, 3228169R92 and 3228168R92

1шт.

89

3136261R1

NUT

- used with pump assemblies 3218238R91, 3228169R92 and 3228168R92

1шт.

90

3079097R2

CAP

- protection, used with pump assemblies 3218238R91, 3228169R92 and 3228168R92

6шт.

91

3078942R1

PLATE

SEAL - closing

1шт.

199024A1

GASKET KIT

KIT - fuel injection pump gasket, Includes: Ref. 24, 27, 28, 32, 34, 64, 65 and 70 (Replaces kit 3078526R91)

1шт.
