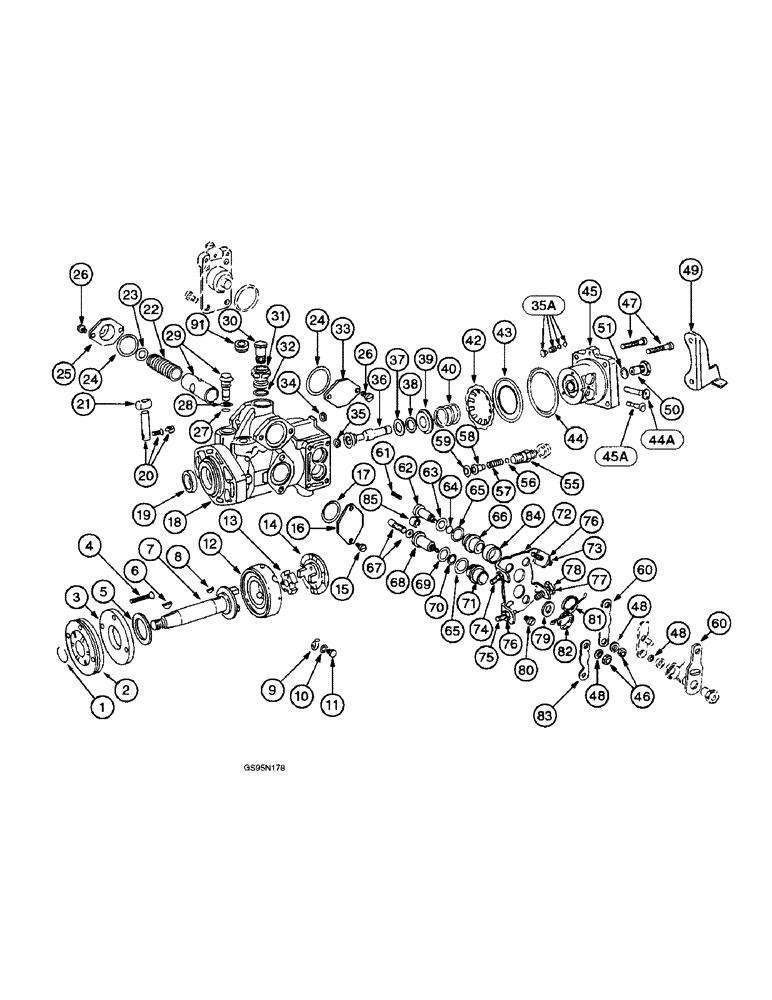

Запчасти Case IH D-358 (6-036) - FUEL INJECTION PUMP, 826 TRACTORS

735133C91

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured (North America only), no longer available, order pump assembly 3144287R91

1шт.

1934025C1

CORE-INJECTION PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

3144287R91

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, used with 826 tractors with hydrostatic transmission, model number EP/VA6/100H 1200CR21-4, Includes: Ref. 1 - 85

1шт.

1

3078474R1

RING

- retaining

1шт.

2

3078475R91

PUMP

- charge

1шт.

3

3078476R1

RING

- charge pump support

1шт.

4

3078477R1

BOLT,CSK

SCREW - retaining support ring

2шт.

5

3078479R1

THRUST WASHER

- roller retaining thrust

1шт.

6

3079101R1

WOODRUFF KEY

KEY - Woodruff, drive shaft (Replaces key 3078371R1)

1шт.

7

3078473R1

SHAFT

- drive

1шт.

8

3132395R1

KEY

- Woodruff, charging pump

1шт.

9

3132598R1

INDICATOR

POINTER - timing

1шт.

10

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER - lock, 4 mm

1шт.

11

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

- pan head

1шт.

12

3078550R91

PUMP

RING - roller retainer, no longer available

1шт.

13

3059007R1

DISC

- cross type cam face

1шт.

14

3078695R1

CAM

- face

1шт.

15

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

- machine, window cover

2шт.

16

3078486R1

COVER

- timing window

1шт.

17

3078485R1

RING

O-RING - window cover

1шт.

18

3078694R91

HOUSING

- pump

1шт.

19

3078355R2

OIL SEAL

- oil, drive shaft

1шт.

20

3078481R1

PIN

- automatic advance connecting

1шт.

21

3078482R1

SLIDE

R - advance piston

1шт.

22

3078573R1

SPRING

- advance piston

1шт.

23

3078528R1

THRUST WASHER

- thrust, 0.6 mm

1шт.

23

3078529R1

THRUST WASHER

- thrust, 0.8 mm

1шт.

23

3078530R1

THRUST WASHER

- thrust, 1.0 mm

1шт.

23

3078531R1

THRUST WASHER

- thrust, 1.2 mm

1шт.

23

3078532R1

THRUST WASHER

- thrust, 1.4 mm

1шт.

23

3078533R1

THRUST WASHER

- thrust, 3.0 mm

1шт.

24

3078488R1

RING

O-RING - advance housing

2шт.

25

3078489R1

COVER

PLATE - advance housing, right-hand

1шт.

26

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9, Advance housing plate (Replaces screw 931585R1)

4шт.

27

3078535R1

O-RING

- regulator valve

1шт.

28

3078358R1

O-RING

- regulator valve

1шт.

29

3078786R91

VALVE - regulator, no longer available

1шт.

30

3059086R1

BANJO BOLT

SCREW - hollow, inlet union

1шт.

31

3078484R1

VALVE

- overflow

1шт.

32

3078483R1

O-RING,2.5mm Thk x 15mm ID

- overflow valve, union adapter adjusting housing

1шт.

33

3078486R1

COVER

- timing window, advance housing left-hand

1шт.

34

684306C1

SCREW

O-RING - housing

1шт.

35

3078761R2

WASHER

- plunger, 1.80 mm

1шт.

35

3078763R2

WASHER

- plunger, 1.84 mm

1шт.

35

3078765R2

WASHER

- plunger, 1.88 mm

1шт.

35

3078767R2

WASHER

- plunger, 1.92 mm

1шт.

35

3078769R2

WASHER

- plunger, 1.96 mm

1шт.

35

3078771R2

WASHER

- plunger, 2.00 mm

1шт.

35

3078773R2

WASHER

- plunger, 2.04 mm

1шт.

35

3078775R2

WASHER

- plunger, 2.08 mm

1шт.

35

3078777R2

WASHER

- plunger, 2.12 mm

1шт.

35

3078779R2

WASHER

- plunger, 2.16 mm

1шт.

35

3078781R2

WASHER

- plunger, 2.20 mm

1шт.

35

3078783R2

WASHER

- plunger, 2.24 mm

1шт.

35

3078785R2

WASHER

- plunger, 2.28 mm

1шт.

35

3078787R2

WASHER

- plunger, 2.32 mm

1шт.

35

3078789R2

WASHER

- plunger, 2.36 mm

1шт.

35

3078791R2

WASHER

- plunger, 2.40 mm

1шт.

35

3078793R2

WASHER

- plunger, 2.44 mm

1шт.

35

3078795R2

WASHER

- plunger, 2.48 mm

1шт.

35

3078797R2

WASHER

- plunger, 2.52 mm, no longer available

1шт.

35

3078799R2

WASHER

- plunger, 2.56 mm

1шт.

35

3078801R2

WASHER

- plunger, 2.60 mm

1шт.

35

3078803R2

WASHER

- plunger, 2.64 mm, no longer available

1шт.

35

3078805R2

WASHER

- plunger, 2.68 mm

1шт.

35

3078807R2

WASHER

- plunger, 2.72 mm

1шт.

35

3078809R2

WASHER

- plunger, 2.76 mm

1шт.

35

3078811R2

WASHER

- plunger, 2.80 mm

1шт.

35

3078813R2

WASHER

- plunger, 2.84 mm

1шт.

35

3078815R2

WASHER

- plunger, 2.88 mm

1шт.

35a

3078365R91

KIT - relief valve, no longer available

1шт.

3078676R91

DISTRIBUTOR

HEAD ASSEMBLY - distributor, Includes: Ref. 36 - 45A

1шт.

36

NSS

NOT SOLD SEPARAT

VALVE - order head assembly 3078676R91

1шт.

37

3078540R1

WASHER

- plunger, 1.35 mm

1шт.

37

3078541R1

WASHER

- plunger, 1.60 mm

1шт.

37

3078542R1

WASHER

- plunger, 1.85 mm

1шт.

38

3078537R1

WASHER

- plunger, 1.65 mm

1шт.

38

3078571R1

WASHER

- plunger, 2.85 mm

1шт.

39

3078516R1

SEAT

- plunger spring

1шт.

40

3078515R1

SPRING

- plunger

1шт.

42

3078576R1

SPRING WASHER

- spring

1шт.

43

3078578R1

FILTER, FUEL

FILTER - fuel

1шт.

44

3078366R1

O-RING

- distributor head

1шт.

44a

NSS

NOT SOLD SEPARAT

VALVE - order head assembly 3078676R91

1шт.

45

NSS

NOT SOLD SEPARAT

HEAD - distributor, order head assembly 3078676R91

1шт.

45a

NSS

NOT SOLD SEPARAT

VALVE - order head assembly 3078676R91

1шт.

46

825-1406

NUT,M6, Cl 8

WASHER - hex, 6 mm - 1, throttle and control (Replaces washer 933988R1)

2шт.

47

3078600R1

SCREW

- pump to distributor head

4шт.

48

492-11006

LOCK WASHER,#6

Washer, Lock, , Throttle and control, (Replaces washer 933987R1) #6

2шт.

49

3078570R1

BRACKET

- injection pump

1шт.

50

3078514R1

PLUG

- distributor head

1шт.

51

3132407R1

O-RING

O-RING - distributor head plug, packing

1шт.

55

3059067R2

HYD CONNECTOR

HOLDER - delivery valve

3шт.

56

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

- special, delivery valve

3шт.

57

3132408R1

SPRING

- delivery valve

3шт.

58

3132879R1

VALVE

- delivery, no longer available

6шт.

59

3079378R1

WASHER

- delivery valve (Replaces washer 3078362R1)

3шт.

60

3136271R1

LEVER

- throttle (Replaces lever 3136270R1)

1шт.

61

3078555R1

SPRING

- throttle

1шт.

62

3078517R1

SHAFT

- throttle

1шт.

63

3078519R1

WASHER

- throttle shaft

1шт.

64

3078354R1

O-RING,2mm Thk x 6.5mm ID

- throttle shaft

1шт.

65

785602R1

O-RING

- control plunger and throttle

2шт.

66

3078556R1

BUSHING

- throttle shaft

1шт.

67

3078522R91

KIT

- control plunger

1шт.

68

3078521R1

SHAFT

- control plunger

1шт.

69

3078523R1

WASHER

- control plunger shaft

1шт.

70

3078363R1

O-RING

- control plunger shaft

1шт.

71

3078524R1

BUSHING

- control plunger shaft

1шт.

72

3078557R1

PLATE

- stop

1шт.

73

3132885R1

BOLT

- stop

1шт.

74

3136136R1

SCREW

- stop

1шт.

75

3059074R1

SCREW

- stop

1шт.

76

825-1406

NUT,M6, Cl 8

WASHER - hex, 6 mm - 1 (Replaces washer 933988R1)

3шт.

77

3079141R1

NUT

- hex (Replaces nuts 3059096R1 and 3079120R1)

1шт.

78

3132251R1

STOP LOCK

SCREW - stop

1шт.

79

3059076R1

WASHER

- plunger shaft control

1шт.

80

931320R1

SCREW,M6 x 12mm, Cl 8.8

- stop plate, countersunk

4шт.

81

3132588R1

SPRING

- throttle shaft torsion

1шт.

82

3132589R1

SPRING

- control plunger torsion

1шт.

83

3059077R1

LEVER

- control plunger

1шт.

83

3059078R1

LEVER

- control plunger

1шт.

84

3136143R1

SLEEVE

- throttle shaft

1шт.

85

3136142R1

O-RING

SEAL - ring

1шт.
