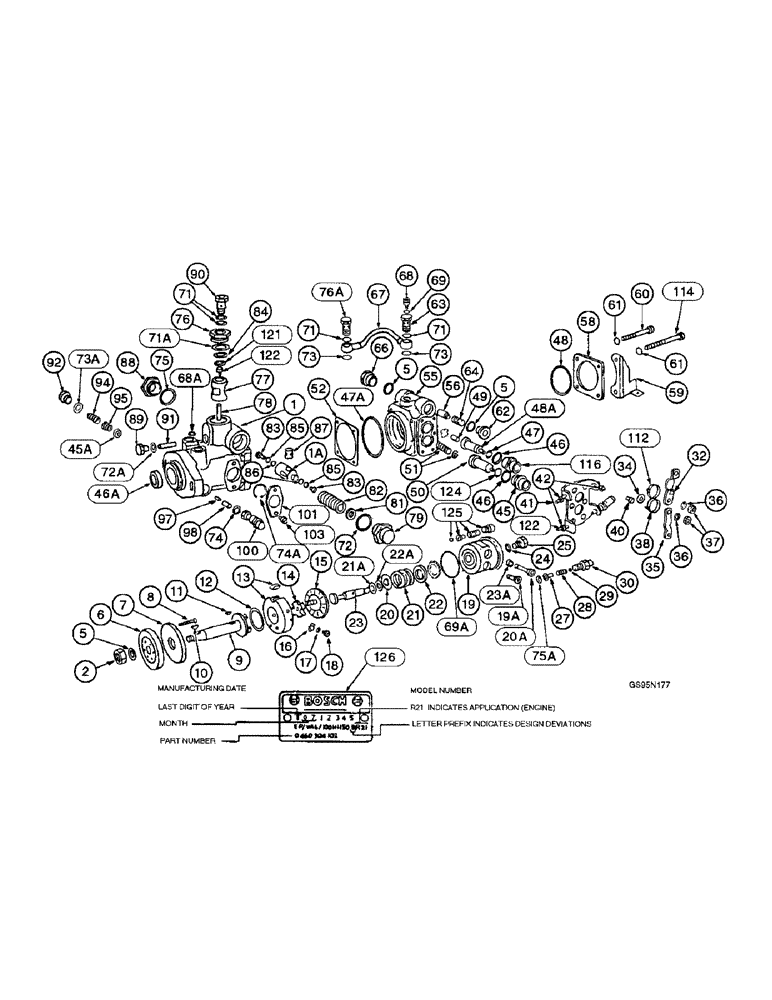

Запчасти Case IH D-358 (6-028) - FUEL INJECTION PUMP, 2826 TRACTORS

3136376R92

PUMP

ASSEMBLY - fuel injection, Bosch no. EP/VA6/100H 1200 BR21-1, Includes: Hardware Listed Below & Ref. 1 - 126

1шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC (Replaces nut 102634)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 3050129R1) 5/16"

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

2шт.

1

3136259R91

HOUSING

ASSEMBLY - pump, no longer available, Includes: Ref. 1A

1шт.

1a

NSS

NOT SOLD SEPARAT

PISTON - timing advance, order housing assembly 313625R91

1шт.

2

933981R1

NUT,M12 x 1.75, Cl 5

Drive shaft (Replaces nut 933393R1) M12 x 1.75, Cl 5

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 3050128R1) 1/2"

1шт.

6

3059003R91

PUMP

ROTOR - charging pump

1шт.

7

3059004R1

SUPPORT

RING - retainer support, no longer available

1шт.

8

3132364R1

SCREW

- retainer support ring

4шт.

9

3059001R1

SHAFT

- drive, no longer available

1шт.

10

836-3065

WOODRUFF KEY,M3 x 6.5

KEY - drive shaft, plain Woodruff (Replaces key 3054301R1)

1шт.

11

3132395R1

KEY

- Woodruff, drive shaft rear

1шт.

12

3059006R1

WASHER

- drive shaft thrust

1шт.

13

3078345R91

INJECTION PIPE

RING - roller retainer (Replaces ring 3132967R91)

1шт.

14

3059007R1

DISC

- cross type cam face, drive shaft flexible

1шт.

15

3132799R2

CAM

- face, no longer available

1шт.

16

3132598R1

INDICATOR

POINTER - timing

1шт.

17

933962R1

WASHER

- timing pointer, no longer available

1шт.

18

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

- timing pointer (Replaces screw 931210R1)

1шт.

3078546R91

DISTRIBUTOR HEAD

HEAD ASSEMBLY - distributor, Includes: Ref. 19 - 23A

1шт.

19

NSS

NOT SOLD SEPARAT

HEAD - distributor, order head assembly 3078546R91

1шт.

19a

NSS

NOT SOLD SEPARAT

VALVE - order head assembly 3078546R91

1шт.

20

3136092R1

SEAT

- plunger return spring front, 0.197 inch

1шт.

20

3136093R1

SEAT

- plunger return spring front, 0.205 inch

1шт.

20

3136094R1

CUP

SEAT - plunger return spring front, 0.213 inch

1шт.

20

3136095R1

SEAT

- plunger return spring front, 0.220 inch

1шт.

20

3136096R1

SEAT

- plunger return spring front, 0.228 inch, no longer available

1шт.

20

3136097R1

SEAT

- plunger return spring front, 0.236 inch, no longer available

1шт.

20

3136394R1

SEAT

- plunger return spring front, 0.244 inch

1шт.

20a

NSS

NOT SOLD SEPARAT

VALVE - order head assembly 3078546R91

1шт.

21

3132257R1

SPRING

- plunger return

1шт.

21a

3136090R1

SPACER

SHIM - pump plunger

1шт.

22

3136098R1

SEAT

- spring plunger

1шт.

22a

3136091R2

WASHER

SHIM - pump plunger

1шт.

23

NSS

NOT SOLD SEPARAT

VALVE - order head assembly 3078546R91

1шт.

23a

NSS

NOT SOLD SEPARAT

VALVE - order head assembly 3078546R91

1шт.

24

3132407R1

O-RING

O-RING - plug, pump plunger

1шт.

25

3059063R2

PLUG

- pump plunger, no longer available

1шт.

27

3133781R1

VALVE

- delivery, no longer available

6шт.

28

3132408R1

SPRING

- delivery valve

6шт.

29

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

- special, delivery valve

6шт.

30

3059067R2

HYD CONNECTOR

HOLDER - delivery valve

6шт.

31

3132380R1

LEVER

- throttle, not shown, no longer available

1шт.

32

3059080R1

PLATE - throttle lever, no longer available

1шт.

33

3059081R1

BOLT,M4 x 8.8mm

SCREW - throttle lever, not shown, no longer available

1шт.

492-11008

LOCK WASHER,#8

Washer, Lock, (Replaces washer 106496) #8

1шт.

34

3059076R1

WASHER

- control plunger shaft

1шт.

35

3059077R1

LEVER

- control plunger

1шт.

35

3059078R1

LEVER

- control plunger

1шт.

36

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

2шт.

37

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10, Shut-off control (Replaces nut 30208R1)

2шт.

38

3132589R1

SPRING

- control plunger torsion

1шт.

39

3136110R1

PLATE

- stop, not shown, no longer available

1шт.

40

931320R1

SCREW,M6 x 12mm, Cl 8.8

- stop plate (Replaces screw 931140R1)

1шт.

41

3136136R1

SCREW

- stop

1шт.

42

30208R1

NUT,M6, Cl 10

- stop screw (Replaces nut 933064R1)

3шт.

43

3132251R1

STOP LOCK

SCREW - stop, not shown

1шт.

44

3079141R1

NUT

- hex, stop screw, not shown (Replaces nut 3059096R1 and 3079120R1)

1шт.

45

3059072R1

BUSHING

- control plunger shaft, no longer available

1шт.

3059094R93

GASKET KIT

KIT - gasket, interior, Includes: Ref. 45A - 48

1шт.

45a

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059094R93

1шт.

46

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059094R93

1шт.

46a

3078355R2

OIL SEAL

- oil, drive shaft

1шт.

47

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059094R93

1шт.

47a

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059094R93

1шт.

48

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059094R93

1шт.

48a

3132258R2

SHAFT

- throttle

1шт.

49

3132256R1

VALVE SPRING

SPRING - throttle, no longer available

1шт.

50

3078521R1

SHAFT

- control plunger (Replaces shaft 3132260R2)

1шт.

51

3134027R91

PACKAGE

KIT - control plunger spring

1шт.

52

3059040R1

SHIM

- intermediate housing, 0.008 inch

1шт.

52

3132377R1

SHIM

- intermediate housing, 0.009 inch

1шт.

52

3059041R1

SHIM

- intermediate housing, 0.010 inch

1шт.

52

3132378R1

SHIM

- intermediate housing, 0.011 inch, no longer available

1шт.

52

3059042R1

DISC

SHIM - intermediate housing, 0.012 inch

1шт.

52

3059043R1

SHIM

- intermediate housing, 0.020 inch

1шт.

52

3059044R1

SHIM

- intermediate housing, 0.024 inch

1шт.

52

3059045R1

SHIM

- intermediate housing, 0.039 inch

1шт.

3132376R91

HOUSING

ASSEMBLY - intermediate, Includes: Ref. 55 & 56

1шт.

55

NSS

NOT SOLD SEPARAT

HOUSING - intermediate, order housing assembly 3132376R91

1шт.

56

NSS

NOT SOLD SEPARAT

PISTON - accumulator, order housing assembly 3132376R91

1шт.

58

3059083R1

FLANGE - intermediate housing, no longer available

1шт.

59

3078570R1

BRACKET

- injection pump (Replaces bracket 3132247R1)

1шт.

60

3132249R1

SCREW

- intermediate housing mounting, 6 mm x 70 mm, no longer available

2шт.

61

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

4шт.

62

3136107R1

PLUG

- accumulator spring, no longer available

1шт.

63

3136149R1

SCREW

- inlet union

1шт.

64

3132277R1

SPRING

- accumulator, no longer available

1шт.

66

3059052R1

PLUG

- accumulator piston, no longer available

1шт.

67

3059085R91

TUBE

- fuel supply

1шт.

68

3132383R1

SCREW

- vent

1шт.

3059093R91

SEAL

KIT - gasket, exterior, Includes: Ref. 68A - 75A

1шт.

68a

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059093R91

1шт.

69

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059093R91

1шт.

69a

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059093R91

1шт.

70

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059093R91

1шт.

70a

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059093R91

1шт.

71

NSS

NOT SOLD SEPARAT

O-RING - order kit 3059093R91

4шт.

71a

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059093R91

1шт.

72

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059093R91

1шт.

72a

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059093R91

1шт.

73

NSS

NOT SOLD SEPARAT

O-RING - order kit 3059093R91

2шт.

73a

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059093R91

1шт.

74

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059093R91

1шт.

74a

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059093R91

1шт.

75

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059093R91

1шт.

75a

NSS

NOT SOLD SEPARAT

SEAL - order kit 3059093R91

1шт.

76

3059014R1

UNION

- adapter advance housing, no longer available

1шт.

76a

3059086R1

BANJO BOLT

SCREW - hollow, housing inlet union

1шт.

77

3132960R1

PIN

MEMBER - adjusting automatic

1шт.

78

3059010R1

PIN

- connecting

1шт.

79

3136126R1

PLUG

- advance housing, left-hand

1шт.

81

3136111R1

WASHER

SHIM - advance piston spring, 0.039 inch

1шт.

81

790783R1

WASHER

SHIM - advance piston spring, 0.020 inch, no longer available

1шт.

82

3136085R1

SPRING

- advance piston, no longer available

1шт.

83

931110R1

SCREW,Slot Cheese , M5 x 0.8 x 8mm, Cl 4.8

- advance piston stop

2шт.

84

800-2120

SNAP RING,M20, Int

RING - retaining, 21 mm OD (Replaces ring 933845R1)

1шт.

85

492-11012

LOCK WASHER,#12

WASHER, LOCK, (Replaces washer 106498) #12

2шт.

86

3132290R91

PACKAGE

KIT - shim service, no longer available

1шт.

87

3132259R1

SLIDE

BUSHING - advance piston

1шт.

88

3059020R1

PLUG

- advance housing, right-hand, no longer available

1шт.

89

3132578R1

PLUG

- advance housing, front

1шт.

90

3132412R1

VALVE

- overflow

1шт.

91

3132961R1

PIN

- connecting control screw

1шт.

92

3059038R1

PLUG

- regulator valve spring

1шт.

94

3132280R1

SPRING

- regulator valve, no longer available

1шт.

95

3132246R1

STOP

- regulator piston, no longer available

1шт.

97

3132366R1

PISTON

- charging pump regulator, 0.342 inch, no longer available

1шт.

97

3132367R1

PISTON

- charging pump regulator, 0.344 inch

1шт.

97

3132368R1

PISTON

- charging pump regulator, 0.347 inch

1шт.

97

3059026R1

PISTON - charging pump regulator, 0.348 inch, no longer available

1шт.

97

3059027R1

PISTON - charging pump regulator, 0.350 inch, no longer available

1шт.

97

3059028R1

PISTON - charging pump regulator, 0.352 inch, no longer available

1шт.

97

3059029R1

PISTON - charging pump regulator, 0.354 inch, no longer available

1шт.

97

3059030R1

PISTON - charging pump regulator, 0.356 inch, no longer available

1шт.

97

3059031R1

PISTON - charging pump regulator, 0.358 inch, no longer available

1шт.

97

3059032R1

PISTON - charging pump regulator, 0.360 inch, no longer available

1шт.

97

3059033R1

PISTON - charging pump regulator, 0.362 inch, no longer available

1шт.

97

3059034R1

PISTON

- charging pump regulator, 0.364 inch, no longer available

1шт.

97

3132369R1

PISTON

- charging pump regulator, 0.366 inch

1шт.

97

3132237R1

SPRING

PISTON - charging pump regulator, 0.368 inch, no longer available

1шт.

97

3132371R1

PISTON

- charging pump regulator, 0.370 inch

1шт.

97

3132373R1

PISTON

- charging pump regulator, 0.374 inch, no longer available

1шт.

97

3132374R1

PISTON

- charging pump regulator, 0.376 inch, no longer available

1шт.

97

3132375R1

PISTON

- charging pump regulator, 0.378 inch, no longer available

1шт.

98

3132255R1

SPRING

- regulator piston

1шт.

100

3059099R91

VALVE

CARRIER - regulator valve

1шт.

101

3059091R1

PLATE

COVER - timing window

1шт.

103

684858C1

SCREW

- timing window cover (Replaces screw 931209R1)

2шт.

112

3132588R1

SPRING

- throttle shaft torsion, throttle shaft

1шт.

114

3132250R1

SCREW

- intermediate housing mounting, 6 mm x 75 mm

2шт.

116

3059072R1

BUSHING

- control plunger shaft

1шт.

120

3132883R1

PLUG

PIN - advance piston, not shown, no longer available

1шт.

121

3132884R1

WASHER

- advance piston

1шт.

122

3059074R1

SCREW

- stop

2шт.

123

3132885R1

BOLT

- stop, not shown

1шт.

124

3078363R1

O-RING

- control plunger shaft

1шт.

125

3078365R91

KIT - relief valve, no longer available

1шт.

126

3136147R1

NAMEPLATE - fuel injection pump, no longer available

1шт.
