Запчасти Case IH D-358 (6-026) - SERVICE KITS

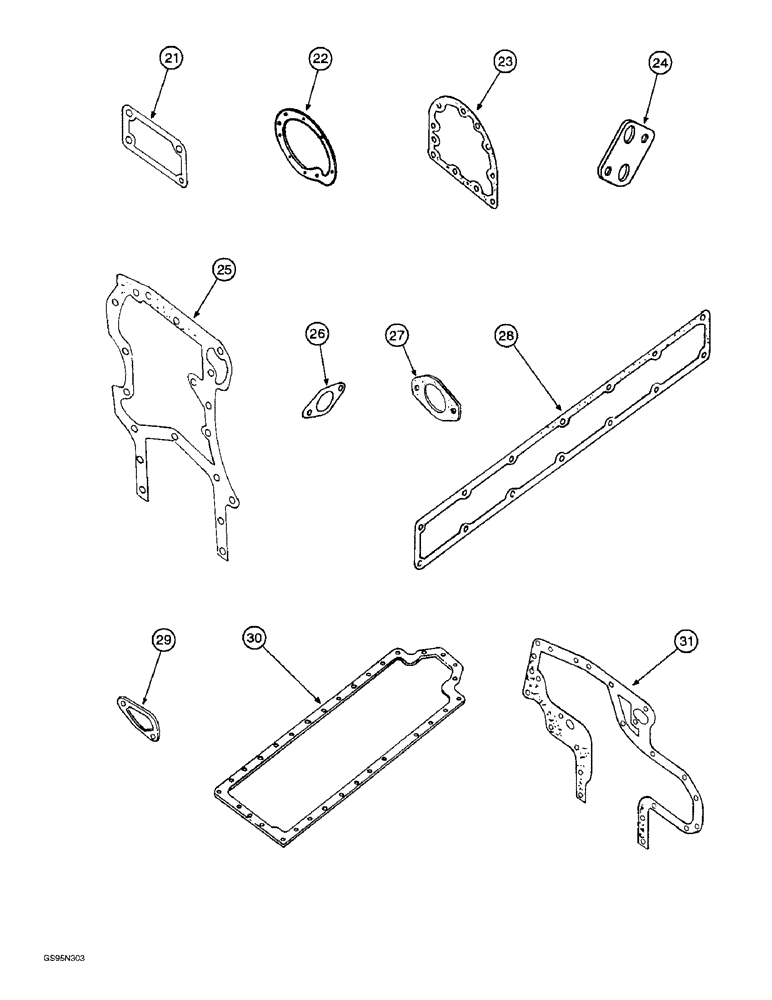

Схема запчастей Case IH D-358 - (6-026) - SERVICE KITS
21
29
31
24
23
25
28
27
30
22
26

Артикул

Название

Примечание

Количество

3228432R92

GASKET

KIT - crankcase gasket, used with 786 and 886 tractors, 1420 combines, Includes: All Parts Listed Below

1шт.

41-3044

PLUG,Exp, 2 3/4"

1шт.

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing M14 x 18 x 1.5

1шт.

E135042

SEALING RING

RING - sealing (Replaces ring 713845R1)

3шт.

713778R1

O-RING,3mm Thk x 55mm ID

- crankcase

1шт.

714868R1

SEALING STRIP

- sealing

2шт.

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

- Packing M10 x 13.5 x 1

2шт.

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, M26 x 31 x 2

9шт.

933610R1

SEALING RING,M14 x 18 x 1.8

10шт.

3138687R1

RING

- packing

2шт.

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

SEAL - radial

1шт.

21

3138640R1

GASKET

- injection pump cover

1шт.

22

3055177R3

GASKET

- water pump

1шт.

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

- oil pump sealing

3шт.

23

3055215R3

GASKET

- crankshaft seal retainer

1шт.

24

3055237R2

GASKET

- oil filter socket

1шт.

25

3055239R4

GASKET

- crankshaft front cover plate

1шт.

26

3138639R1

GASKET

- breather

1шт.

27

3055384R2

GASKET

- fuel injection pump

1шт.

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

28

3055392R3

GASKET,1.5mm Thk

- cover, side

1шт.

3138687R1

RING

- packing (Replaces ring 3136506R1)

1шт.

29

3055143R2

GASKET

- hydraulic pump cover

1шт.

3144042R2

GASKET

- hydraulic pump cover

1шт.

30

3055162R2

GASKET

- oil pan

1шт.

30

3055240R2

GASKET

- crankcase front cover

1шт.

31

3144072R4

GASKET

- crankcase front cover

1шт.

3055246R2

GASKET

- water channel

1шт.

3055318R2

GASKET

- tube oil filler

1шт.

3055389R2

O-RING,2.5mm Thk x 32mm ID, 70 Duro

- sealing

1шт.

3132869R1

O-RING

- sealing

1шт.

3136766R3

GASKET

- water channel

1шт.

3218792R3

GASKET

- oil filler pipe

1шт.

3146575R1

NUT

- hex seal

1шт.

NSS

NOT SOLD SEPARAT

GASKET - cover, order kit 3228432R92

1шт.

Выбрано товаров: 35
