Запчасти Case IH D-358 (6-024) - SERVICE KITS

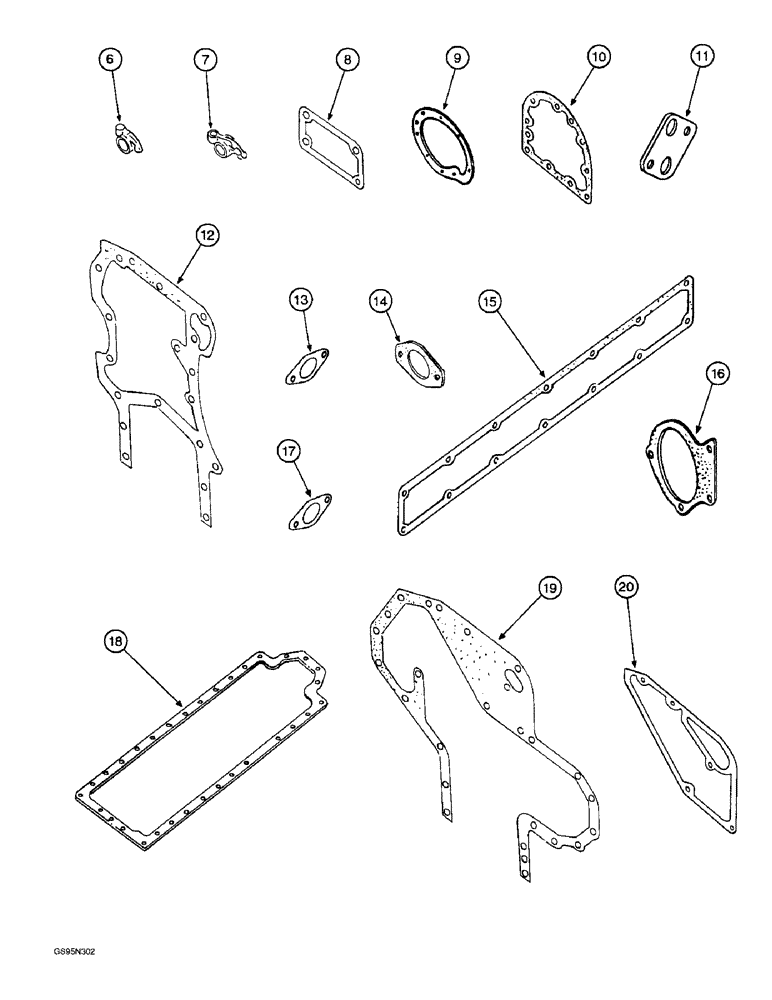

Схема запчастей Case IH D-358 - (6-024) - SERVICE KITS
12
16
11
15
18
8
19
14
10
17
13
7
20
9
6

Артикул

Название

Примечание

Количество

3228133R93

SEAL KIT

KIT - service, crankshaft front oil seal (Replaces kit 3136724R94), Includes: Parts Listed Below

1шт.

NSS

NOT SOLD SEPARAT

RING - crankshaft oil seal, order kit 3228133R93

1шт.

NSS

NOT SOLD SEPARAT

SEAL - crankshaft oil, order kit 3228133R93

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Pin, Included in kit 3228133R93 M4 x 24, Oval

1шт.

932224R1

DOWEL,M4 x 32, Oval

PIN - dowel, 4 x 32 mm, Included in kit 3228133R93

1шт.

932652R1

DOWEL,4mm OD x 28mm L

PIN - dowel, 4 x 28 mm, included in kit 3228133R93

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

- crankshaft front, included in kit 3228133R93

1шт.

3132293R92

ROCKER

KIT - exhaust rocker arm, Includes: Parts Listed Below

1шт.

6

NSS

NOT SOLD SEPARAT

ARM - exhaust rocker, order kit 3132293R92

1шт.

3132137R1

ADJUSTMENT SCREW

Rocker arm, Included in kit 3132293R92

1шт.

3132292R92

ROCKER

KIT - intake rocker arm, Includes: Parts Listed Below

1шт.

7

NSS

NOT SOLD SEPARAT

ARM - intake rocker, order kit 3132292R92

1шт.

3132137R1

ADJUSTMENT SCREW

Rocker arm, Included in kit 3132292R92

1шт.

1967012C1

GASKET KIT

KIT - crankcase gasket, used with 826 and 2826 tractors, 1400 cotton harvesters, 3088 and 3288 tractors (Replaces kit 3136815R99), Includes: Parts Listed Below

1шт.

3058431R1

COPPER WASHER

RING - packing, relief valve plug, included in kit 1967012C1

1шт.

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Included in kit 1967012C1 -210, 70 Duro, .734" ID x .139" Thk

2шт.

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing, Included in kit 1967012C1 M14 x 18 x 1.5

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

- crankcase, included in kit 1967012C1

1шт.

E135042

SEALING RING

RING - packing (Replaces ring 713845R1), included in kit 1967012C1

3шт.

714868R1

SEALING STRIP

- sealing, included in kit 1967012C1

2шт.

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

- Packing, Included in kit 1967012C1 M10 x 13.5 x 1

2шт.

41-3044

PLUG,Exp, 2 3/4"

Included in Kit 1967012C1 Exp, 2 3/4"

1шт.

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, M26 x 31 x 2

2шт.

933610R1

SEALING RING,M14 x 18 x 1.8

4шт.

3138687R1

RING

- packing

2шт.

3052295R91

SEAL,6mm ID x 16mm OD x 7mm Thk

SEAL - radial

1шт.

3228348R1

RING,4.75mm Thk x 109.16mm ID

- cylinder sleeve

6шт.

REF 7 - FOR PART #'S 3228344R1 AND 322834R1 PRIOR TO 1979. WAS INCLUDED IN KIT 3136815R99 BUT NOT THE NEWER 1967012C1.3228344R1 AND 3228348R1 WERE REMOVED FROM ALL CRANKCASE GASKET KITS IN 1980. JC CAM 02/26/01

1шт.

3228344R1

SEALING RING,5mm Thk x 110mm ID

RING - cylinder sleeve

6шт.

REF 7 - FOR PART #'S 3228344R1 AND 322834R1 PRIOR TO 1979. WAS INCLUDED IN KIT 3136815R99 BUT NOT THE NEWER 1967012C1.3228344R1 AND 3228348R1 WERE REMOVED FROM ALL CRANKCASE GASKET KITS IN 1980. JC CAM 02/26/01

1шт.

8

3138640R1

GASKET

- injection pump cover

1шт.

9

3055177R3

GASKET

- water pump

1шт.

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

- oil pump sealing

9шт.

10

3055215R3

GASKET

- crankshaft seal retainer

1шт.

11

3055237R2

GASKET

- oil filter socket

1шт.

12

3055239R4

GASKET

- crankcase front cover plate

1шт.

13

3138639R1

GASKET

- breather

1шт.

14

3055384R2

GASKET

- fuel injection pump

1шт.

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

15

3055392R3

GASKET,1.5mm Thk

- cover, side

1шт.

3055952R2

O-RING

RING - oil pump sealing, loop

2шт.

16

3055961R2

GASKET

- oil pump

1шт.

17

3218792R3

GASKET

- socket oil filling

1шт.

18

3055987R3

OIL PAN GASKET SET,1.5mm Thk

- oil pan

1шт.

18

3055162R2

GASKET

- oil pan

1шт.

19

3055994R3

GASKET

- front cover

1шт.

20

3055999R3

GASKET

- water pump carrier

1шт.

829-1410

NUT,M10 x 1.5, Cl 10.9

Adjusting, Screw (Replaces nut 3132138R1), Included in Kit 3132293R92 M10, Cl 10

1шт.

829-1410

NUT,M10 x 1.5, Cl 10.9

Adjusting, Screw (Replaces nut 3132138R1), Included in Kit 3132292R92 M10, Cl 10

1шт.

Выбрано товаров: 49
